Description
Technical Specifications

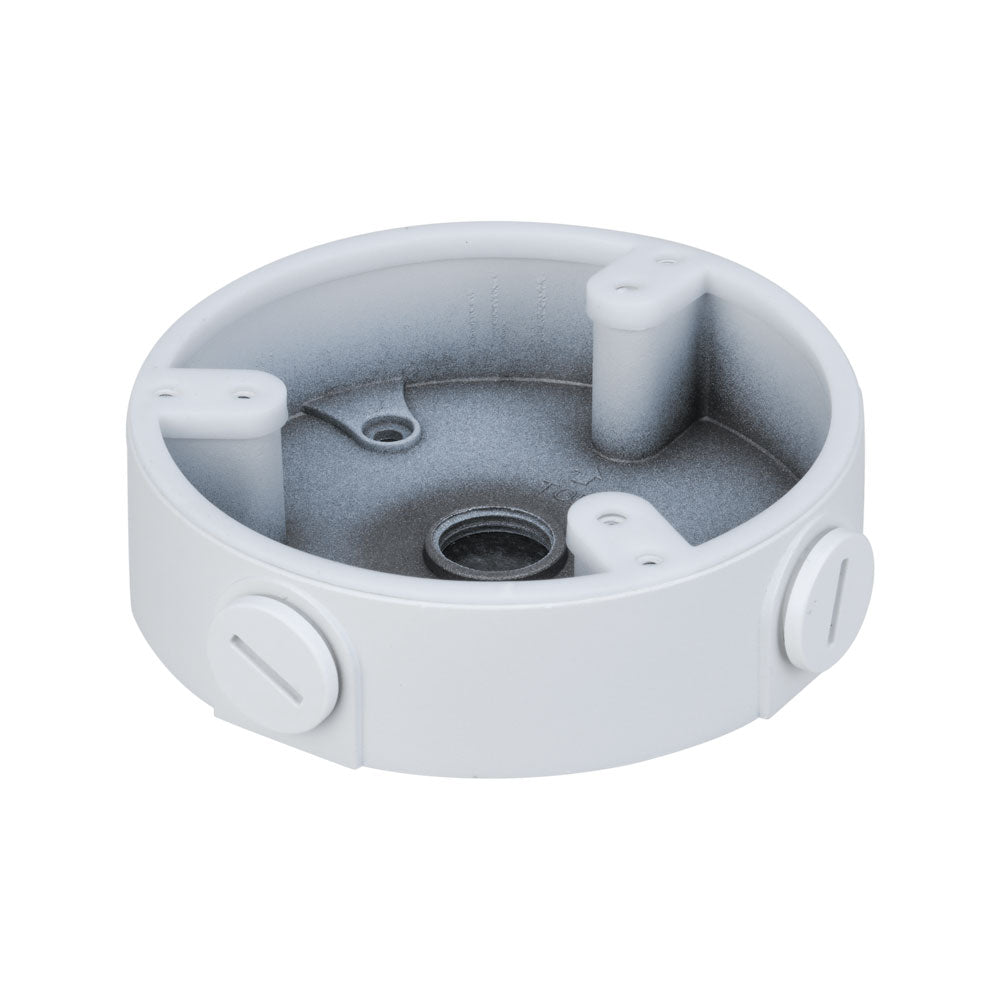

- Dahua Junction Box
- Thread: G1/2
- Maximum load supported: 1 kg
- Junction box type installation
Environment
- Operating temperature: -40 °C to +60 °C
- Operating humidity: <90% (RH)
- Storage temperature: -40 °C to +60 °C
- Storage humidity: 10%-90% (RH)
- Corrosion level: basic protection
Physical Characteristics
- Aluminum alloy
- Color: white
- Dimensions: Φ123.6 mm × 34.2 mm
- Net weight: 0.23 kg
- Gross weight: 0.31 kg
Contents
- Junction box DAHUA-561N (DH-PFA137)
- ST4×25 screws (x3)
- Plastic plugs (x3)
- M4×10 screws (x3)
- S3.0 wrench (x1)
- Waterproof cable gland (x1)
