Description
Technical Specifications

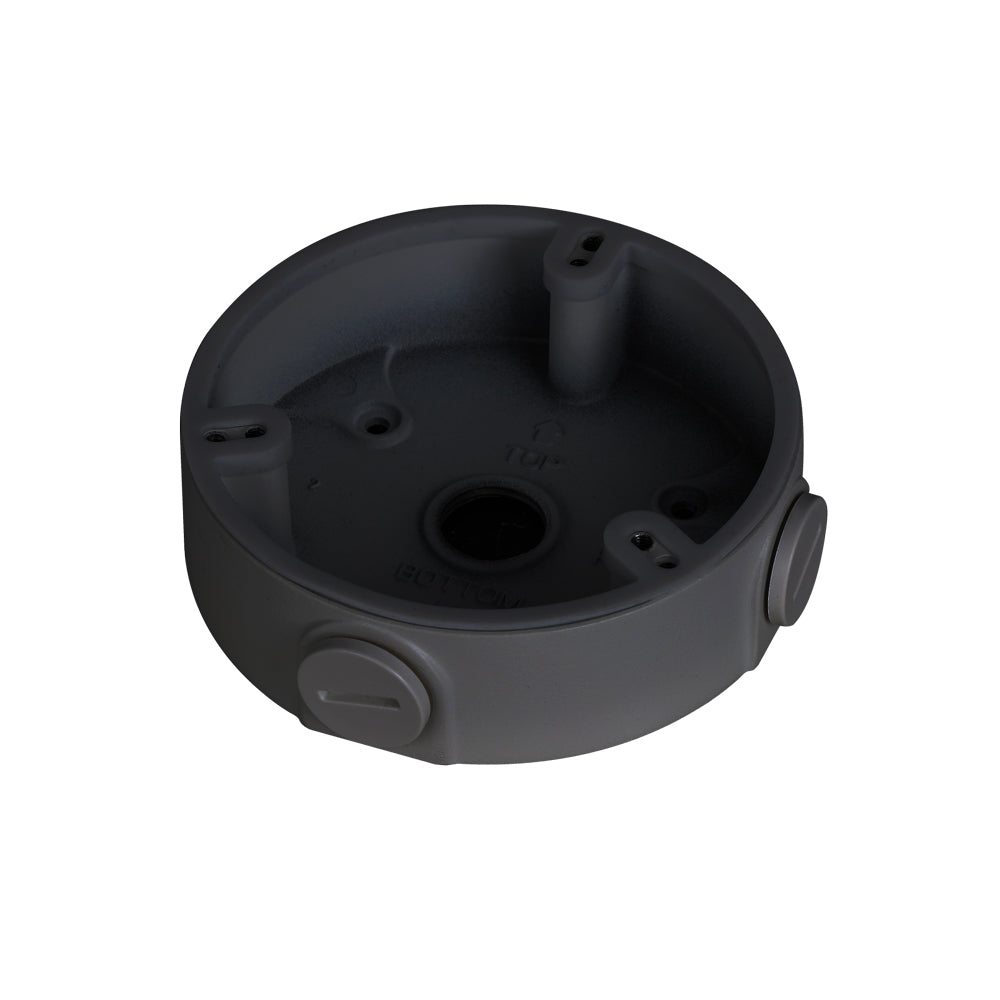

- Dahua Junction Box
- Thread: G1/2
- Maximum load supported: 1 kg
- Junction box installation
Environment
- Operating temperature: -40 °C to +60 °C
- Operating humidity: <90% (RH)
- Storage temperature: -40 °C to +60 °C
- Storage humidity: 10%-90% (RH)
- Corrosion level: basic protection
Physical Characteristics
- Aluminum alloy
- Color: black
- Dimensions: Φ114.8 mm × 32.0 mm
- Net weight: 0.19 kg
- Gross weight: 0.26 kg
Contents
- Junction box DAHUA-560BN (DH-PFA136-B)
- M4×10 screws (x3)
- ST4×25 screws (x3)
- Plastic plugs (x3)
- S3.0 wrench (x1)
- Waterproof cable gland (x1)
