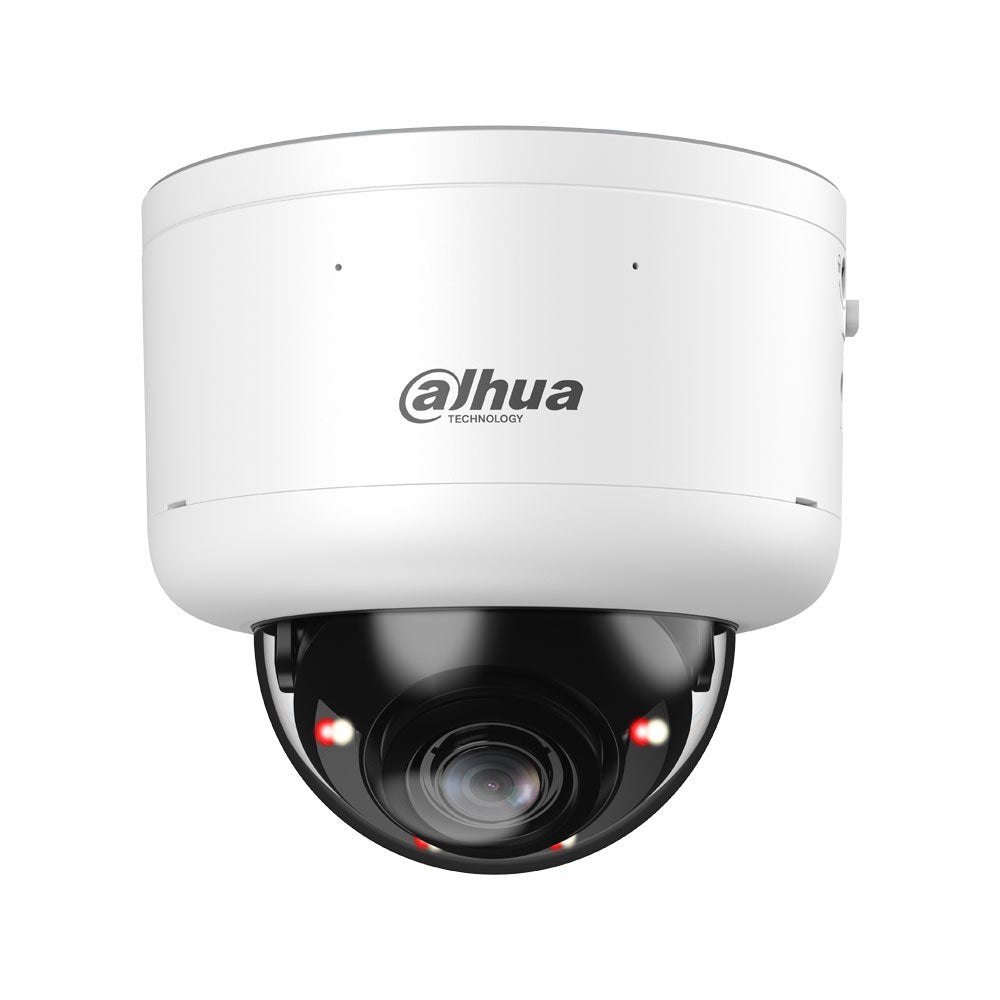

- Dahua WizMind 5 Series 4MP IP Mini-Dome with WizColor Technology
- 1/1.8 inch 4 MP CMOS sensor
- Maximum resolution of 4 MP (2688 × 1520)
- 4GB ROM and 2GB RAM
- Automatic day/night mode with removable mechanical ICR filter, color and black and white
- Sensitivity of 0.0005 lux F1.6 in color and 0.0003 lux F1.6 in black and white
- Multicore illumination with infrared up to 80m and warm light up to 60m
- Motorized varifocal optics from 8 to 32 mm
- Maximum aperture F1.6 and automatic P-Iris control
- Horizontal field angle from 41° to 16°, vertical from 23° to 9° and diagonal from 48° to 18°
- Minimum focus distance of 1.5 m
Video
- H.265, H.264, H.264H, H.264B and MJPEG compression
- AI H.265, AI H.264, Smart H.265+ and Smart H.264+ encoding
- 4 video stream capability
- Stream 1: 4 MP at 25/30 frames per second or 1080p at 50/60 frames per second
- Stream 2: D1 at 25/30 fps
- Stream 3: 1080p at 25/30 fps
- Stream 4: 720p at 25/30 fps
- CBR and VBR bitrate control from 3 Kbps to 16384 Kbps
Features
- WizColor technology with AI-ISP to get color images in low light conditions
- Smart Dual Light with automatic, manual or zoom-linked adjustment
- 140 dB WDR, BLC, HLC, 3D noise reduction and automatic scene adaptation (SSA)
- Electronic Image Stabilization (EIS) and Defog function
- 4 regions of interest (ROI) and up to 8 privacy zones
- Glass heating to remove water, ice, snow and condensation
- Active deterrence by fixed or flashing warm light and sound alerts
- 11 integrated sound alerts and possibility to import 10 custom alerts
Smart Functions
- Xinghan large-scale AI vision models with self-learning and false alarm filtering
- AI Rule Assist for automatic IVS rule creation
- AcuPick to locate people, animals and vehicles in live or recorded videos
- SMD 4.0
- Perimeter protection with intrusion, line crossing, rapid movement, loitering, crowd gathering, parking and prolonged parking detection
- Classification and detection of people, animals, vehicles and other targets
- Facial detection with capture, optimization and attribute extraction
- People counting by line crossing, by area and queue management
- Heat map
- Metadata related to vehicles, non-motorized vehicles, faces and human bodies
- Smart detection of abandoned and missing objects
- Smart search with a compatible NVR
Positioner
- Motorized and remote PTRZ adjustment for easy installation and configuration
- Supports up to 1,000 remote adjustment cycles
Audio
- Dual built-in microphone
- Built-in speaker
- Two-way audio
- 1 audio input / 1 audio output via RCA connectors
- G.711a, G.711Mu, PCM, G.726 and G.723 compression
Storage
- MicroSD card slot up to 1 TB (card not included)
- Storage via FTP, SFTP and NAS
Alarms
- 2 alarm inputs / 2 alarm outputs
- Events related to video tampering, network disconnection, IP address conflict, unauthorized access, scene change and blurring
- Events related to analysis, audio detection, voltage anomalies and MicroSD card storage
Communication Interface
- 1 RS-485 interface with a data rate of 1,200 to 115,200 bps
Network
- 1 RJ45 10/100 Base-T Ethernet port
- IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, SNMP, P2P and auto-registration protocols, among others
- Compatible with ONVIF S, G, T and M profiles, as well as CGI
- SDK and API available
- Up to 20 users with a total bandwidth of 80 Mbps
- Management via DSS, DMSS and DoLynk Care
- Compatible with iOS and Android devices
Power
- 12 V DC power supply with ±30% tolerance
- PoE+ IEEE 802.3at and ePoE power supply
- Switching between 12 V DC and PoE power without restarting the device
- 1 power output of 12 V DC and 165 mA, with a peak of 700 mA
- Base consumption of 5.3 W at 12 V DC and 6.4 W via PoE
- Maximum consumption of 21.3 W at 12 V DC and 24.2 W via PoE
Environmental Conditions
- Operating and storage temperature: -40 °C to +60 °C
- Relative humidity up to 95% non-condensing
- IP67 protection rating
- IK10 vandal protection
- Basic anti-corrosion protection
Physical Characteristics
- Metal casing
- 3 axes: 0°~355° PAN, 0°~80° TILT and 0°~355° rotation
- Dimensions: 150 × Ø 159 mm
- Net weight: 1.4 kg
- Gross weight: 1.9 kg
Contents
- Dahua DAHUA-5533 IP Mini-Dome (DH-IPC-HDBW5459ZP-ZHE-PV-0832-PRO)
Certifications and standards
- CE-LVD compliant with EN 62368-1
- CE-CEM compliant with directive 2014/30/EU on electromagnetic compatibility
