Description
Technical Features
- 1/2.7-inch CMOS sensor
- Dual 2x4 MP sensor with 180° panoramic image
- Maximum resolution of 8 MP (4320 × 1944)
- Automatic day/night mode (ICR), color and B/W
- Minimum illumination of 0.003 lux@F1.4 in color, 30 IRE
- Minimum illumination of 0.0003 lux@F1.4 in B/W, 30 IRE
- 0 lux with illumination on
- Smart Dual Light with IR up to 30 m and warm light up to 30 m
- 4 multi-core IR lamps and warm light
- Automatic and manual lighting control
- 2.8 mm fixed optic with M12 mount
- Maximum aperture F1.4
- Field of view H: 180°; V: 72°
- Fixed iris
- Minimum focus distance of 0.8 m
Video Stream
- Video compression H.265, H.264, H.264H, H.264B, and MJPEG in substream
- AI H.264 and AI H.265 encoding
- Smart H.264+ and Smart H.265+
- 3-stream capability
- Main stream: 4320 × 1944 at 1-20 ips
- Substream: 1200 × 536 at 1-20 ips
- Third stream: 1920 × 860 at 1-20 frames per second
- Resolutions 8 MP, 1920 × 860, 1200 × 536, 960 × 432, and D1
- VBR, CBR, and ABR bitrate control
- H.264 bitrate from 6 kbps to 16384 kbps
- H.265 bitrate from 6 kbps to 16384 kbps
Features
- BLC, HLC, and true 120 dB WDR
- 3D NR noise reduction
- Automatic scene adaptation SSA
- Automatic, natural, street light, outdoor, manual, and regional customized white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RoI with 4 zones
- Smart Illumination
- Smart Dual Light
- Defogging
- Privacy mask with 8 zones
- Digital watermark
- One-touch activation and deactivation
Smart Functions
- Xinghan Vision large-scale AI models
- IVS perimeter protection with intrusion and tripwire detection, with vehicle and human classification
- Presence and loitering detection
- SMD 4.0
- AcuPick for searching and locating people, animals, and motor vehicles in live and recorded videos
- Full-frame facial detection with capture, capture optimization, facial exposure, and upload of optimal facial capture
Positioner
- Electronic EPTZ for zooming and tracking targets associated with smart alarms
Active Deterrence
- Active deterrence with siren and light
- Light signal with red and blue lights
- Flashing or fixed light duration from 5s to 30s
- High, medium, or low flashing frequency
- Audible warning with 11 sound alarms
- Compatible with custom sound import
- Horn volume adjustable from 0 to 100
- Number of audible alert repetitions configurable from 1 to 10 times
Audio
- Built-in dual microphone
- Built-in dual speaker
- Two-way audio
- 1 audio input via an RCA port
- 1 audio output via an RCA port
- Audio compression PCM, G.711a, G.711Mu, G.726, and G.723
Storage
- MicroSD card slot up to 512 GB (card not included)
- Storage via FTP, SFTP, and NAS
Alarms
- 1 alarm input compatible with a wet contact up to 5mA at 3-5 VDC and a dry contact
- 1 alarm output with dry contact up to 1000mA at 30 VDC or 500mA at 50 VAC
- Alarm events in case of SD card absence, saturation, or error
- Alarm events in case of network disconnection, IP address conflict, and illegal access
- Alarm events in case of motion detection, video tampering, tripwire, intrusion, loitering, and prolonged presence
- Alarm events for full-frame facial detection, scene change, audio detection, voltage detection, blur, SMD, and security exception
Network
- RJ45 10/100/1000 Base-T interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, and Auto Registration
- ONVIF Profile S, Profile G, Profile T, and Profile M compatibility
- CGI compatibility
- 20 users or hosts with a total bandwidth of 64 M
- Compatible browsers: IE, Chrome, and Firefox
- Management software: Smart PSS Lite, DSS, DMSS, and DoLynk Care
- Mobile application for iOS and Android
- Security with Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security, and security alert
Power Supply
- 12 VDC power supply with a tolerance of ±30 %
- PoE+ IEEE 802.3at
- Dual redundant power when both adapter and PoE simultaneously power the device
- Base consumption of 4.1 W at 12 VDC
- Base consumption of 5.6 W with PoE
- Maximum consumption of 12.2 W at 12 VDC with H.265, WDR, warm light, active deterrence, and intelligence activated
- Maximum consumption of 14.8 W with PoE, H.265, WDR, warm light, active deterrence, and intelligence activated
Environment
- Operating temperature from -40 °C to +60 °C
- Operating humidity ≤ 95 % RH non-condensing
- Storage temperature from -40 °C to +60 °C
- Storage humidity ≤ 95 % RH non-condensing
- IP67 protection rating
Corrosion Protection
- Aluminum alloy metal casing with enhanced corrosion protection
- Corrosion protection C5-H / NEMA 4X
- Professional Protection corrosion protection level
- Designed for high humidity and salinity environments, such as ports, islands, sea bridges, coastal buildings, and areas exposed to sulfuration, nitridation, or acid rain
- Reliable use in areas up to 2 km from the coast
Physical Characteristics
- 3AXIS angle adjustment with pan from 0° to 355°, tilt from 0° to 77°, and rotation from 0° to 355°
- Ceiling, wall, or pole installation with compatible accessories
- Aluminum alloy metal casing with improved corrosion resistance
- Dimensions: 135.2 mm × Φ122 mm
- Net weight: 0.99 kg
- Gross weight: 1.15 kg
Content

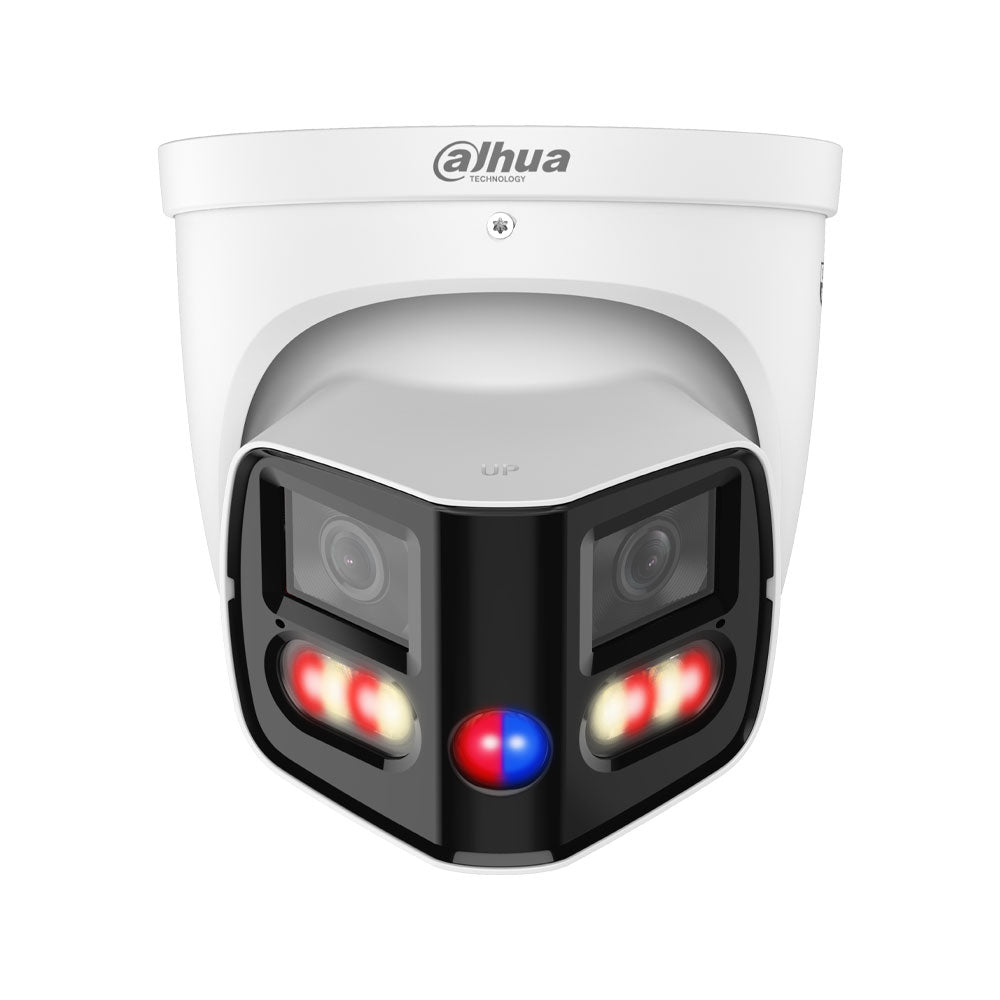

- 180° Panoramic IP Anti-Corrosion Dome with TiOC Duo, Active Deterrence, and Fixed Optic DAHUA-5485 (DH-IPC-PDW3859P-A180-E2-AS-PV-0280B-ATC)
Certifications and Standards
- CE-LVD EN 62368-1
- CE-EMC compliant with electromagnetic compatibility directive 2014/30/EU
- NEMA 4X
