Description
Technical Specifications
- 1/1.8" CMOS Sensor
- Maximum resolution of 4MP (2688 × 1520)
- Automatic day/night mode (ICR), color and B/W
- Minimum illumination of 0.0007 lux@F1.8 in color, 30 IRE
- Minimum illumination of 0.0004 lux@F1.8 in black and white, 30 IRE
- 0 lux with illuminator on
- Smart Dual Light with IR up to 60m and warm light up to 50m
- 4 multi-core IR and warm light lamps
- Automatic, manual and zoom priority control of the illuminator
- Motorized 2.7-12mm optic with Φ14 mount
- Maximum aperture F1.8
- Field of view H: 115°-47°; V: 62°-27°; D: 137°-54°
- Automatic DC-Iris diaphragm
- Minimum focusing distance 0.13m
Video Stream
- Video compression H.265, H.264, H.264H, H.264B, and MJPEG on the sub-stream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 4-stream capability
- Main stream: 4MP (2688 × 1520)@1-25/30 fps
- Sub stream: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Third stream: 1080P (1920 × 1080)@1-25/30 fps
- Fourth stream: 720P (1280 × 720)@1-25/30 fps
- Resolutions 4MP, 3MP, 1080P, 1.3M, 720P, D1, VGA and CIF
- VBR and CBR bitrate control
- H.264 bitrate from 3 kbps to 16384 kbps
- H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC and real 140dB WDR
- 3D NR noise reduction
- SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RoI with 4 zones
- EIS electronic image stabilization
- Smart Illumination
- Smart Dual Light
- Defogging
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 4 tiles or 8 color blocks
- LDC distortion correction
- Digital watermark
Smart Features
- Xinghan Vision large-scale AI models for object detection and recognition and scene adaptation
- IVS perimeter protection with intrusion, line crossing and fast movement with vehicle, animal, and human classification
- Loitering, crowd gathering, parking, and occupancy detection
- Large-scale AI models for perimeter protection with expanded target detection range
- Self-learning for false alarm filtering
- SMD 4.0
- AcuPick for searching and locating people, animals, and motor vehicles in live and recorded videos
- Face detection with capture, capture optimization, face enhancement, and face exposure
- Extraction of 6 attributes and 8 facial expressions
- People counting by line crossing with daily, weekly, monthly, and yearly reports
- People counting by area and queue management with daily, weekly, and monthly reports
- Up to 4 rules for line crossing, people counting in areas, and queue management
- Heat map
- Video metadata for motor vehicles, non-motor vehicles, faces, and human body
- Extraction of 6 motor vehicle attributes and 6 non-motor vehicle attributes
- Extraction of 6 face attributes and 8 human body attributes
- Smart search with Smart NVR for refined searching, event extraction, and merging into event videos
Acoustic Warning
- Acoustic warning with 11 sound alarms
- Import of 10 custom sound alarms
- Acoustic warning volume adjustable from 0 to 100
- Configurable acoustic warning playback from 1 to 10 times
Audio
- Built-in microphone
- 1 audio input via RCA port
- 1 audio output via RCA port
- Audio compression G.711a, G.711Mu, PCM, G.726 and G.723
Storage
- MicroSD card slot up to 1TB (card not included)
- FTP, SFTP and NAS storage
Alarms
- 2 alarm inputs compatible with wet contact up to 5mA at 3-5 VDC and dry contact
- 1 alarm output with wet contact up to 300mA at 12 VDC
- Alarms for no SD card, full card, or SD card error
- Alarm events due to network disconnection, IP conflict, and illegal access
- Motion detection and video tampering alarms
- Line crossing, intrusion, fast movement, loitering, and crowd gathering alarms
- Parking, scene change, audio detection, and voltage detection alarms
- External alarm, face detection, video metadata, SMD, and people counting
- Alarm events for people counting, dwell time, people count error, queue alarm, queue time alarm, security exception, and defocus.
Network
- RJ45 10/100 Base-T improvement interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and Auto-registration
- ONVIF S, G, T and M profile support
- CGI support
- 20 users or hosts with a total bandwidth of 80M
- Supported browsers IE 11 and above, Chrome 102 and above, Firefox 88 and above
- DSS, DMSS, and DoLynk Care management software
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security and security warning
Power Supply
- 12 VDC power supply with a tolerance of ±30%.
- PoE+ IEEE 802.3at
- ePoE
- Dual redundant power supply when adapter and PoE simultaneously power the device
- Base consumption of 3.7 W at 12 VDC
- Base consumption of 5 W with PoE
- 12.9 W maximum power consumption at 12 VDC with IR, WDR and intelligence enabled
- 16.1 W maximum power consumption with PoE with IR, WDR and intelligence enabled
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Operating humidity ≤95% RH non-condensing
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity ≤95% RH non-condensing
- IP67 protection
- IK10 vandal protection
Corrosion Protection
- Reinforced aluminum alloy housing resistant to corrosion
- C5-H / NEMA 4X corrosion protection
- Corrosion protection level Professional protection
- Designed for high humidity and salinity environments, such as ports, islands, sea bridges, coastal buildings, and areas exposed to sulfuration, nitridation, or acid rain.
- Reliable use in areas up to 2 km from the coastline
Physical Characteristics
- 3AXIS angular adjustment with pan from 0° to 355°, tilt from 0° to 80° and rotation from 0° to 355°.
- Ceiling, wall or pole mounting with compatible accessories
- Metal casing
- Dimensions: 118 mm × Φ159 mm
- Net weight: 1.16 kg
- Gross weight: 1.36 kg
Content

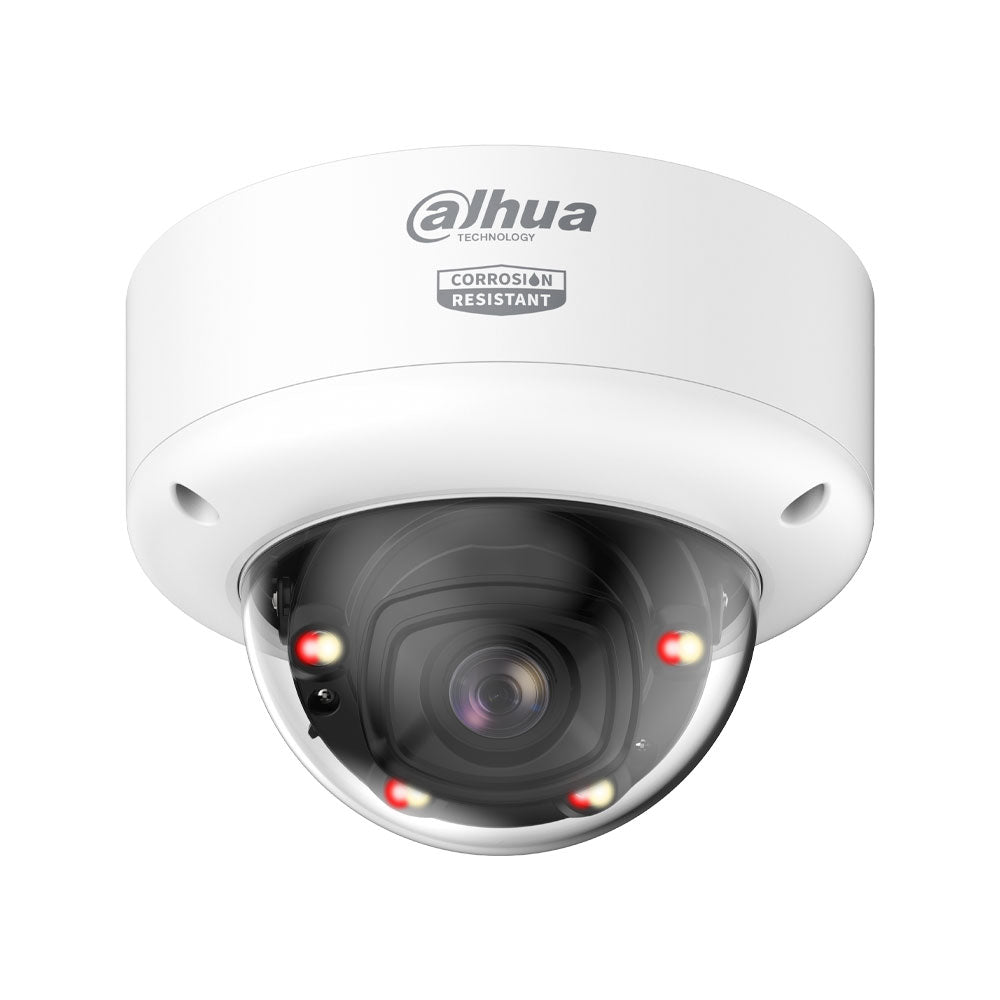

- Anti-corrosion IP dome with Smart Dual Light and motorized optics DAHUA-5425 (DH-IPC-HDBW5459E1P-ZE-IL-2712-ATC)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC in accordance with EMC Directive 2014/30/EU
- NEMA 4X
