Description
Technical specifications
- 1/1.8" CMOS sensor
- Max resolution of 4MP (2688 × 1520)
- Progressive scanning system
- Auto day/night (ICR), color and B/W mode
- Minimum illumination of 0.0003 lux@F1.2 color, 30 IRE
- Minimum illumination of 0.0001 lux@F1.2 in B/W, 30 IRE
- 0 lux with illuminator enabled
- Smart Dual Light with IR up to 50m and warm light up to 50m
- 4 IR multi-core lamps and warm light
- Automatic, manual and zoom priority illuminator control
- Motorized 2.7-12mm lens with Φ16 mount
- Max aperture F1.2
- Field of view H: 114°-48°; V: 59°-27°; D: 143°-56° Fixed iris
- Fixed iris
- Minimum focus distance of 1.75m
Video stream
- H.265, H.264, H.264H, H.264B and MJPEG video compression on sub-stream
- AI H.264 and AI H.265 encoding
- Smart H.264+ and Smart H.265+
- 3 stream capability
- Stream 1: 4MP (2688 × 1520)@1-25/30 fps
- Stream 2: 1080P (1920 × 1080)@1-25/30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Resolutions 4MP, 3MP, 1080P, 720P, D1, VGA and CIF
- VBR, CBR and ABR bit rate control
- H.264 bit rate from 3 kbps to 16384 kbps
- H.265 bit rate from 3 kbps to 16384 kbps
Features
- BLC, HLC and true 120dB WDR
- 3D NR noise reduction
- AI SSA auto scene adaptation
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RoI with 4 zones
- EIS electronic image stabilization
- Smart Illumination
- Smart Dual Light
- WizColor for color image in night scenes
- Defogging
- Image rotation of 0°, 90°, 180°, 270
- Mirror
- Privacy mask with 8 zones
Smart Functions
- Xinghan Vision large-scale AI models for target detection and scene adaptation
- IVS perimeter protection with intrusion and tripwire with vehicle and person classification
- Loitering and lingering detection
- Large-scale AI models for perimeter protection with extended target detection range
- SMD 4.0
- AcuPick for searching and locating people, animals and motor vehicles in live and recorded videos
- AI SSA to adjust image parameters to scene conditions
- Face detection across the entire image with capture, capture optimization and face exposure
- Capture of one face or one thumb photo
- Real-time capture strategies, quality priority and capture optimization
- Face angle filtering and optimization duration adjustment
TiOC PRO Active Deterrence
- Audible and visual alarm
- Light warning with red and blue lights
- Acoustic warning via built-in speaker
- One-key arming and disarming
- Configurable SMD zone in warm light areas with alarm activation
Audio
- Dual built-in microphone
- Built-in speaker
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- PCM, G.711a, G.711Mu, G.726 and G.723 audio compression
Storage
- MicroSD card slot up to 512GB (card not included)
- FTP, SFTP and NAS storage
Alarms
- 1 alarm input compatible with wet contact up to 5mA at 3-5 VDC and dry contact
- 1 alarm output via dry contact up to 1000mA at 30 VDC or 500mA at 50 VAC
- Alarms for no SD card, full card or SD card error
- Alarm events due to network disconnection, IP conflict and invalid access
- Motion detection and video tampering alarms
- Tripwire, intrusion, loitering and lingering alarms
- Face detection, scene change, audio detection and voltage detection alarms
- Blur, SMD and security exception alarms
Network
- RJ45 10/100/1000 Base-T interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour and Auto Registration
- ONVIF S, G, T and M profile support
- CGI Support
- 20 users or hosts with 64M total bandwidth
- Supported browsers IE, Chrome and Firefox
- SmartPSS Lite, DSS, DMSS, DMSS and DoLynk management software
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lock, security logs and IP/MAC filtering
- X.509 certification generation and import, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security and security alerts
Power Supply
- 12 VDC power supply with ±30% tolerance
- PoE+ IEEE 802.3at
- Dual backup power when adapter and PoE simultaneously power the device
- Basic power consumption of 4.1W at 12 VDC
- 5.7W basic consumption with PoE
- 12.1W maximum power consumption at 12 VDC with H.265, WDR, warm light, active acoustic and light deterrence and intelligence enabled
- 16.1W maximum power consumption with PoE with H.265, WDR, warm light, active acoustic and light deterrence and intelligence enabled
Environment
- Operating temperature -30°C to +60°C (-30°F to +60°F)
- Operating humidity ≤95% RH non-condensing
- Storage temperature -40°C to +60°C
- Storage humidity ≤95% RH non-condensing
- IP67 protection
- IK10 vandal protection
- NEMA 4X corrosion protection
Corrosion protection
- Corrosion-resistant aluminum alloy housing
- Professional protection for sensitive environments such as chemical plants, docks and coastlines
- Reliable use in areas up to 2 km from the coastline
- Suitable for regions exposed to acid rain
- C5-H and NEMA 4X certified
Physical characteristics
- 3AXIS angular adjustment with pan from 0° to 355°, tilt from 0° to 80° and rotation from 0° to 355
- Ceiling, junction box, wall or pole installation with compatible accessories
- Enhanced anti-corrosion aluminum alloy housing
- Dimensions: 105mm × Φ126mm
- Net weight: 0.75 kg
- Gross weight: 0.99 kg
Contents

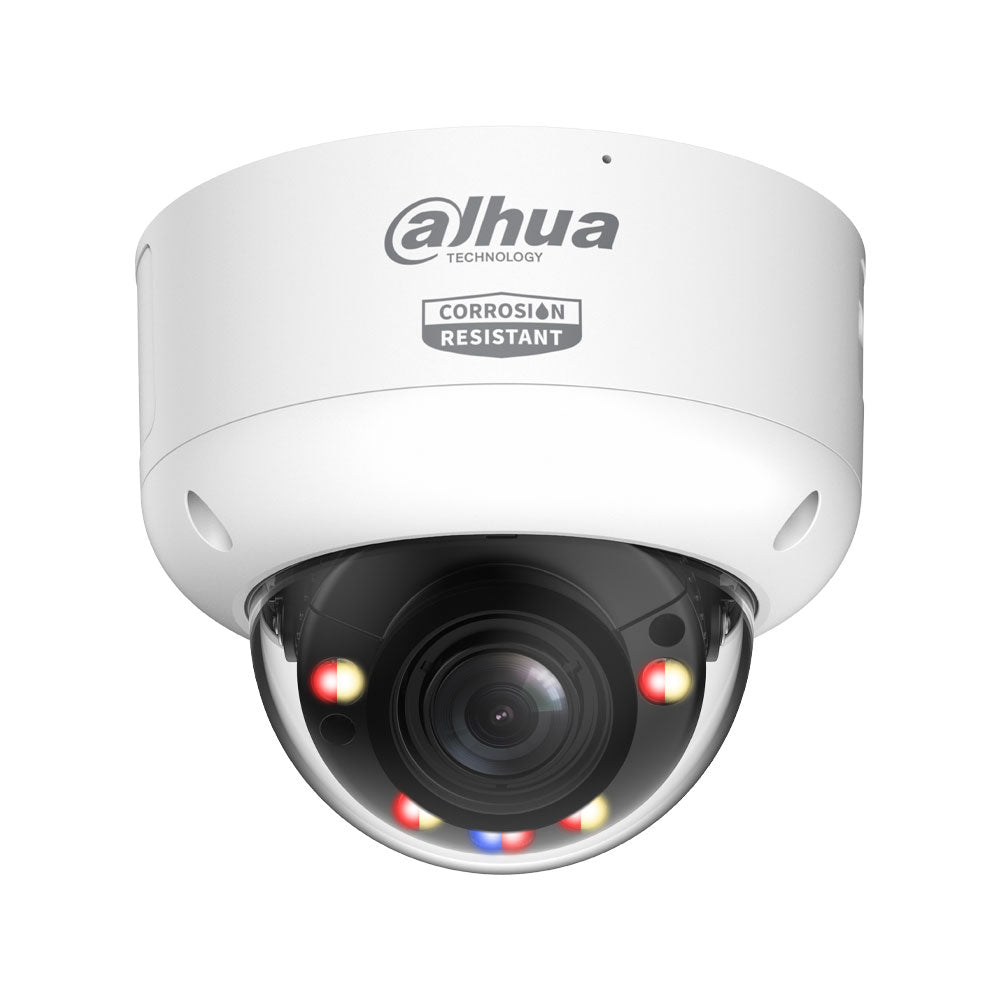

- Anti-corrosion IP dome with TiOC PRO and motorized optics DAHUA-5417 (DH-IPC-HDBW3449R1P-ZAS-PV-2712-PRO-ATC)
Certifications and Standards
- CE-LVD EN 62368-1
- CE-EMC in accordance with EMC Directive 2014/30/EU
- NEMA 4X
- C5-H
