Technical Specifications

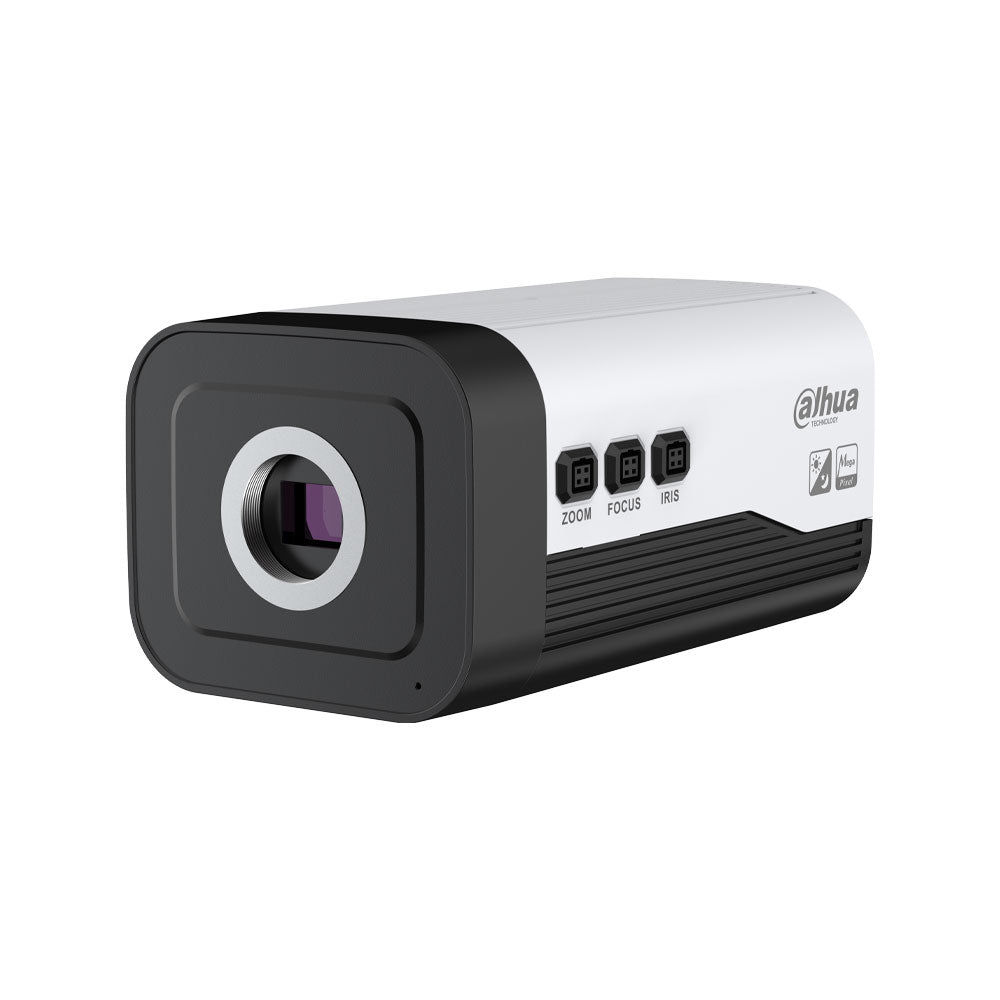

- Dahua WizMind 5 Series Box IP Camera
- 1/1.8" CMOS and 8 MP sensor
- Maximum resolution of 8 MP (3840 × 2160)
- Progressive scanning
- 4GB ROM and 2GB RAM
- Automatic or manual electronic shutter from 1/3 s to 1/100,000 s
- Minimum illumination with 10 to 40 mm lens: 0.0007 lux at F1.2 in color and 0.0003 lux at F1.2 in black and white
- Signal-to-noise ratio greater than 56 dB
- C/CS lens mount with P-Iris control
- Lens not included
Video Stream
- H.265, H.264, H.264H, H.264B, and MJPEG compression in substream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 4 stream capacity
- Stream 1: 8 MP (3840 × 2160) at 1~25/30 frames per second
- Stream 2: D1 (704 × 576) at 1~25 frames per second or D1 (704 × 480) at 1~30 frames per second
- Stream 3: 1080P (1920×1080) at 1~25/30 frames per second
- Stream 4: 720p (1280 × 720) at 1~25/30 frames per second
- Resolutions: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, VGA and CIF
- VBR and CBR bitrate control
- H.264 and H.265 bitrate from 3 kbps to 16384 kbps
Features
- Automatic day/night mode with ICR filter, color, and B&W
- BLC, HLC, and true WDR of 120 dB
- Automatic Scene Adaptation (SSA) and AI SSA
- Automatic, natural, street lamp, outdoor, manual, and custom regional white balance
- Automatic or manual gain control
- 3D NR noise reduction
- Motion detection with 4 rectangular zones
- Region of Interest (ROI) with 4 zones
- Electronic Image Stabilization (EIS) and Defog
- Image rotation at 0°, 90°, 180°, and 270°
- Mirror and privacy mask via 4 mosaics or 8 color blocks
- Sound alert with 11 built-in sounds and up to 10 custom sounds
Smart Functions
- Xinghan Vision large-scale AI models for detection, recognition, and scene adaptation
- AI Rule Assist for automatic IVS rule creation
- Perimeter protection with intrusion, tripwire, and fast movement detection, with classification of people, vehicles, animals, and other targets
- Loitering, crowd gathering, parking, and prolonged stay detection
- Self-learning to reduce false alarms
- SMD 4.0
- AcuPick for locating people, animals, and vehicles in live and recorded videos
- Facial detection with capture, optimization, enhancement, exposure, and attribute and expression extraction
- People counting by line crossing, by area, and queue management with report generation
- Heat map
- Metadata related to motorized vehicles, non-motorized vehicles, faces, and human bodies
- Smart detection of abandoned objects and missing objects
- Smart search with compatible NVR for refined search and event extraction
Audio
- Built-in microphone
- 2 audio inputs via 3.5 mm jack
- 1 audio output via 3.5 mm jack
- G.711a, G.711Mu, PCM, G.726, and G.723 compression
Storage
- MicroSD card slot up to 1 TB (card not included)
- Storage via FTP, SFTP, and NAS
Alarms
- 2 alarm inputs compatible with wet and dry contacts
- 2 dry contact alarm outputs up to 1,000 mA at 30 V DC or 500 mA at 50 V AC
- Events related to absence, filling or error of SD card, network disconnection, IP address conflict, and unauthorized access
- Events related to motion detection, video tampering, scene change, audio, and external alarm
- Smart events related to IVS, facial detection, metadata, SMD, people counting, and blur
Communication Interface
- 1 RS-485 interface with a baud rate of 1,200 bps to 115,200 bps
- 1 CVBS analog output via BNC
- 12 V DC power output with a maximum current of 165 mA and a peak of 700 mA
Network
- RJ45 10/100 Base-T port
- SDK and API
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, and automatic recording
- Compatibility with ONVIF S, G, T, and M profiles, as well as CGI
- Up to 20 users with a total bandwidth of 80 Mbps
- Compatible with IE 11, Chrome 102, Firefox 88, and later versions
- Management via DSS, DMSS, and DoLynk Care
- Mobile application for iOS and Android
- Security via HTTPS, 802.1x, optional TPM 2.0, X.509 certificates, IP/MAC filtering, Trusted Boot, Trusted Execution, and TLS 1.3
Power Supply
- 12 V DC power supply with a tolerance of ±25%
- 24 V AC power supply with a tolerance of ±30%
- PoE+ IEEE 802.3at and ePoE
- Dual redundant power supply when adapter and PoE simultaneously power the device
- Base consumption of 5.3 W at 12 V DC and 7.2 W via PoE
- Maximum consumption of 12.3 W at 12 V DC and 14.8 W via PoE with H.265, WDR, and smart functions enabled
Environmental Conditions
- Operating temperature from -40°C to +60°C
- Storage temperature between -40°C and +60°C
- Operating and storage humidity less than or equal to 95% non-condensing
- Basic anticorrosion protection level
Physical Characteristics
- Dimensions: 161.6 × 86.8 × 74 mm
- Net weight: 0.76 kg
- Gross weight: 0.98 kg
- Compatible with ceiling and wall mounts as well as PFH610V series enclosures
Contents
- Dahua WizMind 5 Series Box IP Camera DAHUA-5398 (DH-IPC-HF5852FP-ZE-S4)
- Lens not included
Certifications and Standards
- CE-LVD compliant with EN 62368-1
- CE-CEM compliant with Electromagnetic Compatibility Directive 2014/30/EU
