Description
Technical Specifications

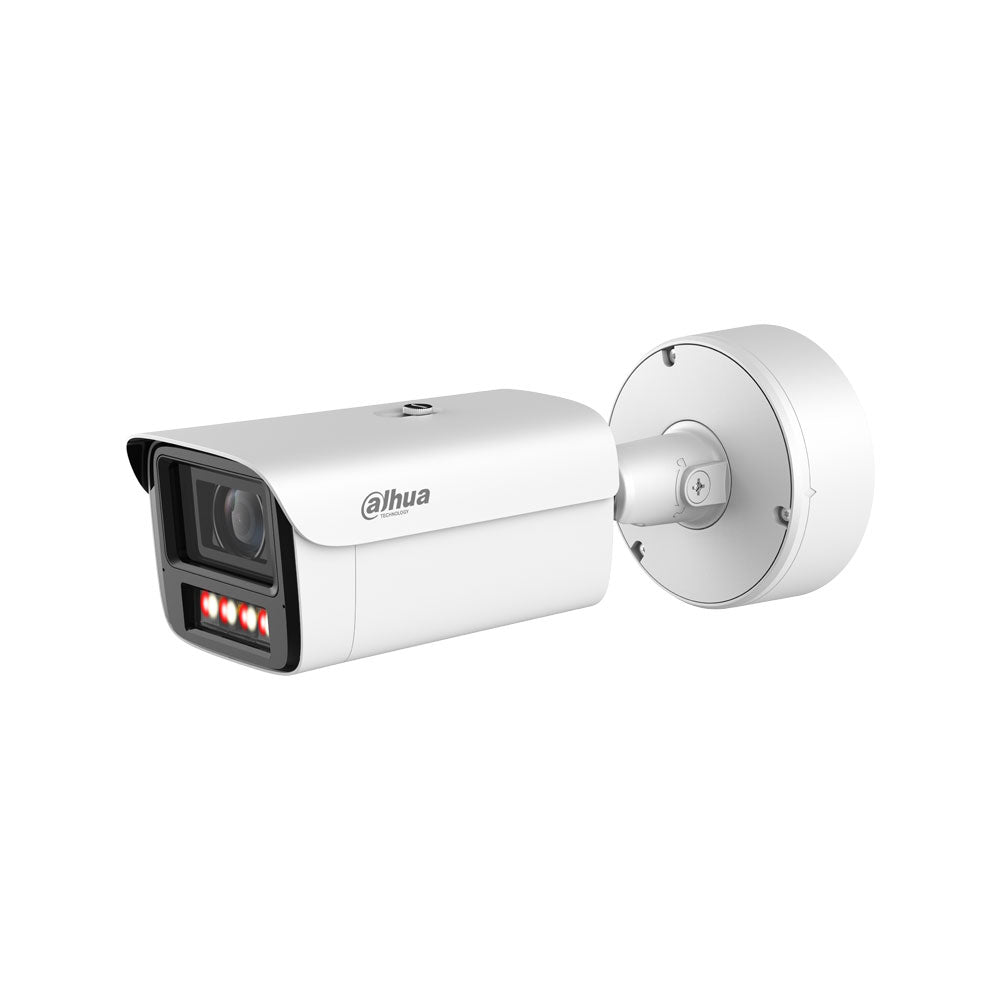

- 4 MP Dahua WizMind 7 IP bullet camera
- 1/1.8" progressive scan CMOS sensor
- Maximum resolution of 4 MP (2688 x 1520)
- 8 GB ROM and 4 GB RAM
- Minimum illumination of 0.0005 lux@F1.2 in color and 0.0001 lux@F1.2 in black and white
- 0 lux with illuminator on
- Signal-to-noise ratio greater than 56 dB
- Smart Dual Light with IR illumination up to 150m and warm light up to 80m
- 8 to 80 mm motorized varifocal lens with a maximum aperture of F1.2
- Automatic P-Iris control
- Horizontal viewing angle of 42.87° to 5.4°, vertical of 23.68° to 3.4° and diagonal of 49.78° to 6.2°
- Minimum focus distance of 0.2m
- DORI in wide angle: detection at 140m, observation at 56m, recognition at 28m and identification at 14m
- DORI in telephoto mode: detection at 1,120m, observation at 448m, recognition at 224m and identification at 112m
Video Streams
- H.265, H.264, H.264H, H.264B and MJPEG compression in substream
- AI H.265 and AI H.264 encoding with Smart H.265+ and Smart H.264+
- Up to 5 streams capacity
- Stream 1: 4 MP (2688 x 1520) at 1~25/30 fps
- Stream 1 in high speed: 4 MP (2688 x 1520) at 1~50/60 fps or 1080p (1920 x 1080) at 1~100/120 fps
- Stream 2: 1080p (1920 x 1080) at 1~25/30 frames per second
- Stream 3: 1080p (1920 x 1080) at 1~25/30 frames per second
- Stream 4: 1080p (1920 x 1080) at 1~25/30 frames per second
- Stream 5: D1 (704 x 576) at 1~25 fps or D1 (704 x 480) at 1~30 fps
- CBR, VBR and ABR bitrate control
- H.264 bitrate from 32 to 10,240 Kbps and H.265 from 12 to 10,240 Kbps
Features
- AI-ISP technology to adapt image processing to the scene
- Xinghan Vision large-scale AI models and Xinghan precise focusing
- 140dB WDR, BLC, HLC, 3D noise reduction and Automatic Scene Adaptation (SSA)
- GIS gyroscope image stabilization
- Smart illumination, Defog, mirror effect and image rotation at 0°, 90°, 180° and 270°
- Smart glass heater to eliminate water, ice, snow and condensation
- Illuminator with anti-reflective coating to preserve sharpness in rain and fog
- Privacy protection through mosaics and frosted effect for faces, bodies and vehicles
- G-sensor for image stabilization and sabotage detection
- Status indicators and daily or weekly power reporting
Smart Functions
- AcuPick to locate people, animals and vehicles in live or recorded videos using compatible devices
- Perimeter protection with intrusion, line crossing, rapid movement, loitering, crowd gathering, parking and prolonged presence detection
- Precise classification of people, animals and vehicles, and self-learning to reduce false alarms
- Face detection and recognition with tracking, optimized capture, attributes and up to 5 databases containing 200,000 images
- PPE (Personal Protective Equipment) detection: helmets, caps, uniforms, masks, gloves, shoe covers, shoes, vests, belts, glasses and aprons
- People counting by line crossing and by area, queue management and daily, monthly and annual reports
- ANPR with license plate attributes, vehicle type and color, and recognition up to 60 km/h
- Up to 10,000 license plates on the blacklist and 10,000 license plates on the whitelist
- Parking space management and heat map
- Metadata on people, faces, motorized and non-motorized vehicles
- Allows simultaneous activation of combinations of two compatible smart functions
Audio
- Built-in dual microphone with adaptive noise cancellation and pick-up range up to 30m
- Built-in Hi-Fi speaker with a range of up to 30m indoors
- Maximum sound level of 110 dB at 10 cm
- Two-way audio with 1 input and 1 RCA audio output
- G.711a, G.711Mu, PCM, G.726 and G.723 compression
Storage
- MicroSD card slot up to 1 TB (card not included)
- Storage via FTP, SFTP and NAS
Alarms
- 3 alarm inputs and 2 outputs
- Inputs compatible with dry and wet contacts
- Dry contact outputs with a maximum load of 1,000 mA at 30 V DC or 500 mA at 50 V AC
- Deterrent alarm with audible signal and flashing light
- Events related to motion, tampering, scene change, focus loss, audio detection, network disconnection and MicroSD card errors
Communication Interface
- 1 RS-485 port with a speed of 1,200 to 115,200 bps
- 1 analog CVBS video output via BNC connector
Network
- 1 RJ45 10/100/1000 Base-T Ethernet port
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE and SNMP protocols
- DoLynk Cloud and automatic registration
- ONVIF profiles S, G, T and M interoperability and CGI
- SDK and API support
- Up to 20 users with a total bandwidth of 340 Mbps
- Management via SmartPSS Lite, DSS and DMSS
- Applications for iOS and Android
- Security via HTTPS, 802.1X, AES-256, SSL/TLS 1.3, X.509 certificates and FIPS 140-2 Level 2 compliant TPM 2.0
Power
- Power supply via 12 V DC ±30 %, 24 V AC ±30 %, PoE+ IEEE 802.3at or ePoE
- Power redundancy between adapter and PoE without device reboot
- 12 V DC output with a maximum current of 165 mA and a peak of 700 mA
- Basic consumption of 8.2 W at 12 V DC, 9.1 W at 24 V AC and 11.4 W via PoE
- Maximum consumption of 19.5 W at 12 V DC, 20.9 W at 24 V AC and 21.8 W via PoE
Environmental Conditions
- Operating and storage temperature: -40 °C to +65 °C
- Operating humidity up to 95% non-condensing
- IP67 and IK10 protection rating
- Basic anti-corrosion protection level
Physical Characteristics
- Metal casing with plastic sunshield
- Ceiling, wall or pole mounting
- 3-axis adjustment: pan 0°~360°, tilt 0°~90° and rotation 0°~360°
- Dimensions: 345 x 137 x 134 mm
- Net weight of 2 kg
- Gross weight: 3 kg
Contents
- Dahua DAHUA-5395 (DH-IPC-HFW7459Z1P-Z-PV-0880-X) bullet IP camera
Certifications and Standards
- CE-LVD compliant with EN 62368-1
- CE-CEM compliant with EMC Directive 2014/30/EU
