Description
Technical specifications

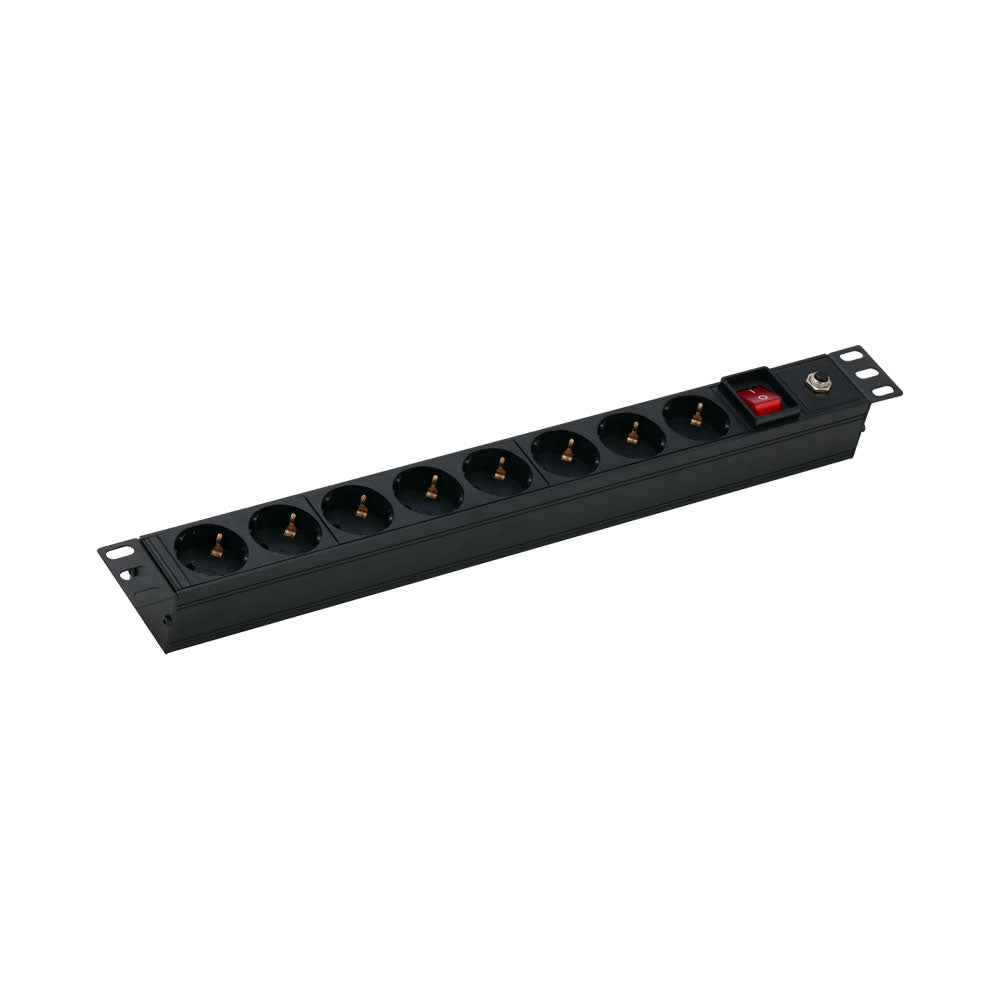

- Dahua PDU power strip for rack mounting
- 8 European 3-pin sockets
- Horizontal mounting in a 19" cabinet
- Temperature-controlled circuit breaker technology
- Integrated overcurrent protection circuit
- High resistance to lightning surges
- Fast response time
- Internal operating status indicator
Power supply
- Maximum rated input voltage of 250 V AC
- Load current of 16 A
- Maximum load power of 4,000 W
- 1.5 mm² and 2 m European input connector and cable
Protections
- Overload protection module and switch
Environment
- Operating conditions from -40 °C to +70 °C
- Operating relative humidity up to 95%
Physical characteristics
- Aluminum and steel casing
- Color: black
- Dimensions: 482.6 mm × 45 mm × 45 mm
- Net weight of 0.8 kg
- Gross weight: 0.9 kg
Contents
- Rack-mounted PDU power strip with 8 European sockets DAHUA-5389 (ZZM10/PDU (8 European 250))
- 4 M6 × 10 screws
- 4 M6 cage nuts
- User manual
