Description
Technical specifications
- 1/1.8" CMOS Sensor
- Maximum resolution of 4MP (2688 × 1520)
- Automatic day/night filter (ICR), color and black and white
- Minimum illumination of 0.0004 lux@F1.0 in color, 30 IRE
- Minimum illumination of 0.0003 lux@F1.0 in black and white, 30 IRE
- 0 lux with illuminator on
- IR illumination up to 80 m
- Warm light up to 60 m
- 4 multi-core IR and warm lights
- Automatic and manual illuminator control
- 2.8 mm fixed lens with M16 mount
- Maximum aperture F1.0
- Field of view H: 111°; V: 60°; D: 135° Fixed iris
- Fixed iris
- Minimum focus distance of 2 m
Video stream
- H.265, H.264, H.264H, H.264B and MJPEG video compression on the secondary stream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 4-stream capability
- Stream 1: 4MP (2688 × 1520)@1-25/30 fps
- Stream 2: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Stream 4: 720P (1280 × 720)@1-25/30 fps
- VBR and CBR bitrate control
- H.264 bitrate from 3 kbps to 16384 kbps
- H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC and real 140 dB WDR
- 3D NR noise reduction
- SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RoI with 4 zones
- Smart illumination
- Smart Dual Light
- Defog
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 4 tiles or 8 color blocks
- LDC distortion correction
- Digital watermark
Smart Features
- Xinghan Vision large-scale AI models for object detection and recognition and scene adaptation
- AI Rule Assist for automatic IVS rule creation
- IVS perimeter protection with intrusion, line crossing and rapid motion with vehicle, animal and human classification
- Loitering, crowd gathering, parking and occupation detection
- Large-scale AI models for perimeter protection with extended target detection range
- Self-learning for false alarm filtering
- SMD 4.0
- AcuPick for searching and locating people, animals and motor vehicles in live and recorded videos
- Face detection with capture, capture optimization, face enhancement and face exposure
- Extraction of 6 attributes and 8 facial expressions
- People counting by line crossing with daily, weekly, monthly and annual reports
- People counting by area and queue management with daily, weekly and monthly reports
- Up to 4 rules for line crossing, people counting in areas and queue management
- Heatmap
- Video metadata for motor vehicles, non-motor vehicles, faces and human bodies
- Extraction of 6 motor vehicle attributes and 6 non-motor vehicle attributes
- Extraction of 6 face attributes and 8 human body attributes
- Smart search with Smart NVR for refined search, event extraction and merging into event videos
Audio
- Built-in dual microphone
- Built-in speaker
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- G.711a, G.711Mu, PCM, G.726 and G.723 audio compression
- Acoustic warning with 11 audio alarms
- Import of a maximum of 10 custom audio alarms
- Adjustable acoustic warning volume from 0 to 100
- Configurable acoustic warning playback from 1 to 10 times
Storage
- MicroSD card slot up to 1 TB
- FTP, SFTP and NAS storage
Alarms
- 1 alarm input with wet contact 5 mA @ 3-5 VDC
- 1 alarm output with dry contact 1000 mA @ 30 VDC/500 mA @ 50 VAC
- Warm light warning
- Flashing or fixed duration from 5s to 30s
- High, medium and low flash frequency
- Alarm events due to missing, full or faulty SD card
- Alarms for network disconnection, IP address conflict and illegal access
- Motion detection and video tampering alarms
- Line crossing, intrusion, rapid motion, loitering and crowd gathering alarms
- Parking, stopping, scene change, audio detection and voltage detection alarms
- External alarm, face detection, video metadata and SMD alarm events
- People counting, queue management and security exception alarms
Network
- RJ45 10/100 Base-T enhancement interface
- SDK and API
- RS-485 port with a transmission speed from 1200 bps to 115200 bps
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and auto-registration.
- Support for ONVIF S, G, T and M profiles
- CGI support
- 20 users or hosts with a total bandwidth of 80 M
- Supported browsers IE 11 and above, Chrome 102 and above, Firefox 88 and above
- DSS, DMSS and DoLynk care management software
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lock, security logs and IP/MAC filtering
- Generation and import of X.509 certifications, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, Session Security and Security Warning
Power supply
- 12 VDC power supply with a tolerance of ±30%.
- PoE+ IEEE 802.3at
- ePoE
- 12 VDC power output with a maximum current of 165 mA and a peak current of 700 mA
- Dual backup power when adapter and PoE simultaneously power the device
- Basic power consumption of 4.1 W at 12 VDC
- 4.8 W basic power consumption with PoE
- 21.6 W maximum power consumption at 12 VDC with IR, WDR, intelligence, siren and deterrent light activated
- 24.2 W maximum power consumption with PoE with IR, WDR, intelligence, siren and deterrent light activated
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Operating humidity ≤95% RH non-condensing
- Storage temperature -40°C to +60°C (-40°F to +60°C)
- Storage humidity ≤95% RH non-condensing
- IP67 protection
- IK10 vandal protection
Physical characteristics
- 3AXIS angle adjustment with pan from 0° to 360°, tilt from 0° to 90° and rotation from 0° to 360°
- Ceiling, wall or vertical pole installation with compatible accessories
- Metal and plastic housing
- Dimensions: 288.4 mm × 94.4 mm × 84.7 mm
- Net weight: 1.09 kg
- Gross weight: 1.39 kg
Content

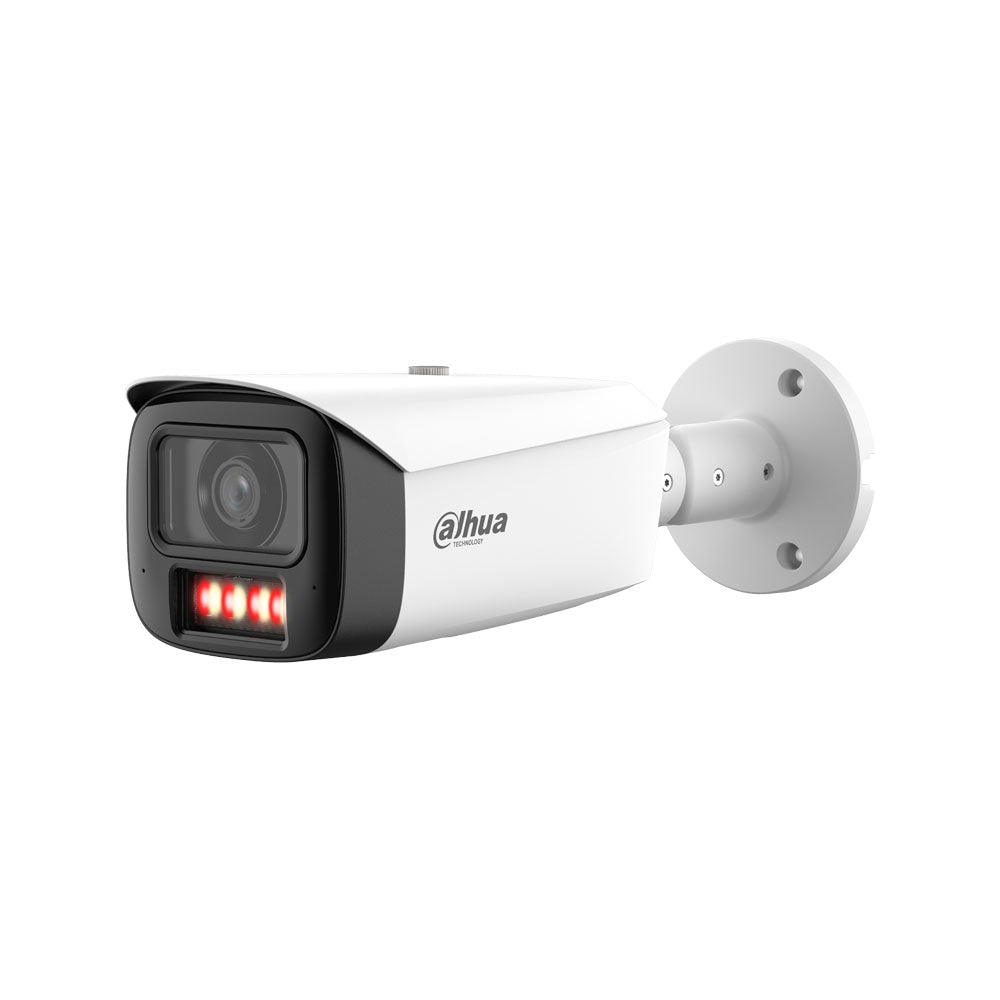

- DAHUA-5362 fixed lens IP camera (DH-IPC-HFW5459T1P-ASE-PV-0280B-PRO)
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC in accordance with Electromagnetic Compatibility Directive 2014/30/EU
