Description
Technical Specifications
- Corrosion-resistant camera wall mount
- Compatible with DH-IPC-HFEXXXXXXF series explosion-proof cameras
- 6 kg (13.23 lb) load capacity
- Wall mount
- Designed for environments with high temperatures, humidity, frequent vibrations, and corrosive environments.
Environment
- Operating Temperature -40°C to +60°C (-40°F to +60°F)
- Operating Humidity 10% to 90% RH (non-condensing)
- Storage Temperature -30°C to +70°C (-30°F to +70°C)
- Storage Humidity Less than 95% RH (non-condensing)
- Moderate level of corrosion protection
- Corrosion protection suitable for environments with standard requirements for corrosion resistance
- Reliable performance 2 km (1.24 miles) or more in coastal areas and locations exposed to acid rain
Physical Characteristics
- Casing Material ADC12
- Color Silver gray
- Dimensions: 111.5 mm × 102 mm × 88 mm (4.39 in. × 4.02 in. × 3.46 in.)
- Net Weight 1.1 kg (2.43 lb)
- Gross Weight 1.4 kg (3.09 lb)
Contents

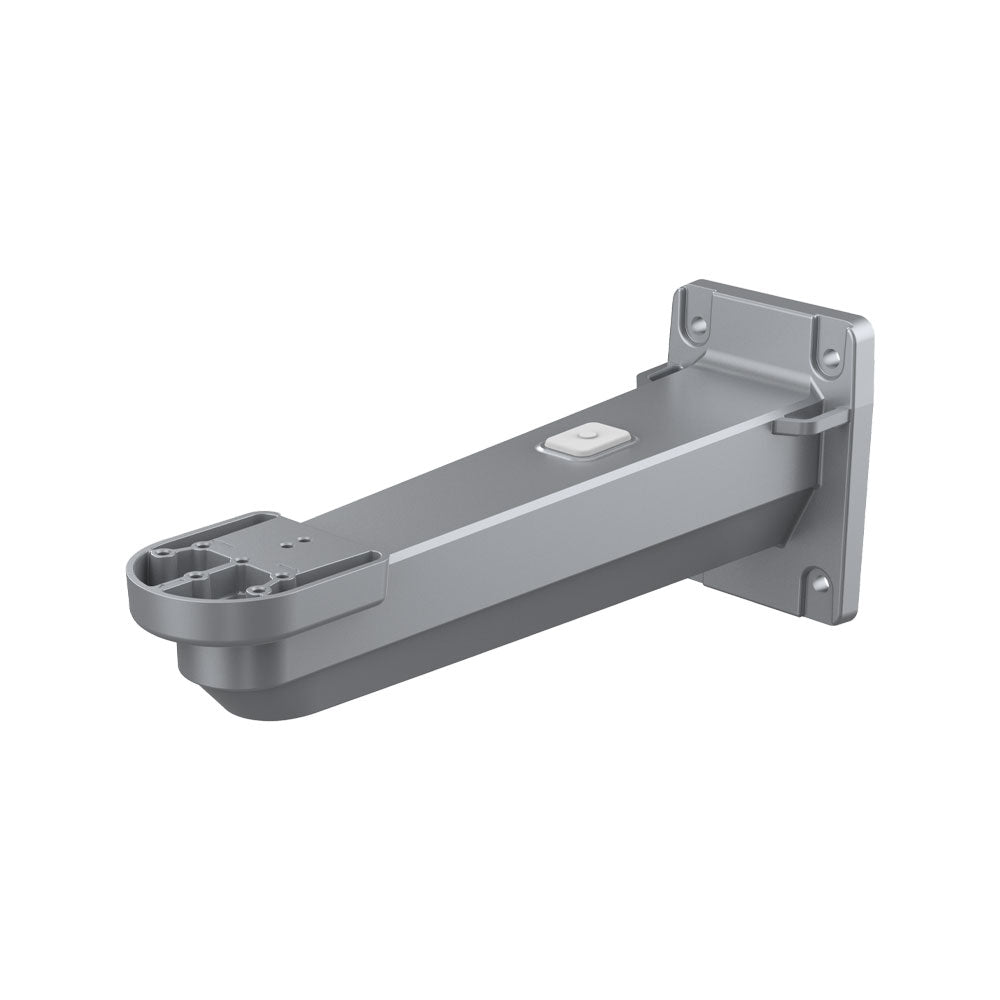

- 1 Dahua DH-PFB7716WA-SG-EX anti-corrosion wall mount
- 4 M6 × 14 external hexagon screws
- 4 M8 × 80 countersunk head screws
- 4 Nuts
- 4 Spring washers
- 4 Flat gaskets
- 4 Expansion plugs
