Description
Technical Specifications

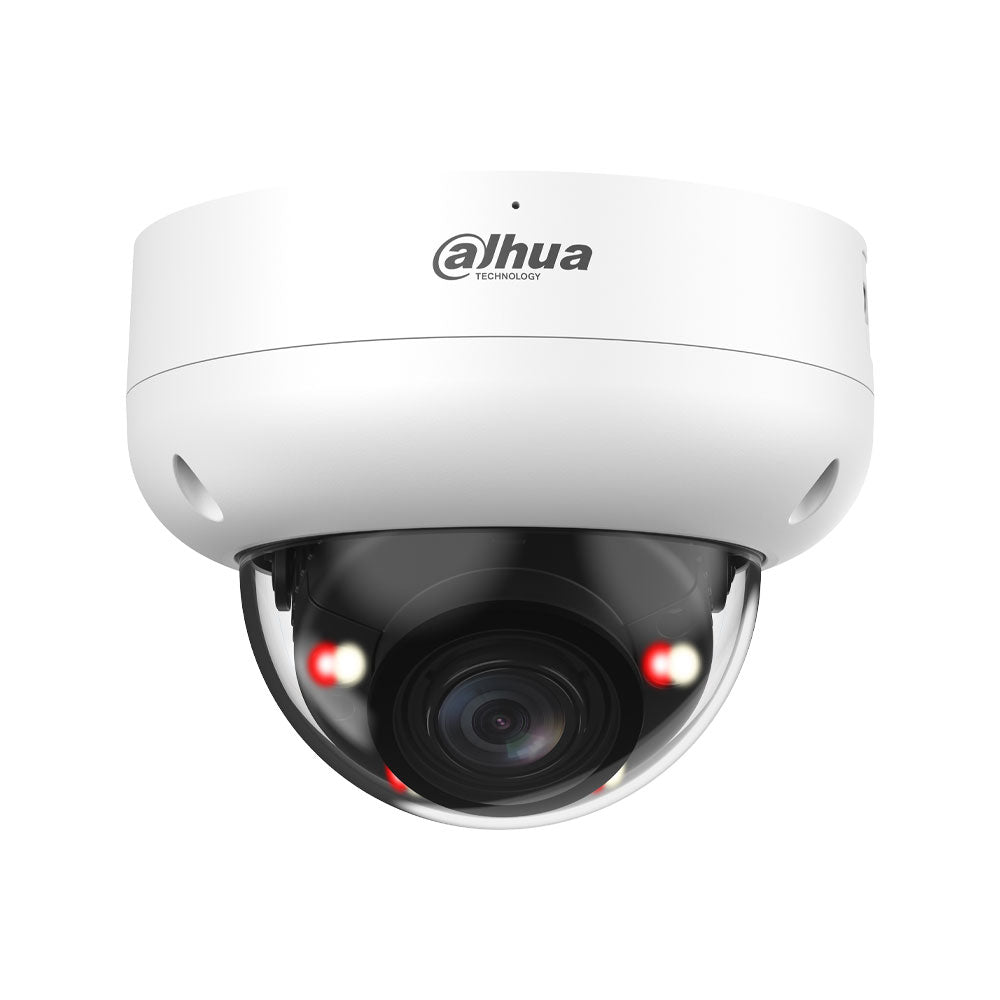

- 2 MP Dahua WizSense 3 IP Mini-Dome with Smart Dual Light
- 1/2.9" 2 MP CMOS sensor
- Maximum resolution 1080p (1920 × 1080)
- Minimum sensitivity 0.002 lux F1.4 in color and 0.0002 lux F1.4 in B/W
- IR illumination up to 50 m and warm light up to 50 m
- 4 multi-core IR illuminators + warm light with automatic or manual control
- Automatic ICR filter, color and B/W
- Signal-to-noise ratio greater than 56 dB
- 2.7 to 13.5 mm motorized varifocal lens with F1.4 aperture
- Horizontal viewing angle 104°~29°, vertical 54°~16° and diagonal 125°~34°
- DORI distance in wide angle: detection 45.7 m, observation 18.3 m, recognition 9.1 m and identification 4.6 m
- DORI distance in telephoto mode: detection 150 m, observation 60 m, recognition 30 m and identification 15 m
Video
- H.265, H.264, H.264H, H.264B and MJPEG compression in substream
- AI H.265 and AI H.264 encoding with Smart H.264+ and Smart H.265+
- 3 stream capacity
- Stream 1: 1080p (1920 × 1080) at 1~25/30 frames per second
- Stream 2: 1080p (1920 × 1080) at 1~25/30 fps
- Stream 3: 1080p (1920 × 1080) at 1~25/30 frames per second
- Resolutions: 1080p (1920×1080), 1.3 M (1280×960), 720p (1280×720), D1, VGA and CIF
- VBR, CBR and ABR bit rate control from 3 kbps to 8192 kbps in H.264/H.265
Features
- 120 dB WDR, BLC, HLC, 3D-NR, ROI and digital watermark
- Motion detection with 4 rectangular zones
- Electronic Image Stabilization (EIS)
- Smart Illumination, Smart Dual Light, Defog and AFSA
- Image rotation at 0°/90°/180°/270° with 90°/270° support in 1080p or less
- Mirror and 8-zone privacy mask
Smart Functions
- Xinghan-Vision AI models with edge AI algorithms and NPU for simultaneous tasks
- IVS with intrusion, tripwire, prolonged presence and loitering detection
- Intrusion and tripwire detection with precise classification and detection of people and vehicles
- Full image facial detection with capture, optimization and facial angle filtering
- SMD 4.0 for target classification and false alarm reduction
- AcuPick with people and vehicle search via compatible back-end devices
- AI SSA for adjusting image parameters based on the scene
- Smart Search with Smart NVR for intelligent search and event extraction
Audio
- Built-in microphone
- G.711a, G.711Mu, PCM, G.726 and G.723 compression
Storage
- FTP, SFTP, NAS storage and MicroSD slot up to 512 GB (card not included)
Alarms
- Events related to missing, full or faulty SD card, network disconnection, IP address conflict and unauthorized access
- Events related to motion detection, video manipulation, scene change, audio detection and voltage
- Smart events related to tripwire, intrusion, presence, loitering, facial detection, SMD and security exceptions
- Blur detection
Network
- RJ45 10/100 Base-T port
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP and P2P
- ONVIF profiles S, G, T and M interoperability, as well as CGI
- SDK and API
- Up to 20 users with a total bandwidth of 64 M
- Compatible with SmartPSS Lite, DSS, DMSS, iOS and Android
Power
- 12 V DC or PoE 802.3af power supply
- Dual backup power with adapter and PoE, no restart in case of source disconnection
- Basic consumption of 2.9 W at 12 V DC and 3.6 W via PoE
- Maximum consumption of 8.6 W at 12 V DC and 10.8 W via PoE with H.265, WDR, warm light and smart functions enabled
Environmental Conditions
- Operating temperature from -30 °C to +60 °C
- Operating humidity ≤ 95% RH non-condensing
- Storage temperature: from -40 °C to +60 °C
- Storage humidity ≤ 95% RH non-condensing
- IP67 and IK10 protection rating
Physical Characteristics
- Metal casing
- 3-axis adjustment with rotation from 0° to 355°, tilt from 0° to 80° and pan from 0° to 355°
- Dimensions: 94.0 mm × Φ122.0 mm
- Net weight: 560 g
- Gross weight: 740 g
Contents
- DAHUA-5351 IP mini-dome camera (DH-IPC-HDBW3249RP-ZS-IL-27135)
Certifications and Standards
- CE-LVD compliant with EN62368-1
- CE-EMC compliant with Electromagnetic Compatibility Directive 2014/30/EU
