Description
Technical Specifications
- 1/1.8" CMOS sensor
- Maximum resolution of 4MP (2688 × 1520)
- Automatic day/night mode (ICR), color and B/W
- Minimum illumination of 0.0003 lux@F1.2 in color, 30 IRE
- Minimum illumination of 0.0001 lux@F1.2 in B/W, 30 IRE
- 0 lux with illuminator activated
- Smart Dual Light with IR up to 60 m and warm light up to 50 m
- 4 multi-conductor IR and warm light lamps
- Automatic, manual and zoom priority illuminator control
- 2.7-12 mm motorized lens with Φ16 mount
- Maximum aperture F1.2
- Field of view H: 114°-48°; V: 59°-27°; D: 143°-56°
- P-Iris automatic diaphragm
- Minimum focus distance 0.2 m
Video Stream
- Video compression H.265, H.264, H.264H, H.264B and MJPEG on substream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 4 stream capacity
- Stream 1: 4MP (2688 × 1520)@1-25/30 fps
- Stream 2: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Stream 4: 720P (1280 × 720)@1-25/30 fps
- Resolutions 4MP, 3MP, 1080P, 1.3M, 720P, D1, VGA and CIF
- VBR and CBR bitrate control
- H.264 bitrate from 3 kbps to 16384 kbps
- H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC and real WDR 140 dB
- 3D NR noise reduction
- SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RoI with 4 zones
- EIS electronic image stabilization
- Smart Illumination
- Smart Dual Light
- WizColor for color image in night scenes
- Defog
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 4 mosaics or 8 color blocks
- LDC distortion correction
Smart Functions
- Xinghan Vision large-scale AI models for object detection, scene recognition and adaptation
- IVS perimeter protection with intrusion, line crossing and fast movement with classification of vehicles, animals and people
- Loitering, crowd gathering, parking and dwelling detection
- Large-scale AI models for perimeter protection with expanded target detection range
- Self-learning for false alarm filtering
- SMD 4.0
- AcuPick for searching and locating people, animals and motor vehicles in live and recorded videos
- Face detection with capture, capture optimization, face enhancement and face exposure
- Extraction of 6 attributes and 8 facial expressions
- People counting by line crossing with daily, weekly, monthly and annual reports
- People counting by area and queue management with daily, weekly and monthly reports
- Up to 4 rules for line crossing, people counting in areas and queue management
- Heat map
- Video metadata for motor vehicles, non-motor vehicles, faces and human bodies
- Extraction of 6 motor vehicle attributes and 6 non-motor vehicle attributes
- Extraction of 6 face attributes and 8 human body attributes
- Smart search with Smart NVR for refined search, event extraction and event video merging
Active Deterrence
- Light warning with warm light
- Flash duration or fixed duration from 5s to 30s
- High, medium or low flash frequency
- Acoustic warning with 11 sound alarms
- Import a maximum of 10 custom sound alarms
- Adjustable sound warning volume from 0 to 100
- Configurable acoustic warning playback from 1 to 10 times
Audio
- Built-in dual microphone
- Built-in speaker
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- Audio compression G.711a, G.711Mu, PCM, G.726 and G.723
Storage
- MicroSD card slot up to 1TB (card not included)
- FTP, SFTP and NAS storage
Alarms
- 1 alarm input compatible with wet contact up to 5 mA at 3-5 VDC and dry contact
- 1 alarm output via dry contact up to 1000 mA at 30 VDC or 500 mA at 50 VAC
- Alarms for missing SD card, full card or SD card error
- Alarm for network disconnection, IP address conflict and illegal access
- Motion detection and video tampering alarms
- Line crossing, intrusion, fast movement, loitering and crowd gathering alarms
- Parking, scene change, audio detection and voltage detection alarms
- External alarm, face detection, video metadata and SMD alarm events
- Alarm events for people counting, zone counting, dwell time, people count error, queue alarm, waiting time alarm, security exception and defocussing
Communication Interface
- 1 RS-485 interface with transmission speed from 1200 bps to 115200 bps
Network
- Enhanced RJ45 10/100 Base-T interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and auto-registration
- Support for ONVIF profiles S, G, T and M
- CGI support
- 20 users or hosts with a total bandwidth of 80 M
- Supported browsers IE 11 and above, Chrome 102 and above, Firefox 88 and above
- DSS, DMSS and DoLynk Care management software
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lockout, security logs and IP/MAC filtering
- X.509 certificate generation and import, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, Session Security and Security Warning
Power Supply
- 12 VDC power supply with ±30% tolerance
- PoE+ IEEE 802.3at
- ePoE
- 12 VDC power output with a maximum current of 165 mA and a peak current of 700 mA
- Dual redundant power supply when adapter and PoE simultaneously power the device
- Basic power consumption of 4.1 W at 12 VDC
- 4.8 W basic power consumption with PoE
- 21.6 W maximum power consumption at 12 VDC with IR, WDR, intelligence and acoustic and light active deterrence
- 24.2 W maximum power consumption with PoE with IR, WDR, intelligence and acoustic and light active deterrence
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Operating humidity ≤95% RH non-condensing
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity ≤95%RH non-condensing
- IP67 protection
- IK10 vandal protection
- Professional corrosion protection for sensitive environments such as chemical plants, docks, coasts and areas exposed to acid rain
- Reliable use in areas up to 2 km from the coastline
Physical Characteristics
- 3AXIS angle adjustment with pan from 0° to 360°, tilt from 0° to 78° and rotation from 0° to 360°
- Installation on junction box, ceiling, wall or vertical pole with compatible corrosion-resistant fittings
- Enhanced anti-corrosion aluminum alloy housing
- Dimensions: 127.6 mm × Φ122 mm
- Net weight: 0.92 kg
- Gross weight: 1.15 kg
Contents

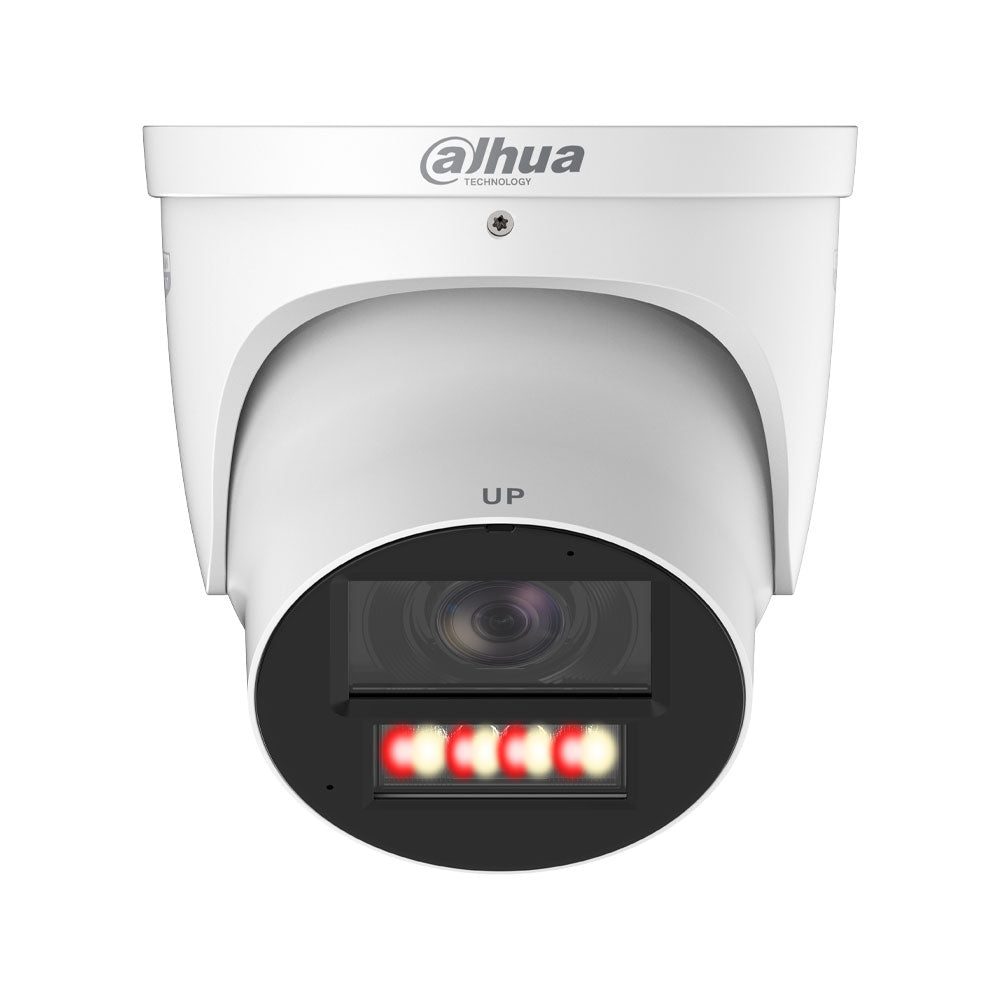

- Anti-corrosion IP dome with motorized lens DAHUA-5350 (IPC-HDW5459H-ZE-PV-PRO-ATC)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC compliant with EMC Directive 2014/30/EU
- NEMA 4X
- C5-H
