Description
Technical specifications
- 1/1.8" CMOS sensor
- Maximum resolution of 4MP (2688 × 1520)
- Automatic day/night mode (ICR), color and B/W
- Minimum illumination of 0.0004 lux@F1.0 in color, 30 IRE
- Minimum illumination of 0.0003 lux@F1.0 in black and white, 30 IRE
- 0 lux with illuminator on
- IR illumination up to 60 m
- Warm light up to 50 m
- 4 multi-conductor IR lamps and warm light
- Automatic or manual illuminator control
- 2.8 mm fixed lens with M16 mount
- Maximum aperture F1.0
- Field of view H: 111°; V: 60°; D: 135° Fixed iris
- Fixed iris
- Minimum focusing distance of 2 m
Video stream
- H.265, H.264, H.264H, H.264B, and MJPEG video compression on sub stream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 4-stream capability
- Stream 1: 4MP (2688 × 1520)@1-25/30 fps
- Stream 2: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Stream 4: 720P (1280 × 720)@1-25/30 fps
- Resolutions 4MP, 3MP, 1080P, 1.3M, 720P, D1, VGA and CIF
- VBR and CBR bitrate control
- H.264 bitrate from 3 kbps to 16384 kbps
- H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC and true WDR 140 dB
- 3D NR noise reduction
- SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual, and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- RdI with 4 zones
- Smart Illumination
- Smart Dual Light
- WizColor for a color image in night scenes
- Defogging
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 4 mosaics or 8 color blocks
- LDC distortion correction
Smart Functions
- Xinghan Vision's large-scale AI models for object detection and recognition and scene adaptation
- AI Rule Assist for automatic creation of IVS rules based on Xinghan Vision models
- IVS perimeter protection with intrusion, line crossing and rapid movement with classification of vehicles, animals and people
- Detection of loitering, crowd gathering, parking, and occupancy
- Large-scale AI models for perimeter protection with extended target detection range
- Self-learning for false alarm filtering
- SMD 4.0
- AcuPick for searching and locating people, animals, and motor vehicles in live and recorded videos
- Face detection with capture, capture optimization, face enhancement, and face exposure
- Extraction of 6 attributes and 8 facial expressions
- People counting by line crossing with daily, weekly, monthly, and annual reports
- People counting by area and queue management with daily, weekly, and monthly reports
- Up to 4 rules for line crossing, people counting in zones, and queue management
- Heatmap
- Video metadata for motor vehicles, non-motor vehicles, faces, and human bodies
- Extraction of 6 motor vehicle attributes and 6 non-motor vehicle attributes
- Extraction of 6 face attributes and 8 human body attributes
- Smart search with Smart NVR for refined search, event extraction, and event video merging
Active Deterrence
- Light warning with warm light
- Flashing duration or fixed duration from 5s to 30s
- Flashing frequency high, medium or low
- Acoustic warning with 11 sound alarms
- Import up to 10 custom sound alarms
- Acoustic warning volume adjustable from 0 to 100
- Acoustic warning playback configurable from 1 to 10 times
Audio
- Built-in dual microphone
- Built-in speaker
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- Audio compression G.711a, G.711Mu, PCM, G.726 and G.723
Storage
- MicroSD card slot up to 1 TB (card not included)
- FTP, SFTP and NAS storage
Alarms
- 1 alarm input with wet contact of 5 mA at 3-5 VDC
- 1 alarm output with dry contact of 1000 mA at 30 VDC or 500 mA at 50 VAC
- Alarms for no SD card, card full or SD card error
- Alarm events due to network disconnection, IP address conflict and illegal access
- Motion detection and video tampering alarms
- Line crossing, intrusion, rapid movement, loitering and crowd gathering alarms
- Parking, scene change, audio detection and voltage detection alarms
- External alarm, face detection, video metadata and SMD alarm events
- Alarm events for people counting, zone counting, loitering duration, people number error, queue alarm, queue duration alarm and security exception
Communication interface
- 1 RS-485 interface with a speed range of 1200 bps to 115200 bps
Network
- RJ45 10/100 Base-T interface enhancement
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and automatic recording
- ONVIF Profile S, G, T and M support
- CGI support
- 20 users or hosts with a total bandwidth of 80 M
- Supported browsers IE 11 and above, Chrome 102 and above, Firefox 88 and above
- Care management software DSS, DMSS and DoLynk
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lockout, security logs and IP/MAC filtering
- X.509 certification generation and import, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, Session Security and Security Warning
Power Supply
- 12 VDC power supply with ±30% tolerance
- PoE+ IEEE 802.3at
- ePoE
- 12 VDC power output with a maximum current of 165 mA and a peak current of 700 mA
- Dual redundant power supply when adapter and PoE power the device simultaneously
- Base consumption of 4.1 W at 12 VDC
- 4.8 W base power consumption with PoE
- 21.6 W maximum power consumption at 12 VDC with IR, WDR, intelligence and acoustic and light active deterrence
- 24.2 W maximum power consumption with PoE with IR, WDR, intelligence and acoustic and light active deterrence
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity ≤95% RH non-condensing
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity ≤95%RH non-condensing
- IP67 protection
- IK10 vandal protection
Physical Characteristics
- 3-AXIS angular adjustment with pan from 0° to 360°, tilt from 0° to 78° and pivot from 0° to 360°.
- Installation in a junction box, ceiling, corner, wall or pole with compatible accessories.
- Metal housing
- Dimensions: 127.6 mm × Φ122 mm
- Net weight: 0.92 kg
- Gross weight: 1.15 kg
Content

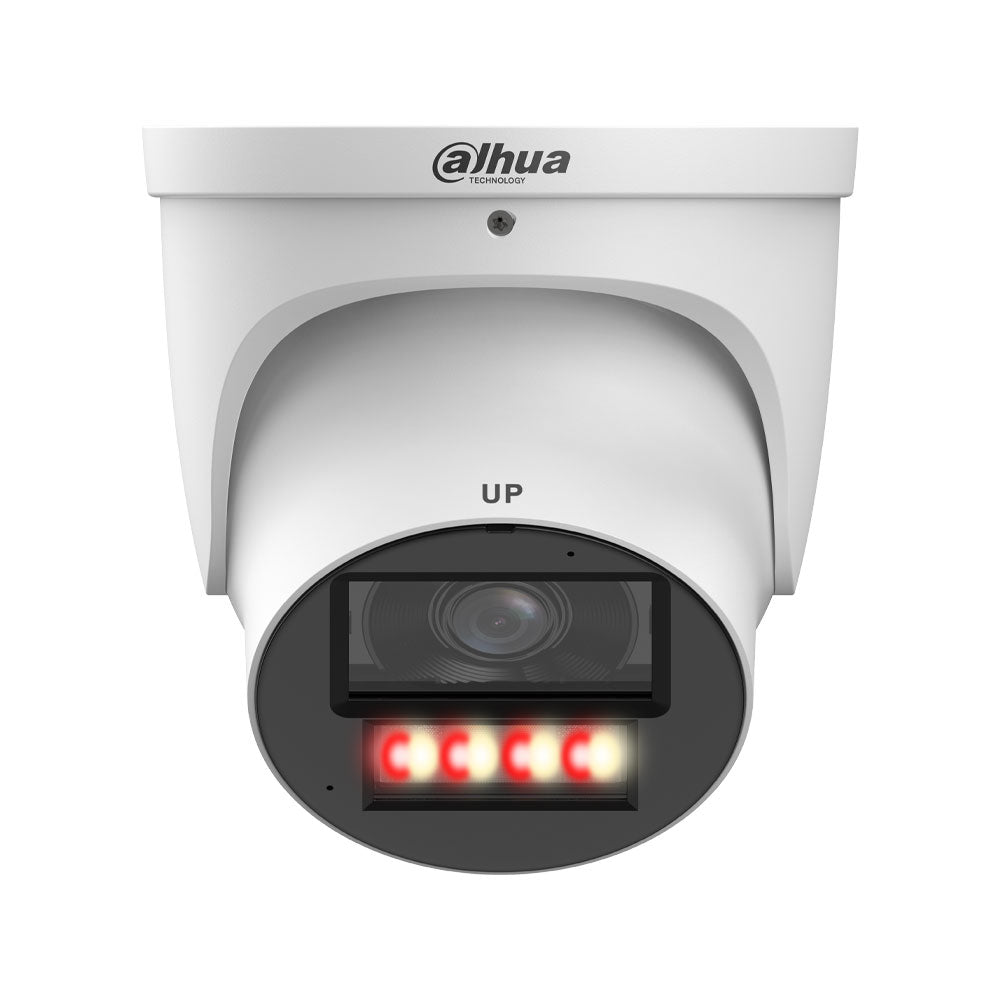

- IP Dome with WizColor and fixed lens DAHUA-5344 (DH-IPC-HDW5459HP-ASE-PV-0280B-PRO)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC in accordance with Electromagnetic Compatibility Directive 2014/30/EU
