Description
Technical Features
- 1/1.8" CMOS sensor
- 8MP (3840 × 2160) maximum resolution
- 256MB ROM and 1GB RAM
- Progressive scan system
- Automatic/manual electronic shutter from 1/3 s to 1/100000 s
- Automatic day/night mode (ICR), color and B/W
- Minimum illumination of 0.0006 lux@F1.2 in color, 30 IRE
- Minimum illumination of 0.0003 lux@F1.2 in black and white, 30 IRE
- 0 lux with illuminator on
- Signal-to-noise ratio greater than 56 dB
- IR illumination up to 50 m
- Warm light up to 50 m
- 4 multi-color IR lamps and warm light
- Automatic, manual and zoom priority control of the illuminator
- 2.7-12 mm motorized optic with Φ16 mount
- Maximum aperture F1.2
- Field of view H: 112°-48°; V: 58°-27°; D: 137°-55° Fixed Iris
- Fixed Iris
- Minimum focus distance of 1.75 m for wide angle and 5.21 m for telephoto
- DORI at wide angle with detection at 87.6 m, observation at 35 m, recognition at 17.5 m and identification at 8.8 m
- DORI at telephoto with detection at 186.6 m, observation at 74.6 m, recognition at 37.3 m and identification at 18.7 m.
Video Stream
- Video compression H.265, H.264, H.264H, H.264B and MJPEG on substream
- AI H.265 and AI H.264 encoding
- Smart H.265+ and Smart H.264+
- 3-stream capability
- Stream 1: 8MP (3840 × 2160)@1-25/30 fps
- Stream 2: 1080P (1920 × 1080)@1-25/30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Resolutions 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, VGA and CIF
- CBR, VBR and ABR bitrate control
- H.264 bitrate from 3 kbps to 16384 kbps
- H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC and real WDR 120 dB
- 3D NR noise reduction
- AI SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual and custom regional white balance
- Automatic gain control
- Motion detection with 4 rectangular zones
- ROI with 4 zones
- EIS electronic image stabilization
- Smart illumination
- Smart Dual Light
- WizColor for full-color image in night scenarios
- Defog
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 8 zones
Smart Functions
- Xinghan Vision large-scale AI models for target detection and scene adaptation
- IVS perimeter protection with intrusion and line crossing with vehicle and people classification
- Loitering and lingering detection
- SMD 4.0
- AcuPick for searching and locating people and motor vehicles in live and recorded videos
- Full image face detection with facial capture, optimization and capture enhancement
- Capture of a face or a thumbnail photo
- Real-time capture strategies, quality priority and capture optimization
- Face angle filter and optimization time adjustment
- Smart search with Smart NVR for refined search, event extraction and merging into event videos
TiOC PRO Active Deterrence
- Acoustic and light alarm for perimeter protection events
- Light warning with red and blue lights
- Integrated voice announcement with multiple selectable voices
- Custom voice import
- One-touch arming and disarming
- Configurable SMD zone in warm light areas with alarm activation
Audio
- Dual built-in microphone
- Built-in speaker with maximum power of 2 W and maximum sound level of 110 dB at 10 cm
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- PCM, G.711a, G.711Mu, G.726 and G.723 audio compression
Storage
- MicroSD card slot up to 512 GB (card not included)
- FTP, SFTP and NAS storage
Alarms
- 1 alarm input with 5 mA wet contact at 3-5 VDC
- 1 dry contact alarm output of 1000 mA at 30 VDC or 500 mA at 50 VAC
- Alarms for no SD card, full card or SD card error
- Alarm events due to network disconnection, IP address conflict and illegal access
- Motion detection and video tampering alarms
- Alarm events for crossline, intrusion, stopping, loitering and full-image facial detection
- Alarms for scene change, audio detection, voltage detection, defocus, SMD and security exception
Network
- RJ45 10/100/1000 Base-T interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour and auto registration
- ONVIF S, G, T and M profiles support
- CGI support
- 20 users or hosts with 64M total bandwidth
- Supported browsers IE11, Chrome and Firefox
- Smart PSS Lite, DSS, DMSS, DMSS and DoLynk Care management software
- Mobile client for iOS and Android
- Security with Digest, WSSE, account lock, security logs and IP/MAC filtering
- Generation and import of X.509 certifications, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution and Trusted Upgrade
Power Supply
- 12 VDC power supply
- PoE+ IEEE 802.3at
- Dual redundant power supply when adapter and PoE power the device simultaneously
- Basic power consumption of 4.1 W at 12 VDC
- 5.3 W basic power consumption with PoE
- 11.3 W maximum power consumption at 12 VDC with H.265, WDR, warm light, active acoustic and light deterrence and intelligence activated
- 13.8 W maximum power consumption with PoE with H.265, WDR, warm light, active acoustic and light deterrence and intelligence activated
Environment
- Operating temperature -30°C to +60°C (-30°F to +60°F)
- Operating humidity ≤95%
- 40°C to +60°C storage temperature
- Storage humidity ≤95% RH non-condensing
- IP67 protection
Physical Characteristics
- 3AXIS angular adjustment with pan from 0° to 360°, tilt from 0° to 78° and rotation from 0° to 360°.
- Installation in a junction box, vertical pole or wall with compatible accessories
- Metal housing
- Dimensions: 127.6 mm × Φ122 mm
- Net weight: 0.94 kg
- Gross weight: 1.17 kg
Content

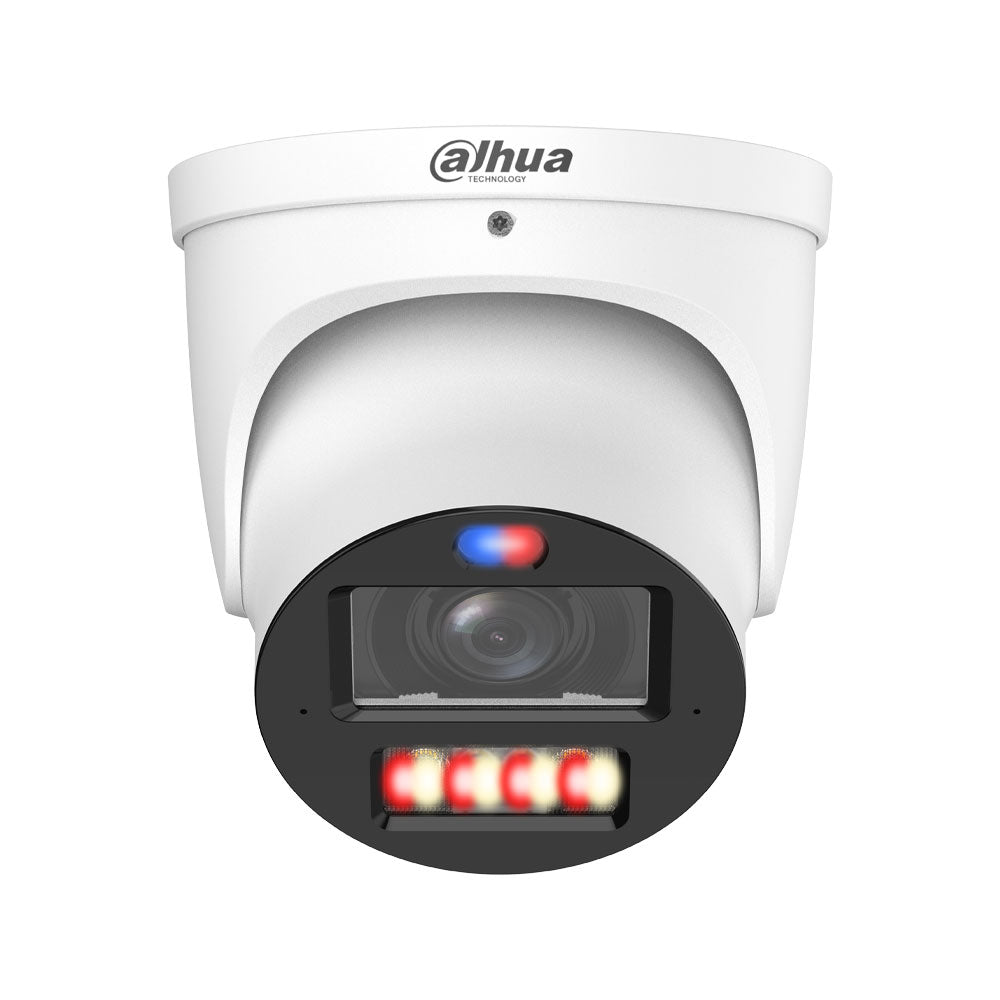

- IP Dome with TiOC PRO and motorized optic DAHUA-5343 (DH-IPC-HDW3849HP-ZAS-PV-2712-PRO)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC according to Electromagnetic Compatibility Directive 2014/30/EU
