Description
Technical Specifications

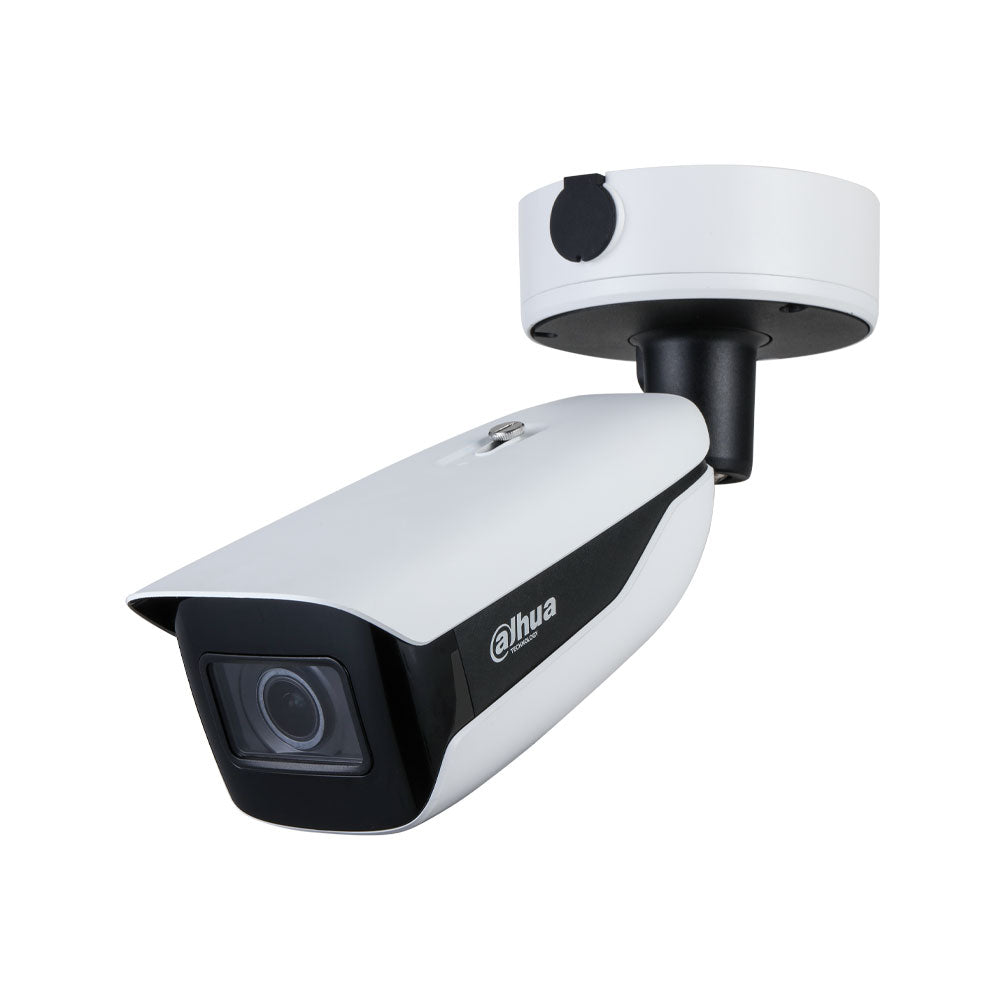

- Dahua WizMind 7 4MP IP camera with motorized lens for outdoor use
- 1/1.8" 4-megapixel progressive CMOS sensor
- Maximum resolution of 4MP (2688 × 1520)
- Automatic day/night mode (ICR), color and black and white
- Minimum illumination of 0.001 lux@F1.2 in color, 30 IRE
- Minimum illumination of 0.0002 lux@F1.2 in B/W, 30 IRE
- 0 lux with illuminator on
- IR illumination up to 60m
- 4 IR LEDs
- Automatic or manual illuminator control
- 2.7 to 12mm motorized lens with module interface
- Maximum aperture F1.2
- Horizontal field of view 114°-47
- Vertical field of view 59°-27
- Diagonal field of view 141°-55
- Auto iris with precise control
- Minimum focusing distance of 1m at wide angle and 2.5m at telephoto
Video Stream
- H.265, H.264, H.264H, H.264B, and MJPEG video compression in sub-stream
- Smart H.265+ and Smart H.264+
- 5 stream capacity
- Stream 1: 4MP (2688 × 1520)@1-50/60 fps
- Stream 2: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Stream 3: 1080P (1920 × 1080)@1-25/30 fps
- Stream 4: 1080P (1920 × 1080)@1-25/30 fps
- Stream 5: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
- Resolutions 4MP, 3MP, 1080P, 1.3M, 720P, D1, VGA, and CIF
- CBR and VBR bitrate control
- H.264 bitrate from 32 kbps to 10240 kbps
- H.265 bitrate from 12 kbps to 10240 kbps
Features
- BLC, HLC, and true WDR 140 dB
- 3D NR noise reduction
- SSA automatic scene adaptation
- Automatic, natural, street light, outdoor, manual, and custom regional white balance
- Automatic or manual gain control
- Motion detection with 4 rectangular zones
- ROI with 4 zones
- EIS electronic image stabilization
- Smart illumination
- Defog
- Image rotation 0°, 90°, 180°, and 270°
- Mirror
- Privacy masking with 8 zones
- Privacy protection with detected face and body masking
Smart Functions
- Smart event for abandoned objects and moving objects
- IVS perimeter protection with tripwire, intrusion, and rapid movement with vehicle and person classification
- Parking, loitering, and crowd gathering detection
- Face detection with tracking, priority, capture, and optimized image upload
- Face recognition in general mode and counting mode
- Up to 5 facial databases with a total of 50000 facial images
- Non-living person filtering
- Human face and body association
- PPE detection (mask, helmet, glasses, safety vest, top and bottom color)
- RAPI with tracking, priority, and capture
- RAPI attributes of license plate, vehicle type, and vehicle color
- Additional attributes for seatbelt, smoking, and phone calls
- Video metadata for human body, face, motor vehicle, and non-motor vehicle capture
- Target counting according to A>B, B>A, or A<->B directions
- People counting by line crossing, area counting, and annual, monthly, and daily reports
- Queue management with monthly and daily reports
- Up to 4 tripwire rules, 4 people counting zones, and 4 queue management functions
- Smart search with Smart NVR for refined search, event extraction, and event video merging
Audio
- 1 audio input
- 1 audio output
- G.711a, G.711Mu, G.726, and G.723 audio compression
Storage
- MicroSD card slot up to 256GB (card not included)
- FTP, SFTP, and NAS storage
Alarms
- 3 alarm inputs at 5 mA and 5 VDC
- 2 alarm outputs at 1000 mA @ 30 VDC or 500 mA @ 50 VAC
- Alarms for SD card absence, full card, or SD card error
- Alarms for network disconnection, IP conflict, and illegal access
- Motion detection and video tampering alarms
- Tripwire, intrusion, rapid movement, abandoned object, and missing object alarms
- Loitering, crowd, parking, and scene change alarms
- Audio detection, defocus, external alarm, face detection, and people counting alarms
- Queue management, face and body detection, attribute matching, and face recognition alarms
Communication Interface
- 1 RS-485 interface with a transmission speed of 1200 bps to 115200 bps
- BNC output
Network
- RJ45 10/100/1000 Base-T interface
- SDK and API
- IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP, and Bonjour protocols
- ONVIF Profile S, G, and T support
- CGI, Milestone, Genetec, P2P, and RTMP support
- 20 users or hosts with a total bandwidth of 80M
- Supported browsers IE 9 and higher, Chrome 42 and higher, Firefox 48.0.2 and higher
- Smart PSS, DSS, and DMSS management software
- Mobile client for iOS and Android
- Security with video encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, and IP/MAC filtering
- X.509 certification generation and import, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, and Trusted Upgrade
Power Supply
- 12 VDC, 24 VAC, or PoE+ IEEE 802.3at power supply
- ePoE
- 12 VDC power output with a maximum current of 165 mA
- Basic power consumption of 3.7W at 12 VDC
- 5.7W basic power consumption at 24 VAC
- 5.5W basic consumption with PoE
- 12.2W max consumption at 12 VDC with max stream, smart function, IR LED, and focus
- 17.3W max power consumption at 24 VAC with max stream, smart function, IR LED, and focus
- 17.1W max power consumption at PoE with max stream, smart function, IR LED, and focus
- 3.3W at 12 VDC, 5.5W at 24 VAC, or 5.5W with PoE heating consumption
Environment
- Operating temperature -40°C to +65°C (-40°F to +40°F)
- Operating humidity below 95% RH
- Storage temperature -40°C to +65°C (-40°F to +65°F)
- IP67 protection
- IK10 vandal protection
Physical Characteristics
- 3AXIS angular adjustment with pan from 0° to 360°, tilt from 0° to 90°, and rotation from 0° to 360°
- Ceiling, wall, or pole installation with a compatible accessory
- Metal and plastic housing
- Dimensions: 340.1 mm × 108.5 mm × 92.9 mm
- Net weight: 1600 g
- Gross weight: 2400 g
Content
- DAHUA-5324 IP camera with motorized lens (DH-IPC-HFW7442HP-Z-0832-DC12AC24V-ATC-X)
Certifications and Standards
- CE-LVD EN62368-1
- CE-LVD EN60950-22
- CE-EMC in accordance with Electromagnetic Compatibility Directive 2014/30/EU
- FCC 47 CFR FCC Part 15, Subpart B
- UL/CUL UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
