Description
Technical specifications
- Channel 1
- 1/2.8 CMOS sensor
- Maximum 2MP resolution (1920×1080)
- Minimum illumination of 0.0007 lux at F1.6 in colour, 30 IRE
- Minimum illumination of 0.0004 lux at F1.6 in black and white, 30 IRE
- 0 lux with illuminator on
- 3.6 mm fixed optics
- Maximum aperture F1.6
- 85.9° horizontal, 46.7° vertical and 100.4° diagonal viewing angle
- Minimum focus distance of 1.1 m
- Channel 2
- 1/2.8 CMOS sensor
- Maximum 2MP resolution (1920×1080)
- Minimum illumination of 0.004 lux at F2.0 in colour, 30 IRE
- Minimum illumination of 0.0005 lux at F2.0 in black and white, 30 IRE
- 0 lux with illuminator on
- 12 mm fixed optics
- Maximum aperture F2.0
- 25.7° horizontal, 14.4° vertical and 29.5° diagonal viewing angle
- Minimum focus distance of 8.6 m
- Channel 3
- 1/2.8 CMOS sensor
- Maximum 2MP resolution (1920×1080)
- Minimum illumination of 0.008 lux at F2.8 colour, 30 IRE
- Minimum illumination of 0.0008 lux at F2.8 black and white, 30 IRE
- 0 lux with illuminator on
- 25 mm fixed lens
- Maximum aperture F2.8
- 13° horizontal, 7.4° vertical, 14.9° diagonal viewing angle
- Minimum focus distance of 19.6 m
- Automatic day/night mode with ICR, colour and B/W
- IR illumination up to 100 m
- Automatic and manual illumination control
- 8 integrated IR LEDs
- Micro PTZ with vertical adjustment from -5° to 10°
Video
- H.265, H.264, H.264H, H.264B and MJPEG compression on sub-stream
- Stream 1: 1920 × 1080 at 1~25 fps on channels 1 to 3
- Stream 2: 704 × 576 at 1~25 fps on channels 1 to 3
- 1080P resolution (1920×1080) on channels 1 to 3
- VBR and CBR bitrate control
- H.264 bitrate from 3 kbps to 8192 kbps on channels 1 to 3
- H.265 bitrate from 3 kbps to 8192 kbps on channels 1 to 3
Features
- BLC, HLC and digital WDR
- Automatic scene adaptation
- Automatic, natural, street lamp, outdoor, manual and custom regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Motion detection OFF/ON with 4 rectangular zones
- ROI with 4 zones
- Zone illumination in 6 zones
- Smart illumination
- Defogging
- Privacy with 8 zones
- AI-ISP for scene adaptation and detail enhancement
Smart features
- Perimeter protection on channels 1 to 3
- Intrusion and line crossing with precise classification of people and vehicles
- Long-range perimeter protection with detection of people and vehicles at 100 m and beyond
- Smart Search with Smart NVR for refined smart search, event extraction and merging.
- Alarms are managed via channel 1
Positioner
- Micro PTZ with vertical adjustment from -5° to 10°
Audio
- Dual built-in microphone
- Built-in speaker
- Two-way audio
- Audio compression G.711a, G.711Mu, PCM, G.726 and G.723
- 1 audio input via RCA port
- 1 audio output via RCA port
Storage
- MicroSD up to 1 TB (card not included)
- FTP
- SFTP
- NAS
Alarms
- 2 alarm inputs with 5 mA wet contact and 3~5 VDC
- 2 alarm outputs with 300 mA wet contact and 12 VDC
- Alarm events for SD card missing, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, line crossing, intrusion, security exception, scene change, audio detection, voltage detection and external alarm.
Communication interface
- 1 RS-485 port with configurable speed from 1200 bps to 115200 bps
- 12 VDC power output with a maximum current of 165 mA and a peak current of 700 mA
Network
- RJ45 10/100 Base-T port
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and Bonjour
- ONVIF Profile S, Profile G, Profile T and Profile M
- CGI
- 20 users with a total bandwidth of 80 M
- Browsers IE 9 and above, Edge 79 and above, Chrome 102 and above and Firefox 88 and above
- Software Smart PSS Lite, DSS, DMSS, DMSS and DoLynk Care
Power supply
- 12 VDC (±30%), 802.3at PoE+ and ePoE
- Dual backup power supply with continuity of operation in case of disconnection of one of the two sources
- Base consumption of 4.3 W at 12 VDC and 5.5 W via PoE
- Maximum consumption of 22.1 W at 12 VDC and 23.6 W via PoE with intelligence activated, IR activated and speaker activated.
Environment
- Operating temperature -40°C to +60°C (-40°F to +140°F)
- Operating humidity up to 95% non-condensing
- Storage temperature -40°C to +60°C (-40°F to +140°F)
- Storage humidity up to 95% non-condensing
- IP67 protection
Physical characteristics
- Metal material
- Black colour
- Wall mount, junction box, horizontal pole and vertical pole with optional accessories
- 3AXIS with horizontal from 0° to 360°, vertical from 0° to 70° and rotation from 0° to 360°.
- The horizontal level is displayed by a gradient to facilitate installation.
- Dimensions 278.6 mm × 124.0 mm × 140.4 mm
- Net weight 2.4 kg
- Gross weight 3.06 kg
Contents

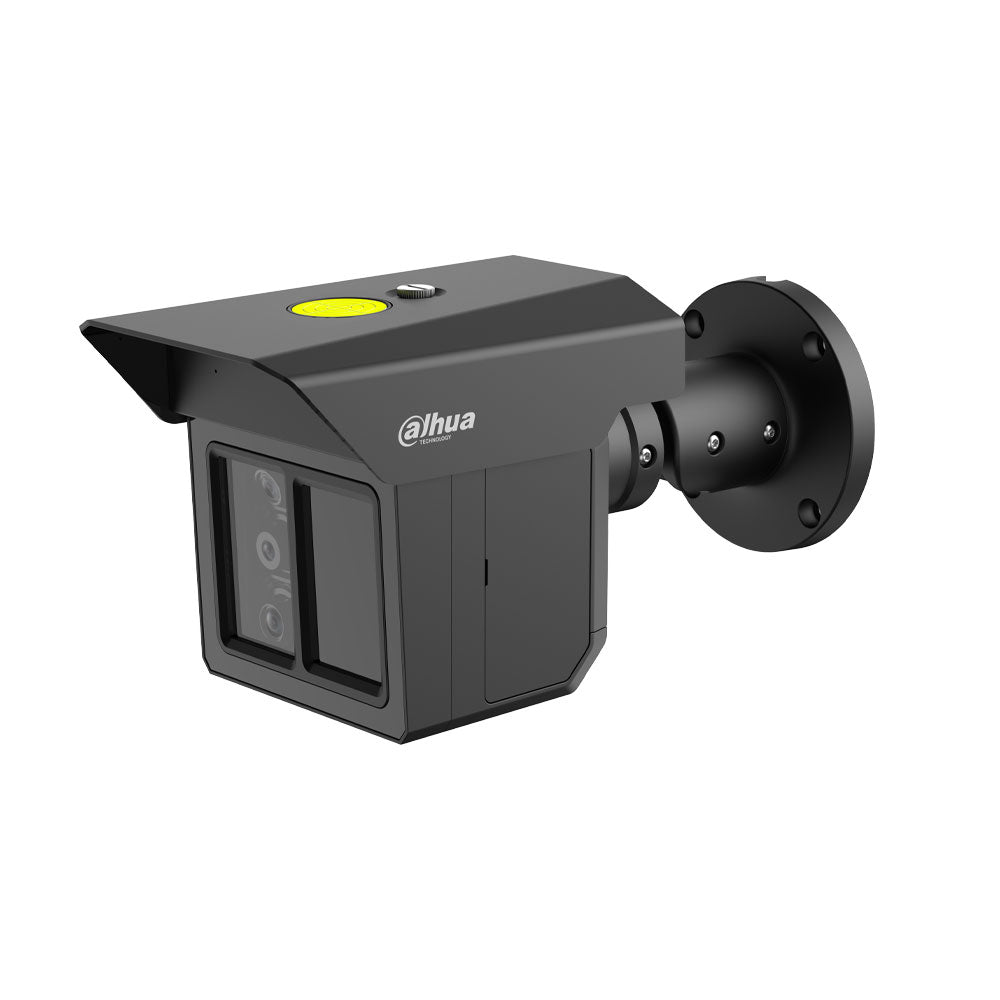

- Dahua WizMind 5 triple optical IP camera DAHUA-5313 (DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B-QH-Black)
Certifications and standards
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
