Description
Technical specifications
- Dual CMOS sensor with 1/1.8" fixed module and 1/2.8" PT module
- Maximum resolution of 4MP (2688×1520) on the fixed module
- Maximum resolution of 1080P (1920×1080) on the PT module
- Day/night color mode on both modules
- Minimum illumination of 0.0005 lux at F1.0 in color, 30 IRE, on both modules
- 0 lux with illuminator activated on both modules
- Warm light illumination up to 30m on the fixed module
- Warm light illumination up to 50m in the PT module
- Manual, automatic and off illumination control on both modules
- 4 warm lights in the fixed module
- 4 warm lights on the PT module
- 2.8mm fixed optic on the fixed module
- 3.6~8.4mm PT optic
- Maximum aperture F1.0 on both modules
- Fixed module viewing angle: 112° horizontal, 60° vertical and 134° diagonal
- PT module viewing angle 81.5°~15.1° horizontal, 44.3°~8.4° vertical, 96.3°~17.88° diagonal
- 6x hybrid zoom
- Minimum focus distance of 1.8m on the fixed module
- Minimum focus distance of 1.7m to 6m on the PT module
- Fixed iris on both modules
Video
- Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H and MJPEG compression on sub-stream
- 2 streams in both modules
- Stream 1 of fixed module: 4M, 3M, 1080P, 1.3M and 720P at 1~25/30 fps
- Stream 2 of fixed module: D1, VGA and CIF at 1~25/30 fps
- Stream 1 of PT module: 1080P, 1.3M and 720P at 1~25/30 fps
- Stream 2 of PT module: D1, VGA and CIF at 1~25/30 fps
- Fixed module resolutions: 4M, 3M, 1080P, 1.3M, 720P, D1, VGA and CIF
- PT module resolutions: 1080P, 1.3M, 720P, D1, VGA and CIF
- CBR and VBR bitrate control
- H.264 bitrate of fixed module from 96 kbps to 8192 kbps
- H.265 bitrate of fixed module from 38 kbps to 8192 kbps
- H.264 bitrate of PT module from 64 kbps to 8192 kbps
- H.265 bitrate of PT module from 25 kbps to 7424 kbps
Features
- BLC on both modules
- WDR 120 dB on the fixed module
- DWDR on the PT module
- HLC on both modules
- White balance automatic, indoor, outdoor, tracking, manual, sodium lamp, natural light and street lamp
- Gain control automatic, manual and gain priority
- 2D NR and 3D NR noise reduction
- Motion detection
- ROI
- Electronic defogging in both modules
- Image rotation at 180
- Simultaneous display of two channels
- Tap and View to orient the PT module from the image of the fixed module
Smart Functions
- IVS perimeter protection with line crossing and intrusion
- People detection
- Vehicle detection
- Smart tracking with Auto Tracking Lite and Linkage Tracking Lite
- SMD 3.0
- Active deterrence with warm light warning
- Configurable flash duration from 5s to 30s
- Configurable flash frequency in high, medium and low levels
- 3 alarm sounds
- Configurable volume from 0% to 100
- Configurable playback from 1 to 10 times
- Abnormal audio alarm
Positioner
- Fixed module with horizontal movement from 0° to 285° and vertical adjustment from -7° to 20° in manual mode
- PT module with horizontal movement from 0° to 350° and vertical movement from 0° to 90° in electric mode
- Manual speed of 40°/s in horizontal and vertical movement
- Preset speed of 40°/s in horizontal and vertical movement
- 80 presets
- 8 tours with up to 6 presets per tour
- Preset dwell time from 60s to 360s per preset
- Patrol interval from 900s to 3600s
- Power off memory
- Idle motion with preset, patrol and home position from DMSS
- PTZ lock
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- PCM, G711A and G711Mu audio compression
- 1 audio input via built-in microphone
- 1 audio output via built-in speaker
Storage
- MicroSD up to 512GB (card not included)
- FTP
Alarms
- Alarm linkage with capture, recording, audio and light
- Motion alarms, video tampering, audio detection, network disconnection, IP conflict, memory card state detection and memory space detection
Network
- RJ45 10/100 Base-T port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS, IPv6, SSL, QoS, FTP, ICMP, IGMP, ARP, RTCP, RTP and RTMP
- ONVIF S, G and T profiles, CGI and SDK interoperability
- Unicast and multicast streaming method
- 20 users with 64M total bandwidth
- Browsers IE 9 and later, Chrome 41 and later, Firefox 50 and later and Safari 10 and later
- DMSS software
- Mobile client iOS and Android
Power Supply
- 12V DC 1.5A ±25% power supply
- 802.3af PoE
- Base power consumption 3.9W
- Maximum consumption of 12W with WDR, intelligence on, warm light, PTZ operation and speaker
- Optional power adapter
Environment
- Operating temperature -30°C to +55°C (-30°F to +55°F)
- Operating humidity up to 95%
- IP66 protection
- TVS 2000V lightning protection
- Surge protection
- Voltage transient protection
Physical characteristics
- Dimensions 191 mm × 130 mm × 216.6 mm
- Net weight 1.1 kg
- Gross weight 1.7 kg
Contents

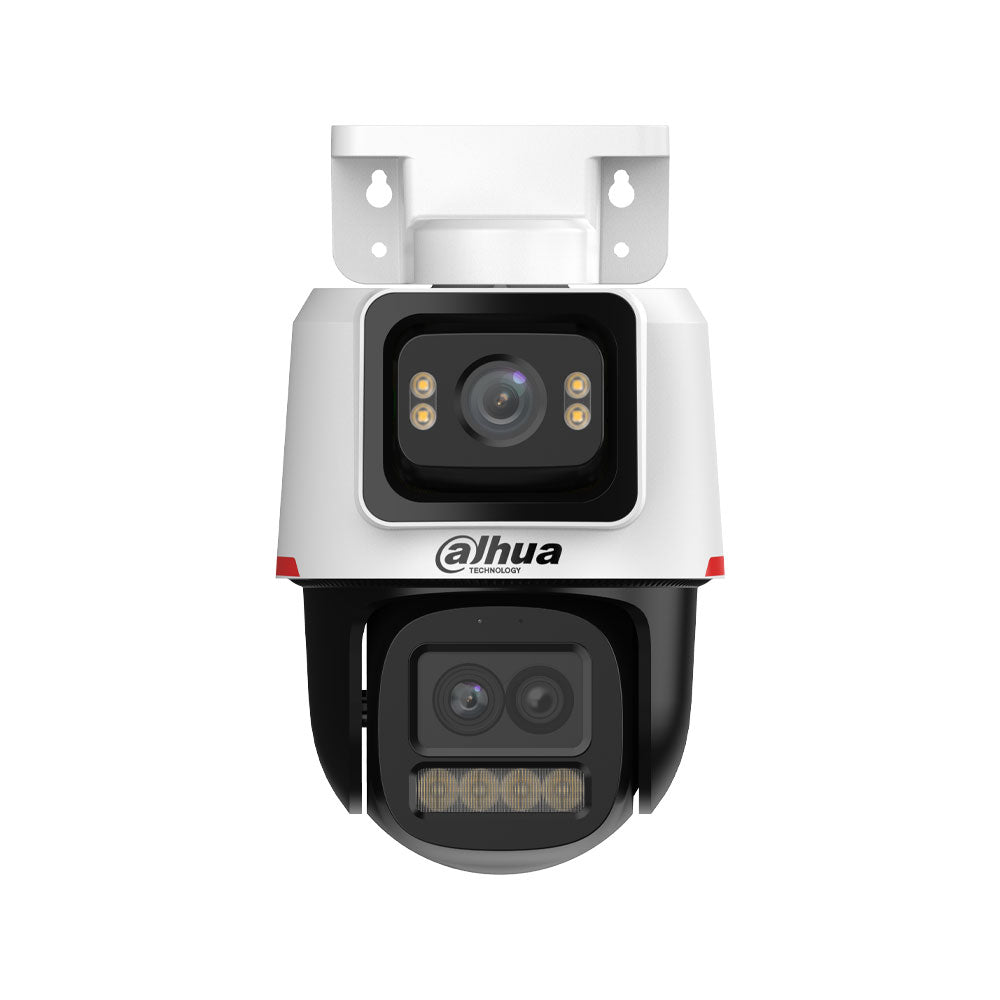

- Dahua WizSense 2 PTZ IP Dome DAHUA-5300 (DH-IPC-PTS2449CP-4E3Z-S-PV-LED-0280B/3684-PRO)
Certifications and Standards
- CE
