Technical Specifications

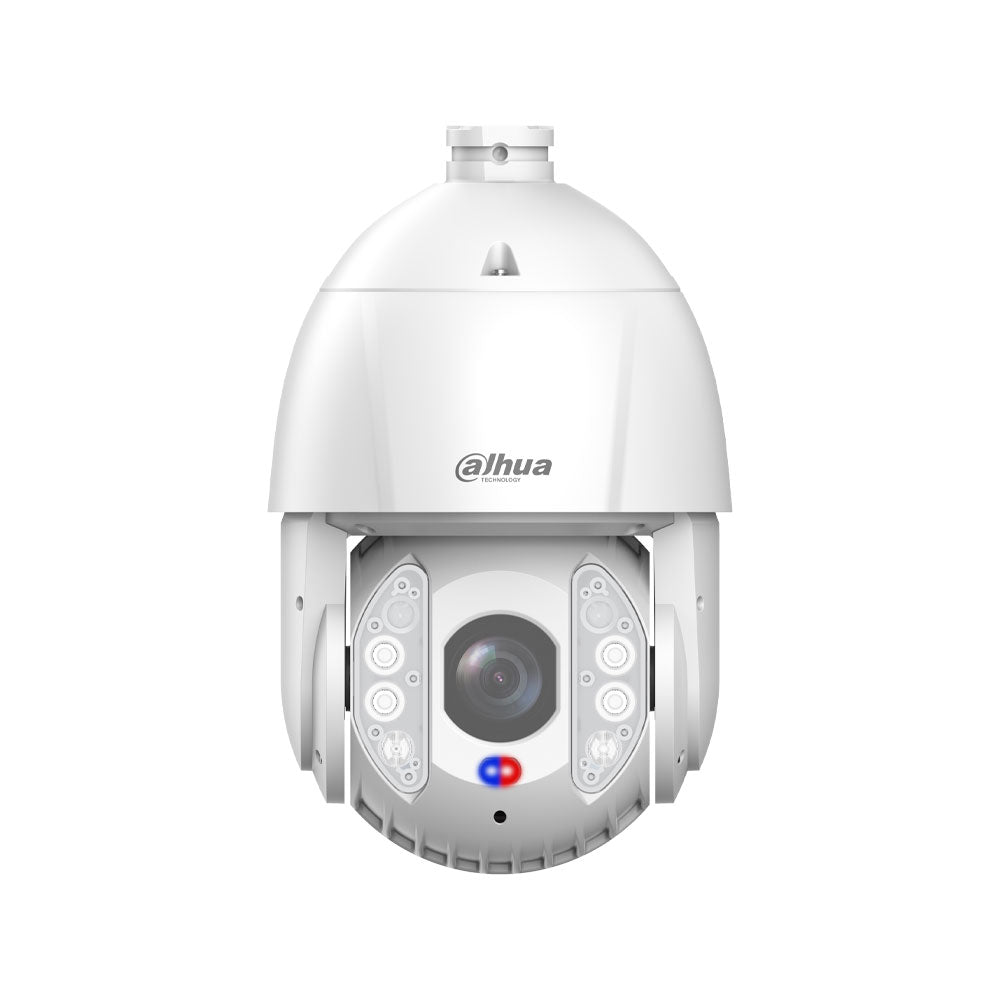

- Dahua WizSense TiOC Dome IP PTZ Camera
- 1/2.8-inch STARVIS™ CMOS Sensor
- Maximum resolution of 2560 × 1440
- Progressive scan system
- Auto day/night with ICR, color and black & white
- Minimum color illumination of 0.005 lux@F1.6
- Minimum B/W illumination of 0.0005 lux@F1.6
- 0 lux with illuminator on
- IR range up to 250m
- Warm light range up to 100m
- Illuminator control with zoom priority, manual, automatic or off
- 6 Dual Light Fusion illuminators
- Motorized lens from 4.8mm to 154mm
- Maximum aperture F1.6-F4.0
- Horizontal viewing angle from 55.8° to 2.3°
- Vertical viewing angle from 31.9° to 1.3°
- Diagonal viewing angle from 63.7° to 2.7°
- 32x optical zoom
- Automatic, semi-automatic or manual focus
- Minimum focus distance 0.1m to 1.5m
- Auto iris, manual or iris priority
Video
- Video compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H and MJPEG on substream 1
- 3 stream capability
- Resolutions: 4M (2560 × 1440), 3M (2304 × 1296), 1080P (1920 × 1080), 960P (1280 × 960), 720P (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480) and CIF (352 × 288/352 × 240)
- Stream 1: 4MP/1080P/1.3MP/720P@1-25/30 fps
- Stream 2: D1/VGA/CIF@1-25/30 fps
- Stream 3: 1080P/1.3MP/720P@1-25/30 fps
- CBR/VBR bitrate control
- H.264 bitrate from 96 Kbps to 15104 Kbps
- H.265 bitrate from 38 Kbps to 9216 Kbps
Features
- BLC, HLC and WDR 120 dB
- Automatic white balance, indoor, outdoor, tracking, manual, sodium lamp, daylight and street light
- Automatic, manual or priority gain control
- 2D NR and 3D NR noise reduction
- Motion detection
- Region of Interest (RoI)
- Electronic Image Stabilization (EIS)
- Electronic defog
- 16x digital zoom
- 180° image rotation
- Signal/noise ratio ≥55 dB
- Privacy mask up to 24 zones, with up to 8 zones in the same view, multiple colors and mosaic available
- Smart Dual Light with switching between infrared and warm light based on target detection
- Active deterrence with red and blue warning light
Smart Functions
- Video metadata with detection of motorized vehicles, non-motorized vehicles, faces and human bodies
- Extraction of up to 10 motorized vehicle attributes and 8 non-motorized vehicle attributes
- Extraction of up to 6 face attributes and 8 human body attributes
- IVS perimeter protection with line crossing, intrusion, fence crossing, loitering, abandoned/lost object, rapid movement, parking, crowd gathering, alarm classification by person and linked tracking.
- Face detection with optimization, capture, upload of high-quality facial snapshots and facial image enhancement
- Extraction of 6 attributes and 8 facial expressions
- Face cropping for a one-inch photo
- Real-time capture strategies, quality priority and selection of preferred image in a group of snapshots
- Autotracking 3.0
- SMD 4.0
- AcuPick for precise search of people and vehicles in live and recorded videos
- Automatic patrol after an IVS event to cover predefined key points and detect threats in real time
Positioner
- Continuous pan from 0° to 360°
- Tilt from -20° to +90° with 180° auto flip
- Manual pan control speed from 0°/s to 260°/s
- Manual tilt control speed from 0°/s to 140°/s
- Preset speed for pan 300°/s
- 200°/s tilt preset speed
- 300 presets
- 8 tours
- 5 patterns
- 5 scans
- Memory after power failure
- Idle motion by preset, pattern, patrol or scan
- PTZ protocol DH-SD and Pelco-P/D with auto recognition
Audio
- Audio compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 and G.723
- Built-in speaker
- 1 bare-wire LINE IN audio input
- 1 bare-wire LINE OUT audio output or built-in speaker, mutually exclusive
- Audible warning with 11 built-in voice alarm contents and up to 10 customizable voice contents that can be imported
- Adjustable sound volume from 0 to 100
- Audible alarm playback from 1 to 10 times
- Audible warning requires the use of an external speaker
Storage
- Storage via MicroSD card up to 512GB (card not included), FTP/SFTP and NAS
Alarms
- 2 alarm inputs
- 1 alarm output
- Alarm linkage via capture, recording, email sending, presets, patrols, patterns, digital alarms and audio outputs
- Alarm events for motion detection, tampering, audio detection, network disconnection, IP conflict, memory card status and memory space
- Red and blue light warning
- Adjustable flash duration from 5 to 30 seconds
- High, medium or low flashing frequency
Communication Interface
- 1 RS-485 interface with a bit rate range from 1200 bps to 9600 bps
Network
- RJ45 10/100 Base-T network port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB and NFS
- Support for ONVIF S/G/T profiles, CGI and SDK
- Unicast and multicast streaming method
- 20 users with a total bandwidth of 64M
- DMSS and DSS Pro management software
- iOS and Android mobile client
- Supported browsers IE 9 and later, Chrome 41 and later, Firefox 50 and later, Safari 10 and later
Power Supply
- 24 V DC, 2.5 A ±25% power supply
- PoE+ 802.3at
- Basic power consumption 12 W
- Maximum consumption of 20 W with WDR, IR activated, PTZ operation and alarm via 24 VDC
- Power adapter included
Environment
- Operating temperature -40°C to +70°C (-40°F to +70°F)
- Operating humidity ≤95%
- IP67 protection
- IK10 vandal resistance
- TVS 6000 V lightning protection
- Surge and transient voltage protection
Physical Characteristics
- Wall mount with bracket included
- Ceiling, pole, corner, flat or parapet installation using optional accessories
- Dimensions: 208 mm × 202 mm × 325 mm
- Net weight 4.45 kg
- Gross weight 6.62 kg
Contents
- Dahua WizSense TiOC 4MP IP PTZ Dome DAHUA-5290 (DH-SD6E432MB-HNR-A-PV1)
- PFB305W wall bracket included
- DC24V/2.5A power adapter included
Certifications and Standards
- CE: EN 55035, EN IEC 61000-3-2, EN 55032, EN 60950 and EN 62368-1
