Description
Technical characteristics

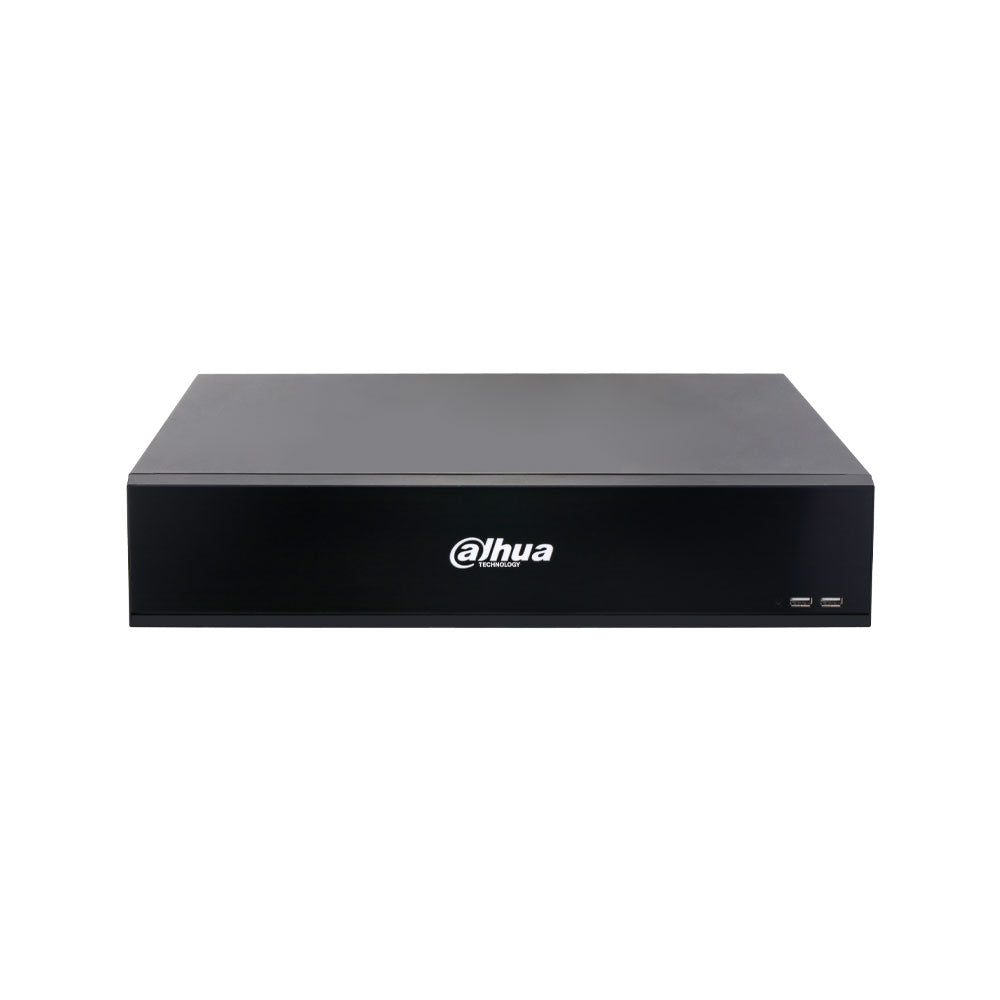

- Dahua WizMind 32-channel IP NVR, 8 SATA bays
- Industrial grade processor
- Embedded Linux operating system
- Web operating interface and local GUI
- Supports IP cameras up to 32 MP
- AI disabled bandwidth of 512 Mbps input, 512 Mbps recording, and 512 Mbps output
- AI enabled bandwidth of 200 Mbps input, 200 Mbps recording, and 200 Mbps output
- Access to 32 IP channels
- Simultaneous playback of up to 16 channels
- Supports N+M clustering, RAID 0/1/5/6/10 and ISCSI
- Supports disk groups
Video
- Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression
- Supported resolutions 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080P, 960P, 720P, D1, CIF and QCIF
- 2 channels 32 MP@30 ips, 2 channels 24 MP@30 ips, 4 channels 16 MP@30 ips, 5 channels 12 MP@30 ips, 8 channels 8 MP@30 ips, 10 channels 6 MP@30 ips, 12 channels 5 MP@30 ips, 16 channels 4 MP@30 ips, 32 channels 1080P@30 ips AI disabled decoding
- AI enabled decoding of 1 channel 32 MP@30 ips, 1 channel 24 MP@30 ips, 2 channels 16 MP@30 ips, 4 channels 12 MP@30 ips, 6 channels 8 MP@30 ips, 8 channels 6 MP@30 ips, 8 channels 5 MP@30 ips, 12 channels 4 MP@30 ips, 24 channels 1080P@30 ips and 32 channels 720P@30 ips
- 2 HDMI and 2 VGA outputs
- VGA with resolutions of 1920 × 1080, 1280 × 1024 and 1280 × 720
- HDMI with resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720
- Heterogeneous video output for HDMI1 and HDMI2
- Simultaneous video output for VGA1 and HDMI1
- Simultaneous video output for VGA2 and HDMI2
- Main screen with 1/4/8/9/16/25/36 display
- Secondary screen with 1/4/8/9/16 display
- Recording mode general, motion detection, intelligent, alarm and POS
- Instant playback, general, event, tag and intelligent playback
- Backup via USB device and network
Features
- AcuPick with up to 32 channels and 1 combined event per channel
- Face detection and recognition
- EPTZ support
- One-click arming and triggering
- Access to third-party cameras ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha
- Multi-address network mode, load balancing and fault tolerance
Smart functions
- AI by recorder with face detection, face recognition, video metadata for people, motorized and non-motorized vehicles, perimeter protection and SMD
- AI by camera with face detection, face recognition, video metadata for humans, motorized and non-motorized vehicles, perimeter protection, SMD, stereo analysis, crowd distribution, people counting, ANPR, thermal mapping and PPE detection
- Perimeter protection by recorder on 24 channels with 10 IVS rules per channel
- Perimeter protection by camera on all channels with 32 targets per second
- Face detection by recorder on 4 channels with 4K subscreen enabled and 8 channels with 4K subscreen disabled, up to 12 face images per second per channel
- Face detection by camera on 32 channels
- Up to 20 face databases with 200,000 images and a total capacity of 44 G
- Face recognition on 32 channels with camera detection and recorder recognition at 32 face images per second
- Recorder face recognition on 4 channels with 4K subscreen enabled or recorder face recognition on 8 channels with 4K subscreen disabled, with camera detection and recorder recognition at 16 facial images per second.
- Face recognition by camera on 32 channels
- SMD Plus by recorder on 32 channels with secondary filtering for people and motor vehicles
- SMD Plus by camera on all channels with 64 targets per second
- Metadata by recorder on 8 channels with 23 attribute extraction
- Metadata by camera on 32 channels
- 9 attributes for the human body
- 9 attributes of motor vehicles
- 4 attributes of non-motorized vehicles
- ANPR by camera on all channels with 32 targets per second
- License plate database containing up to 20,000 numbers with authorized and blocked lists
Audio
- 1 RCA audio input
- 2 RCA audio outputs
- Audio compression G.711a, G.711u, PCM and G726
Storage
- 8 SATA ports
- Up to 20 TB per hard drive
- 1 eSATA port
- RAID 0/1/5/6/10
Alarms
- 16 alarm inputs
- 8 alarm outputs, with 1 12V 1A output
- General alarm for motion detection, local alarm, alarm box, external camera alarm, network alarm, scene change, PIR alarm and thermal alarm.
- Anomaly alarm for no disk, disk error, insufficient space, RAID exception, low quota, abnormal disk health, network disconnection, IP conflict, MAC conflict, abnormal fan speed, video loss, video tampering, camera offline and audio detection.
- Smart alarm by face detection, face recognition, video metadata, perimeter protection and license plate matching
- Link actions by record, panoramic snapshot, local alarm output, external IPC alarm output, access controller, audio, buzzer, log, preset and email
Communication interface
- 1 RS-232 port
- 2 RS-485 ports, 1 half duplex, 1 full duplex
- 4 USB ports, 2 USB 2.0 ports at the front and 2 USB 3.0 ports at the back
Network
- 2 RJ45 10/100/1000 Mbps Ethernet ports
- Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, FTP, DDNS, SNMP, alarm server, P2P, auto recording, IP search and ISCSI
- ONVIF 23.06 Profile T, Profile S and Profile G, CGI and SDK supported
- Mobile access from iOS and Android
- Supported browsers Chrome, Firefox and IE
Power supply
- Power supply 100-240 V AC, 50-60 Hz
- Power consumption less than 13 W without hard drive
Environment
- Operating temperature -10 °C to +55 °C (14 °F to +131 °F)
- Storage temperature -20 °C to +60 °C (-4 °F to +140 °F)
- Operating humidity 10 % to 93 % RH non-condensing
Physical characteristics
- 2U form factor
- Rack mount or desktop installation
- Dimensions 440.0 × 452.5 × 94.9 mm
- Net weight 6.46 kg
- Gross weight 8.91 kg
Content
- DAHUA-5267 IP NVR (DHI-NVR5832-XI)
Certifications and standards
- CE-EMC EN 55032:2015+A1:2020 Class A
- CE-EMC EN IEC 61000-3-2:2019+A1:2021
- CE-EMC EN 61000-3-3:2013+A1:2019+A2:2021
- EC-EMC EN 55035:2017+A11:2020
- EC-EMC EN 50130-4:2011+A1:2014
- CE-LVD EN 62368-1:2014
