Technical Specifications

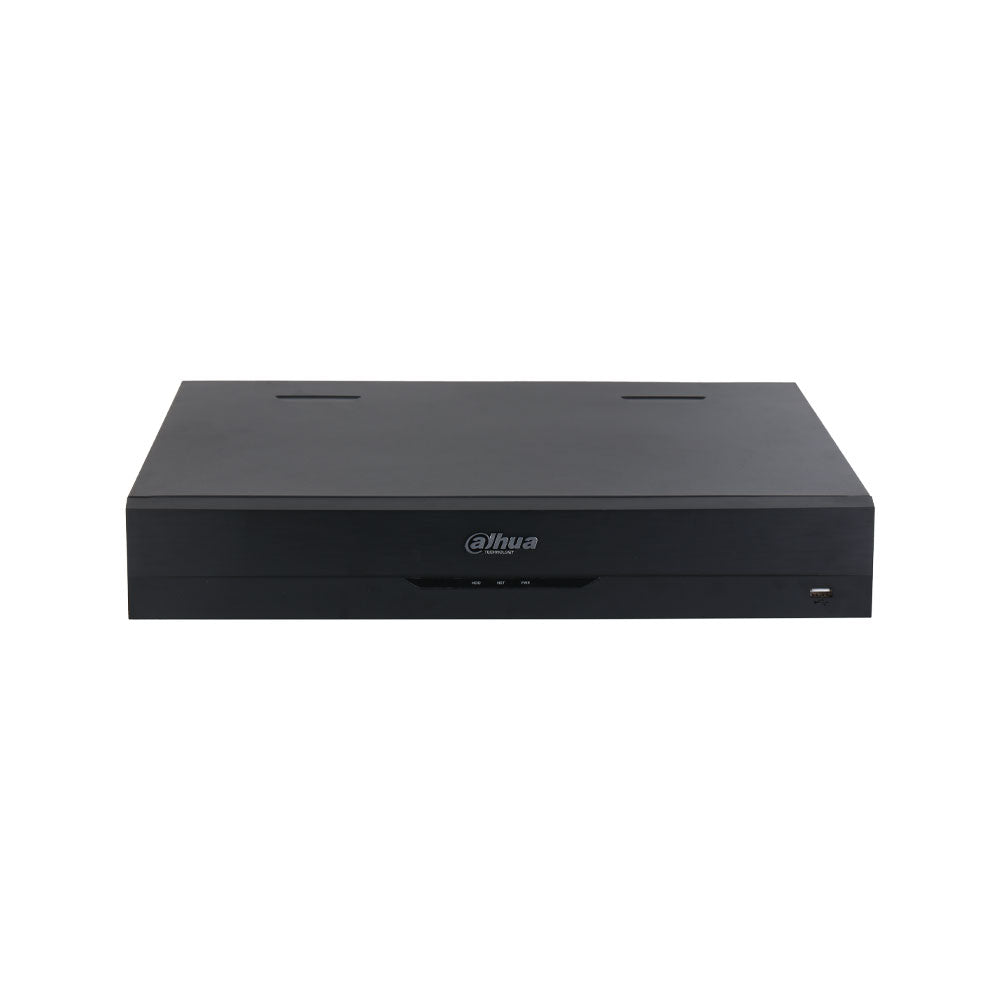

- Dahua WizSense 5-in-1 16-channel XVR with HDCVI, TVI, AHD, CVBS, and IP support
- Industrial-grade processor
- Embedded Linux operating system
- Web operating interface and local GUI
- 16 auto-sensing HDCVI/AHD/TVI/CVBS BNC inputs
- Up to 24 IP channels with 8 native IP channels and 16 convertible from analog
- Supports IP cameras up to 8 MP
- 128 Mbps incoming bandwidth, 128 Mbps recording bandwidth, and 128 Mbps outgoing bandwidth
- IoT and POS capabilities
Video
- 16-channel BNC inputs and up to 24 IP inputs
- CVI input resolutions: 5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080P@25/30 fps, 720P@50/60 fps, and 720P@25/30 fps
- TVI input resolutions: 5 MP (2560 x 1944)@20 fps, 5 MP (2960 x 1665)@20 fps, 4 MP@25/30 fps, 1080P@25/30 fps, and 720P@25/30 fps
- AHD input resolutions: 5 MP@20 fps, 4 MP@25/30 fps, 1080P@25/30 fps, and 720P@25/30 fps
- Encoding capacity in 5 MP mode: 4 channels 5 MP@1-6 fps and the rest 5M-N@1-12 fps
- Encoding capacity in 5M-N mode: 5M-N@1-12 fps, 4M-N/1080P@1-15 fps, and 1080N/720P/960H/D1/CIF@1-25/30 fps
- D1/CIF@1-15 fps sub-stream
- 2 HDMI, 1 VGA, and 1 CVBS video outputs
- HDMI1 output: 3840 × 2160, 1920 × 1080, 1280 × 1024, and 1280 × 720
- VGA/HDMI2 output: 1920 × 1080, 1280 × 1024, and 1280 × 720
- Configurable heterogeneous output for HDMI2
- Multi-screen display 1/4/8/9/16 without IP extension and 1/4/8/9/16/25 with IP extension
- Synchronized playback 1/4/9/16
- Dual stream
- Video bitrate from 32 kbps to 6144 kbps
- AI encoding, Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Access to third-party cameras from Panasonic, Sony, Hanwha, Axis, Arecont, and ONVIF
Features
- Multi-address mode, fault tolerance, and load balancing network mode
- General, alarm, motion detection, intelligent, and POS recording modes
- Instant, general, event, tag, and intelligent playback
- Backup via USB device and network
- Disk group
Smart Functions
- QuickPick 2.0 on 2 channels per recorder
- Advanced mode perimeter protection on 2 channels with 10 IVS rules per channel
- General mode perimeter protection on 4 channels with 10 IVS rules per channel
- Face detection on 2 channels with up to 12 face images per second on each channel
- 6 facial attributes
- 2-channel face recognition
- Facial database up to 10 databases with 10,000 images
- SMD Plus per recorder on 16 channels with secondary filtering of people and vehicles
- SMD Plus per camera on 24 channels
- AI video quality analysis on 16 channels for brightness, color cast, blur, overexposure, contrast, and black and white
- Scene change detection on 1 channel
- Irregular black block masking on 1 channel
- AI encoding on 16 channels
Audio
- 4 BNC audio inputs
- 16 audio channels via coaxial through BNC
- 1 BNC audio output
- Two-way audio on 1 BNC channel
- G.711a, G.711u, and PCM audio compression
- 8 kHz, 16-bit audio sampling
- 64 kbps audio bitrate
Storage
- 4 SATA ports
- Each disk supports up to 16 TB depending on ambient temperatures
- 1 eSATA port
Alarms
- 16 alarm inputs
- 6 alarm outputs
- General alarms for motion detection, local alarm, alarm box, HDCVI alarm, external camera alarm, network alarm, and PIR alarm
- Alarms for missing disk anomaly, disk error, insufficient space, insufficient quota, network disconnection, IP conflict, MAC conflict, video loss, video tampering, and offline camera.
- Smart alarms by face detection, face recognition, perimeter protection, and SMD Plus
- Action linkage with recording, panoramic snapshot, local alarm output, external IPC alarm output, audio, buzzer, log, presets, and email
Communication Interface
- 1 RS232 port
- 1 RS485 port
- 3 USB ports, one USB 2.0 port on the front and two USB 3.0 ports on the back
Network
- 2 RJ45 10/100/1000 Mbps Ethernet interfaces
- HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, FTP, DDNS, SNMP, alarm server, P2P, auto record, and IP search protocols
- Mobile access from iOS and Android
- ONVIF 24.06 Profile T, Profile S and Profile G, CGI, and SDK interoperability
- Supported browsers Chrome, IE, Safari, Edge, and Firefox
Power Supply
- 100-240V AC, 50±2% Hz power supply
- Power consumption less than 15 W without HDD
Environment
- Operating temperature -10°C to +55°C (14°F to 131°F)
- Storage temperature -20°C to +60°C (-4°F to +140°F)
- Operating humidity 10% to 90% RH non-condensing
Physical Characteristics
- Desktop installation
- 1.5U format
- 440.0 × 420.2 × 76.0 mm dimensions
- Net weight of 4.45 kg
- Gross weight of 6.75 kg
Content
- Dahua WizSense 5-in-1 XVR DAHUA-5256 (DH-XVR5416L-I3)
Certifications and Standards
- CE-LVD: EN 60950-1 / IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, and EN 55024
- FCC: Part 15 Subpart B
