Description
Technical Specifications

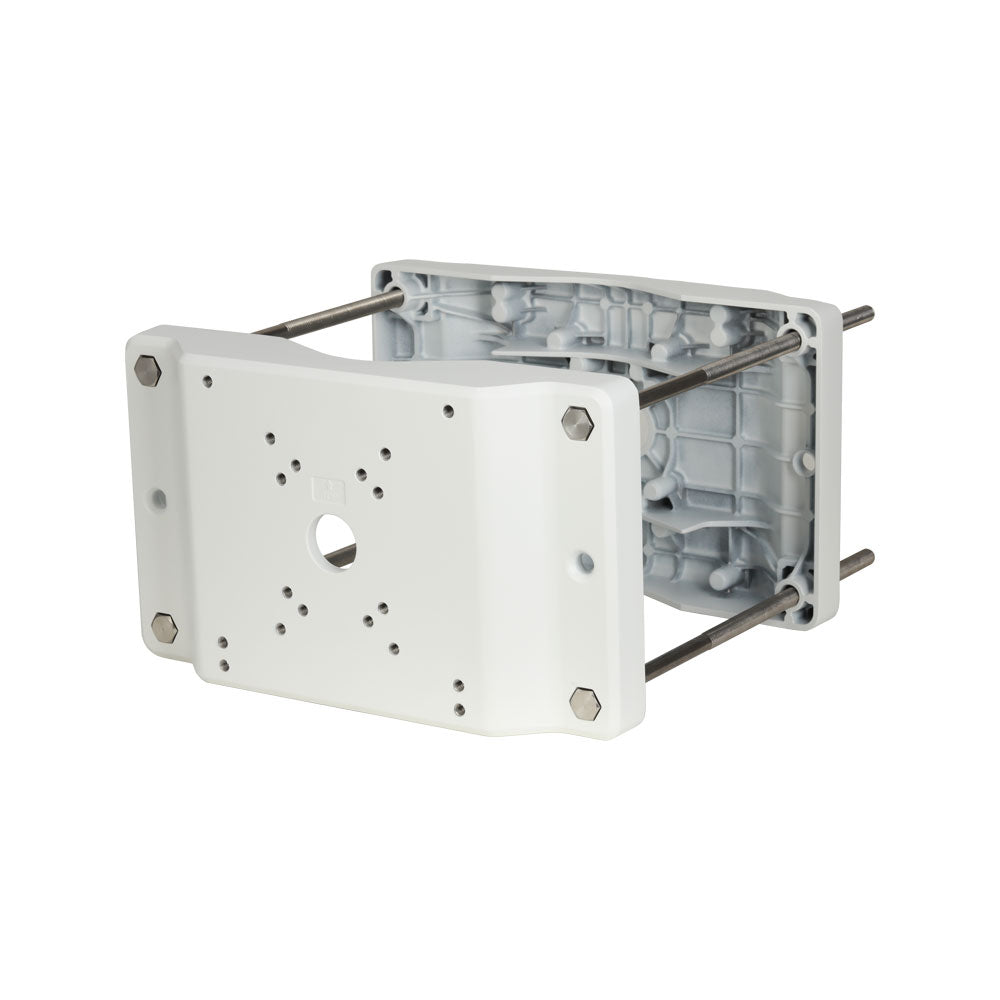

- Dahua pole mount for camera installation
- Aluminum and stainless steel material
- Maximum load of 35 kg (77.16 lb)
- Designed for poles from Ø150 mm to Ø300 mm
- Aesthetic design with double-sided installation
- Compatible with speed domes, PTZ cameras, hybrid pan & tilt cameras, and outdoor CCTV housings
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity less than 90% RH
Physical Characteristics
- White color
- Pole installation
- Dimensions 359.1 mm × 60.0 mm × 213.1 mm
- Weight 5 kg
Contents
- Dahua DAHUA-5246 Ultra-robust pole mount bracket (DH-PFA153)
- 2 pole mount bodies
- 4 M12×360 bolts
- 4 M8×35 bolts
- 4 sealing washers
- 4 spring washers
- 2 ST3×8 screws
- 8 M12 nuts
- 1 cable tie
- 1 anti-slip cover
- 1 S6.0 wrench
- 1 user manual
