Description
Technical Specifications

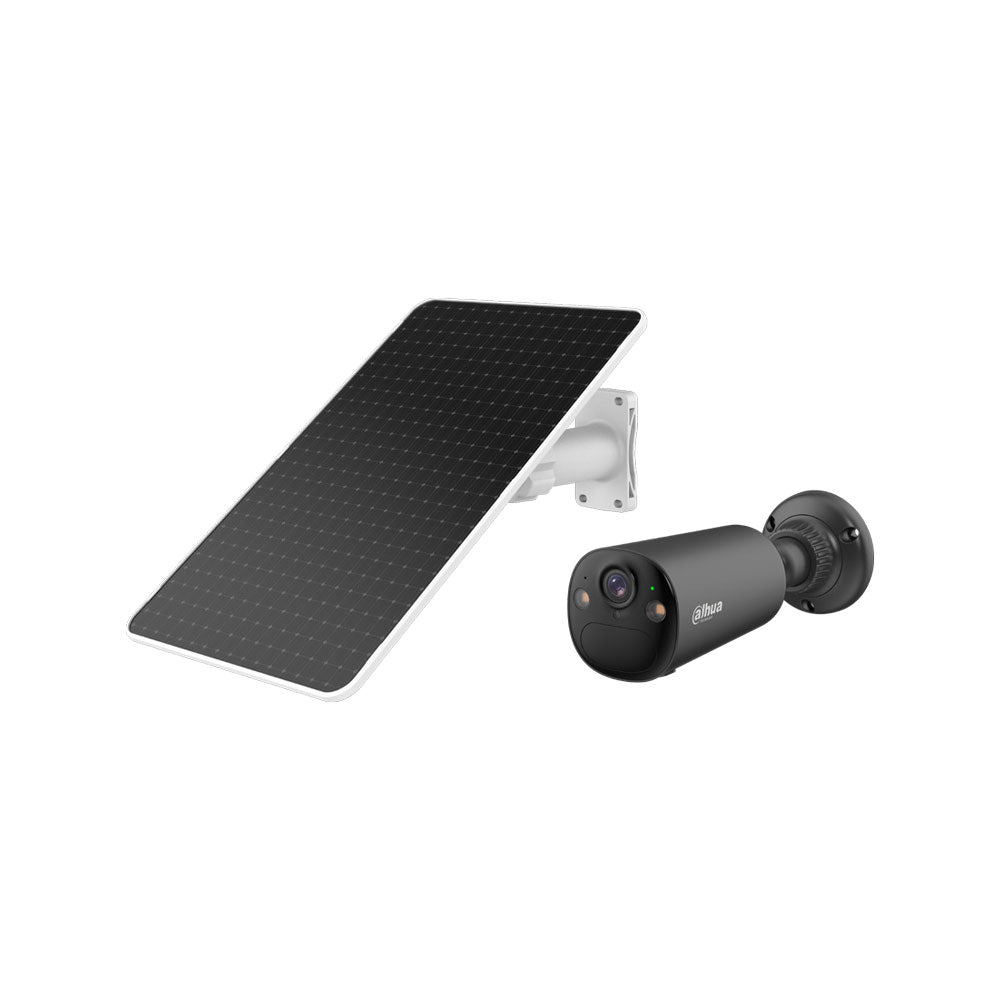

- Dahua Wireless XL Series Wi-Fi Bullet IP Camera with battery and solar panel
- 1/3" CMOS sensor
- Maximum resolution of 4 MP (2560 x 1440)
- Automatic ICR with color, black and white, and auto modes
- IR illumination up to 15m and warm light up to 20m
- 2 multi-core projectors with IR and warm light
- Fixed 2.1 mm lens with F1.6 aperture
- Viewing angle H 122.5°, V 66°, and D 144.5°
- PIR sensor with a range of 12m at a height of 2.5m horizontally
- PIR sensor with a range of 8m at a height of 2m and at 30° from horizontal
Video
- H.265 video compression
- Stream 1: 2560 x 1440, 1 to 15 fps
- Stream 2: 640 x 360, 1 to 15 fps
- H.265 bitrate from 32 kbps to 4096 kbps
Features
- AOV mode for continuous low-power recording
- Smart Dual Light to capture details in color after an event
- Audible and visual alarm for deterrence
- WDR
- Motion detection configurable in 4 rectangular zones
- DMSS app for live viewing, recording history, notifications, and secure sharing
Smart Functions
- Human detection
- Vehicle detection
- Precise detection with AI and quick activation
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- G.711a, G.711Mu, and PCM audio compression
Storage
- MicroSD card slot up to 512 GB (card not included)
Communication Interface
- Bluetooth pairing
- Reset button
- Power button
- USB Type-C port for charging
Network
- Dual-band Wi-Fi 6, 2.4 GHz and 5 GHz
- Wi-Fi IEEE 802.11a/b/g/n/ac/ax
- DMSS management software
- Mobile app for Android and iOS
Power Supply
- USB 5V DC ±5%, 2A power supply
- 32.4 Wh battery
- Charging via battery and solar panel
- 0.008 W consumption in ultra-power saving mode
- 0.008 W consumption in power saving mode
- 0.2 W consumption in AOV mode
- 1.22 W consumption in performance mode
Environment
- Operating temperature from -20 °C to +60 °C
- Operating humidity ≤ 95% non-condensing
- IP66 protection rating
Physical Characteristics
- Plastic housing
- 3 axes with pan adjustment from 0° to 360°, tilt from -60° to 0°, and rotation from 0° to 360°
- Dimensions: 186.5 mm x Ø 65.0 mm
- Net weight: 0.37 kg
Contents
- Dahua Wireless XL Series Wi-Fi Bullet IP Camera DAHUA-5245 (DH-KIT-EUR/IPC-BF4CP-0210B-XL-Pearl/M0508)
- 1 solar module
- 1 power cable
- 2 positioning templates
- 2 screw packs
- 2 brackets
- 1 pin
- 1 quick guide
- 1 legal and regulatory information document
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC according to Electromagnetic Compatibility Directive 2014/30/EU
- CE-RED according to Radio Equipment Directive 2014/53/EU
