Description
Technical Specifications

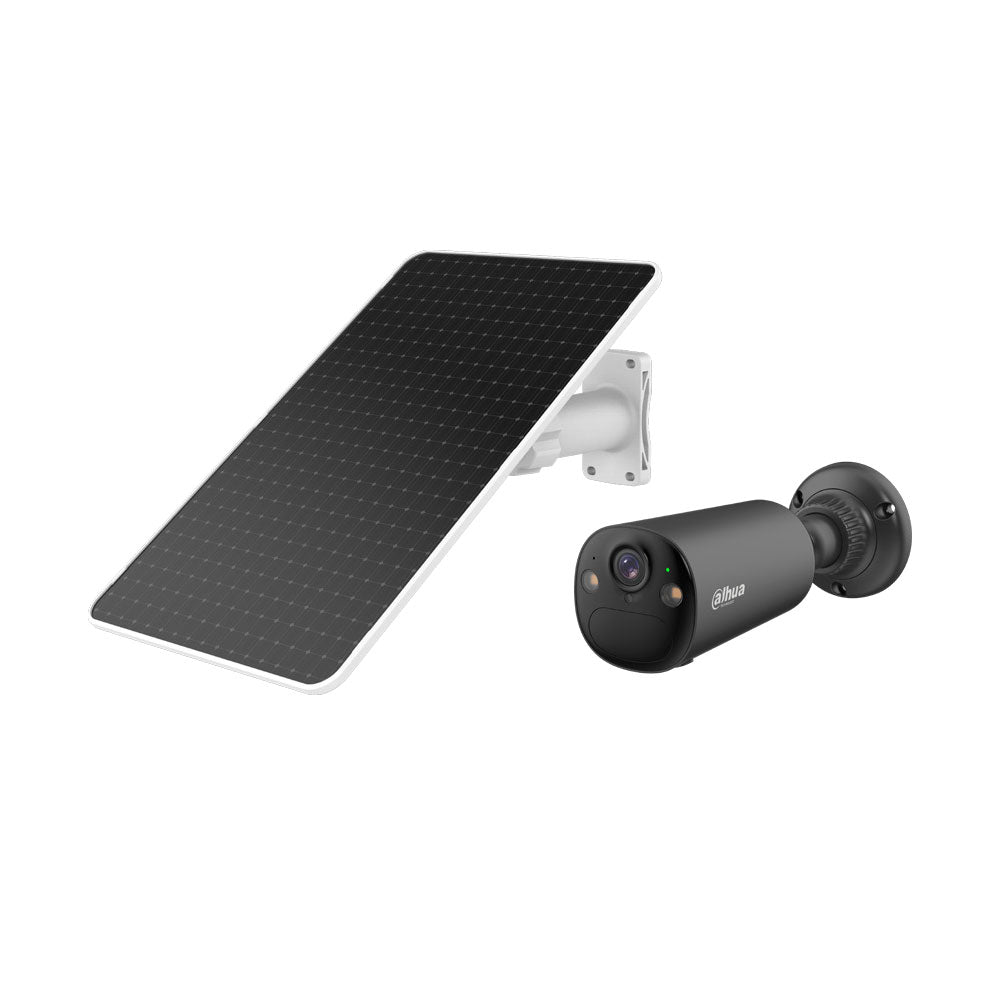

- Dahua 4MP Wi-Fi bullet IP camera with battery and solar monitoring system
- 1/3" CMOS sensor
- Maximum resolution of 2560 x 1440
- 2.1 mm fixed lens
- Maximum aperture F1.6
- Viewing angle H 122.5°, V 66°, D 144.5°, D 144.5°, D 144.5°
- IR illumination up to 15 m
- Warm light up to 20 m
- 2 multi-core IR illuminators + warm light
- Auto ICR day/night filter, color and B/W
- PIR sensor at 12 m distance with the device at 2.5 m height and placed horizontally
- PIR sensor at 8 m distance with the device at 2 m height and positioned 30° from horizontal
- AOV Always-On Video mode for continuous recording with very low power consumption
- Smart Dual Light to capture color details after the event
- Audible and visible alarm to deter intruders
Video Stream
- H.265 video compression
- Main stream 2560 x 1440 at 1-15 fps
- Secondary stream 640 x 360 at 1-15 fps
- H.265 bitrate from 32 kbps to 4096 kbps
Features
- WDR
- Motion detection ON/OFF in 4 rectangular zones
- Quick pairing via Bluetooth
- DMSS app for live viewing, recording history, notifications, alerts, and device sharing
Smart Features
- People detection
- Vehicle detection
- Accurate AI detection with fast activation
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- Audio compression G.711a, G.711Mu, and PCM
Storage
- Micro SD card slot up to 512 GB
Network
- Wi-Fi IEEE 802.11a/b/g/n/ac/ax 2.4 GHz and 5 GHz
- Dual-band Wi-Fi 6
- Wi-Fi pairing via Bluetooth
- DMSS management software
- Android and iOS mobile client
Power Supply
- USB 5 VDC ±5%, 2 A power supply
- 32.4 Wh battery included
- Charging via solar module
- Power consumption in ultra-low power mode 0.008 W
- Power consumption in power saving mode 0.008 W
- Power consumption in AOV mode 0.2 W
- Power consumption in performance mode 1.22 W
Environment
- Operating temperature -20°C to +60°C (-4°F to 140°F)
- Operating humidity ≤95%RH non-condensing
- IP66 protection
Physical Characteristics
- 3AXIS angular adjustment with pan from 0° to 360°, tilt from -60° to 0°, and rotation from 0° to 360°
- Reset button and power button
- Type-C port
- Plastic housing material
- Dimensions 186.5 mm x Φ65.0 mm
- Net weight 0.37 kg
Content
- 1 Dahua DAHUA-5235 Wi-Fi IP camera
- 2 position cards
- 2 screw packs
- 2 brackets
- 1 pin
- 1 quick start guide
- 1 legal and regulatory information document
- 1 solar module
- 1 power cable
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC compliant with electromagnetic compatibility directive 2014/30/EU
- CE-RED compliant with radio equipment directive 2014/53/EU
