Technical Specifications

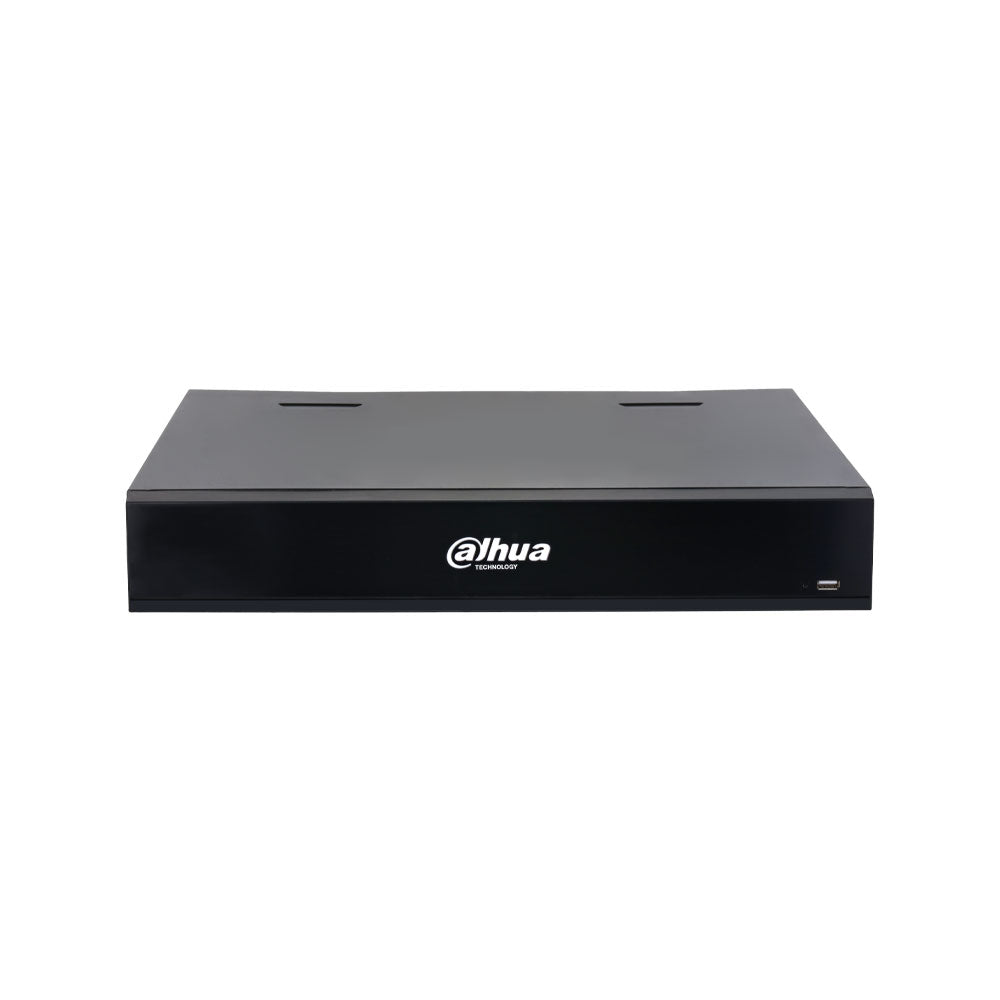

- Dahua WizMind 32-channel IP NVR with 16 PoE ports and 4 SATA bays
- Industrial-grade processor
- Embedded Linux operating system
- Web-based and local GUI operation interface
- Supports IP cameras up to 32 MP
- AI disabled bandwidth of 512 Mbps input, 512 Mbps recording, and 512 Mbps output
- AI enabled bandwidth of 200 Mbps input, 200 Mbps recording, and 200 Mbps output
- Access to 32 IP channels
- Simultaneous playback of up to 16 channels
- Supports N+M cluster and ISCSI
- Supports disk groups
Video
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- Supported resolutions 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080P, 960P, 720P, D1, CIF and QCIF
- 2 channels 32 MP@30 fps, 2 channels 24 MP@30 fps, 4 channels 16 MP@30 fps, 5 channels 12 MP@30 fps, 8 channels 8 MP@30 fps, 10 channels 6 MP@30 fps, 12 channels 5 MP@30 fps, 16 channels 4 MP@30 fps, 32 channels 1080P@30 fps AI disabled decoding
- AI enabled decoding of 1 channel 32 MP@30 fps, 1 channel 24 MP@30 fps, 2 channels 16 MP@30 fps, 4 channels 12 MP@30 fps, 6 channels 8 MP@30 fps, 8 channels 6 MP@30 fps, 8 channels 5 MP@30 fps, 12 channels 4 MP@30 fps, 24 channels 1080P@30 fps and 32 channels 720P@30 fps
- 2 HDMI and 2 VGA outputs
- VGA with resolutions of 1920 × 1080, 1280 × 1024, and 1280 × 720
- HDMI with resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024, and 1280 × 720
- Heterogeneous video output for HDMI1 and HDMI2
- Simultaneous video output for VGA1 and HDMI1
- Simultaneous video output for VGA2 and HDMI2
- Main screen with 1/4/8/9/16/25/36 display
- Secondary screen with 1/4/8/9/16 display
- Recording mode general, motion detection, intelligent, alarm, and POS
- Instant playback, general playback, event, tag, and intelligent playback
- Backup via USB device and network
Features
- AcuPick with up to 32 channels and 1 combined event per channel
- Face detection and recognition
- Supports EPTZ
- One-click arming and disarming
- Access to third-party cameras ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, and Hanwha
Smart Functions
- AI by recorder with face detection, face recognition, video metadata for people, motor and non-motor vehicles, perimeter protection, and SMD
- AI by camera with face detection, face recognition, video metadata for humans, motor and non-motor vehicles, perimeter protection, SMD, stereo analysis, crowd distribution, people counting, ANPR, thermal mapping, and PPE detection
- Perimeter protection by recorder on 24 channels with 10 IVS rules per channel
- Perimeter protection by camera on all channels with 32 targets per second
- Face detection by recorder on 4 channels with 4K sub-screen enabled and 8 channels with 4K sub-screen disabled, up to 12 face frames per second per channel
- Face detection by camera on 32 channels
- Up to 20 face databases with 200,000 images and a total capacity of 44G
- Face recognition on 32 channels with camera detection and recorder recognition at 32 face frames per second
- Recorder face recognition on 4 channels with 4K sub-screen enabled or 8 channels with 4K sub-screen disabled, with camera detection and recorder recognition at 16 facial frames per second.
- Face recognition by camera on 32 channels
- SMD Plus by recorder on 32 channels with secondary filtering for people and motor vehicles
- SMD Plus by camera on all channels with 64 targets per second
- Metadata by recorder on 8 channels with 23 attribute extraction
- Metadata by camera on 32 channels
- 9 attributes for the human body
- 9 attributes for motor vehicles
- 4 attributes for non-motor vehicles
- ANPR by camera on all channels with 32 targets per second
- License plate database containing up to 20,000 numbers with authorized and blocked lists
Audio
- 1 RCA audio input
- 2 RCA audio outputs
- G.711a, G.711u, PCM, and G726 audio compression
Storage
- 4 SATA ports
- Up to 20 TB per HDD
- 1 eSATA port
Alarms
- 16 alarm inputs
- 6 alarm outputs, with 1 12V 1A output
- General alarm by motion detection, local alarm, casing alarm, external camera alarm, network alarm, scene change, PIR alarm, and thermal alarm
- Anomaly alarm for no disk, disk error, insufficient space, low quota, abnormal disk health, network disconnection, IP conflict, MAC conflict, abnormal fan speed, video loss, video tampering, offline camera, and audio detection.
- Smart alarm by face detection, face recognition, video metadata, perimeter protection, and license plate matching
- Linkage actions by record, panoramic snapshot, local alarm output, external IPC alarm output, access controller, audio, buzzer, log, preset, and email
Communication Interface
- 1 RS-232 port
- 1 RS-485 half-duplex port
- 3 USB ports, 1 USB 2.0 port on the front and 2 USB 3.0 ports on the rear
Network
- 1 RJ45 10/100/1000 Mbps Ethernet port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, FTP, DDNS, SNMP, alarm server, P2P, auto-registration, IP search, and ISCSI
- ONVIF 23.06 Profile T, Profile S, and Profile G, CGI and SDK supported
- Mobile access from iOS and Android
- Supported browsers Chrome, Firefox, and IE
- 16 PoE 10/100 Mbps ports with IEEE 802.3 af/at
- Ports 1 to 8 support ePoE
Power
- 100-240 V AC, 50-60 Hz power supply
- Power consumption less than 13 W without HDD
- 200 W total PoE power
- Maximum power of 25.5 W per PoE port
Environment
- Operating temperature -10 °C to +55 °C (14 °F to 131 °F)
- Storage temperature -20 °C to +60 °C (-4 °F to 140 °F)
- Operating humidity 10% to 93% RH non-condensing
Physical Characteristics
- 1.5U form factor
- Rack-mount or desktop installation
- Dimensions 440.0 × 414.6 × 76.0 mm
- Net weight of 4.58 kg
- Gross weight of 6.73 kg
Contents
- DAHUA-5232 (DHI-NVR5432-16P-XI) PoE IP NVR recorder
Certifications and Standards
- CE-EMC EN 55032:2015+A1:2020 Class A
- CE-EMC EN IEC 61000-3-2:2019+A1:2021
- CE-EMC EN 61000-3-3:2013+A1:2019+A2:2021
- EC-EMC EN 55035:2017+A11:2020
- EC-EMC EN 50130-4:2011+A1:2014
- CE-LVD EN 62368-1:2014
