Description
Technical specifications
- Dual 1/2.8" CMOS sensor
- Maximum resolution per module 3MP (2304×1296)
- Automatic day/night mode with ICR, color and B/W
- Fixed module with IR illumination up to 30 m (98 ft)
- Fixed module with warm light up to 20 m (65 ft)
- PT module with IR illumination up to 50 m
- PT module with warm light up to 40 m
- 2 IR LEDs and 2 warm lights in the fixed module
- 2 IR LEDs and 2 warm lights in the PT module
- 2.8 mm fixed lens on the fixed module
- 6 mm fixed lens on the PT module
- Maximum aperture F1.6
- Fixed module viewing angle 95° horizontal, 53° vertical, and 110° diagonal
- PT module viewing angle 53° horizontal, 29° vertical, 62° diagonal
Video
- H.265 compression
- Main stream: 2304 × 1296 at 15 fps
- Sub stream: 640 × 360 at 15 fps
- H.265 bit rate from 512 kbps to 4096 kbps
Features
- Digital WDR
- Motion detection
- Image rotation 0° and 180°
- Preset patrol
- Sound and light alarm
- Smart Dual Light
- Multi-zone coverage with simultaneous display of two zones
Smart functions
- Human detection
- Vehicle detection
- Auto tracking
Positioner
- Fixed module with adjustment from -10° to 15°.
- PT module with horizontal movement from 0° to 352°.
- PT module with vertical movement from 0° to 90°.
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- G.711a audio compression
Storage
- MicroSD card slot up to 256 GB (card not included)
Communication interface
- Bluetooth pairing
Network
- RJ45 10/100 Base-T Ethernet port
- WiFi 2.4 GHz IEEE 802.11b/g/n/ax
- DMSS management software
- Mobile application for iOS and Android
Power supply
- 12V DC power supply
- Basic consumption of 2.3 W
- Maximum consumption of 10 W with active stream, IR, sound and light deterrence
Environment
- Operating temperature -30 °C to +50 °C
- Operating humidity up to 95% non-condensing
- IP66 protection
Physical characteristics
- Plastic material
- Dimensions 159.4 mm × 119.1 mm × 210 mm
- Net weight 585 g
Content

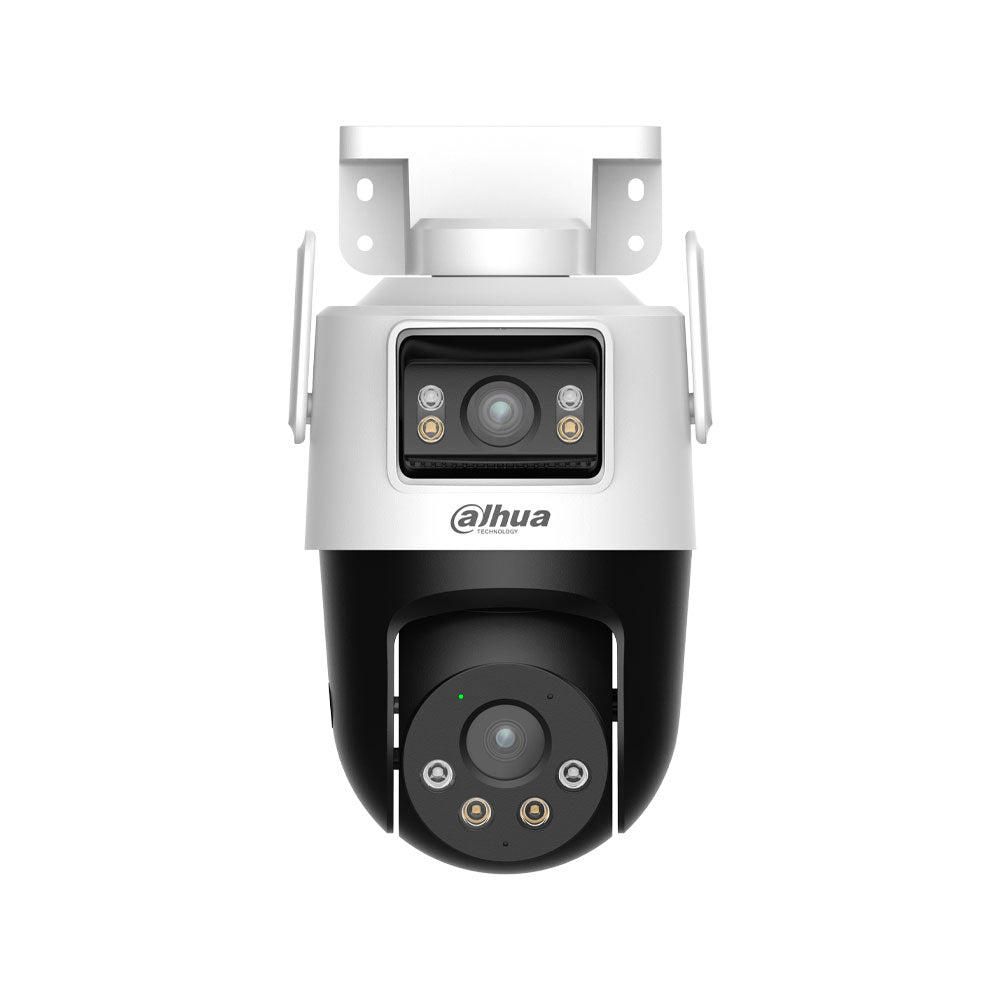

- Wireless PTZ IP WiFi Dome Dahua DAHUA-5227 (DH-IPC-WPT1339DDP-SW-3E2-PV-0280B/0600B-EUR)
Certifications and standards
- CE
