Description
Specifications

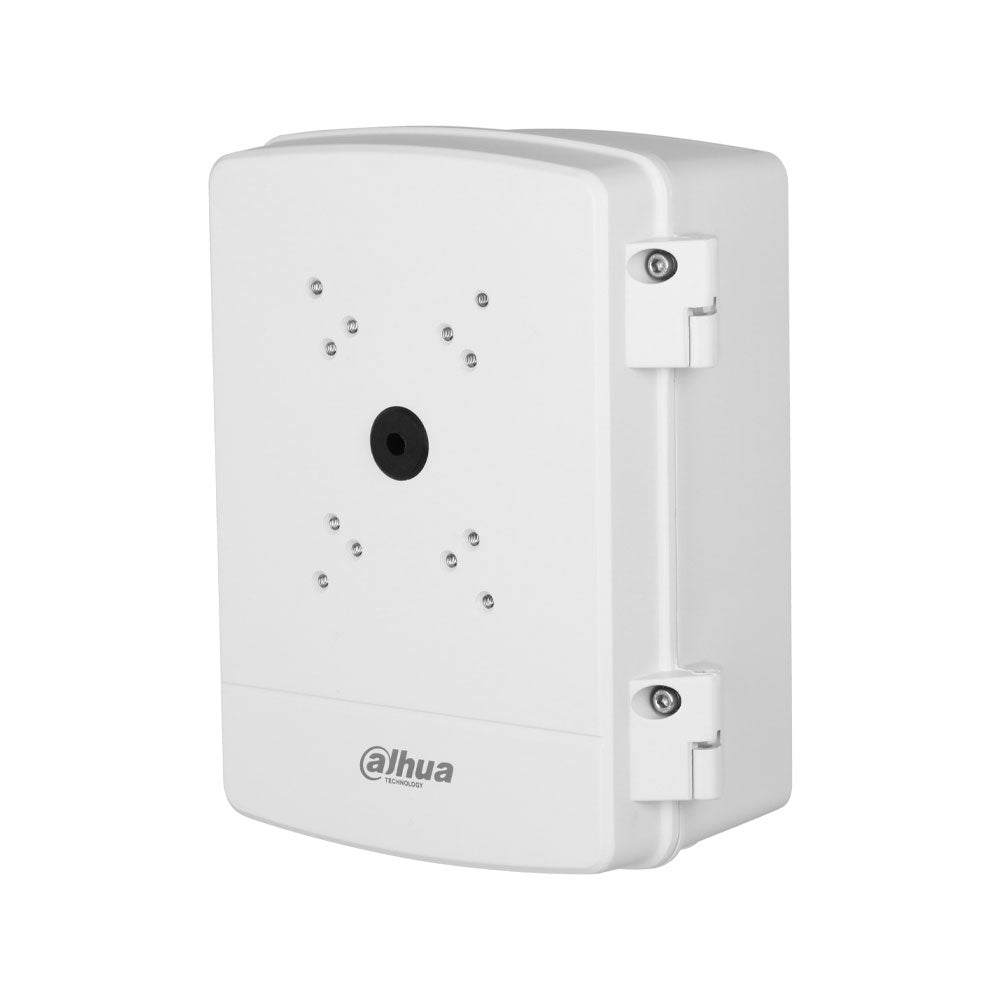

- Dahua anti-corrosion camera power box
- Maximum load 8.0 kg (17.64 lb)
- G 1/2 thread
- Compatible with PTZ and IPC cameras
- Accepts various types of power adapters
- Accepts electrical components such as power adapters, circuit breakers, and surge protectors.
Environmental Protection
- IP66 protection
- Moderate level of corrosion protection
- Operating temperature range -40°C to +60°C (-40°F to +140°F)
- Operating humidity <90% RH
- Storage temperature -40°C to +60°C (-40°F to +140°F)
- Storage humidity 10%-90% RH
Physical Characteristics
- Constructed from aluminum alloy and SECC steel
- White finish
- Wall, pole, or corner mounting
- Dimensions: 297.2 mm × 248.0 mm × 130.7 mm (L × W × H)
- Packaging dimensions: 366.0 mm × 298.0 mm × 183.0 mm (L × W × H)
- Weight: net 3.38 kg (7.45 lb), gross 3.86 kg (8.51 lb)
Contents
- Dahua Anti-Corrosion Power Box DAHUA-5222 (DH-PFA6400SA)
- 4 M6×25 screws
- 4 M6×14 screws
- 4 M8 plastic anchors
- 1 S5.0 wrench
- 3 sealing gaskets
- 1 silicone plug
- 5 cable ties
- 1 installation guide
