Description
Technical Specifications
- 5MP CMOS sensor
- Maximum resolution of 5MP (2880×1620)
- Auto day/night mode with ICR, color, and B/W
- Minimum illumination of 0.001 lux at F1.0 in color, 30 IRE
- Minimum illumination of 0.0001 lux at F1.0 in black and white, 30 IRE
- 0 lux with illuminator activated
- IR illumination up to 40 m
- Warm light illumination up to 40 m
- Automatic and manual illumination control
- 2 IR illuminators
- 2 warm light illuminators
- Fixed 3.6 mm optics
- M12 mount
- Maximum aperture F1.0
- Viewing angle 89° horizontal, 47° vertical, and 104° diagonal
- Minimum focusing distance of 2.2 m
Video
- CVI: 5M@25 fps, 4M@25 fps and 1080P@25 fps in PAL
- CVI: 5M@25 fps, 4M@30 fps and 1080P@30 fps in NTSC
- AHD: 4M@25 fps in PAL and 4M@30 fps in NTSC
- TVI: 4M@25 fps in PAL and 4M@30 fps in NTSC
- CVBS: 960H in PAL and NTSC
- Resolutions 5M (2880×1620), 4M (2560×1440), 1080P (1920×1080) and 960H (960×576/960×480)
- Switchable CVI, TVI, AHD and CVBS video output via BNC port
Features
- BLC, HLC, HLC-Pro, true WDR 120 dB
- Automatic and regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Smart IR&WL lighting modes, WL mode and IR mode
- Electronic defog
- 4X digital zoom
- Mirror
- Privacy mask open/close with 8 rectangular zones
- Super Adapt
- Red and blue light interference protection
Smart Functions
- Active deterrence with red-blue light and siren
- Audio 1: Alarm
- Audio 2: Do not park here
- Audio 3: Private property, no trespassing
- Audio 4: Warning zone, stay away
- Audio 5: Welcome
- Configurable volume in high, medium and low levels
- Configurable duration from 5 s to 60 s
- 110 dB siren
- Configurable red-blue flash from 5 sec. to 60 sec.
- Configurable flash frequency in high, medium and low levels
Audio
- 1-channel built-in microphone
Alarms
- 1 alarm output
Communication Interface
- 1 BNC port for CVI, TVI, AHD and CVBS video output
Power Supply
- 12V DC ±30% power supply
- Maximum power consumption 10.5 W with LED on
- Power adapter is recommended for camera power supply
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity below 95% non-condensing
- 40 °C to +60 °C storage temperature
- IP67 protection rating
Physical Characteristics
- Metal material
- Wall, ceiling or vertical pole installation
- 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°.
- Dimensions of Φ122.0 mm × 110.9 mm
- 165 mm × 165 mm × 138 mm packaging dimensions
- Net weight 0.7 kg
- Gross weight 0.96 kg
Contents

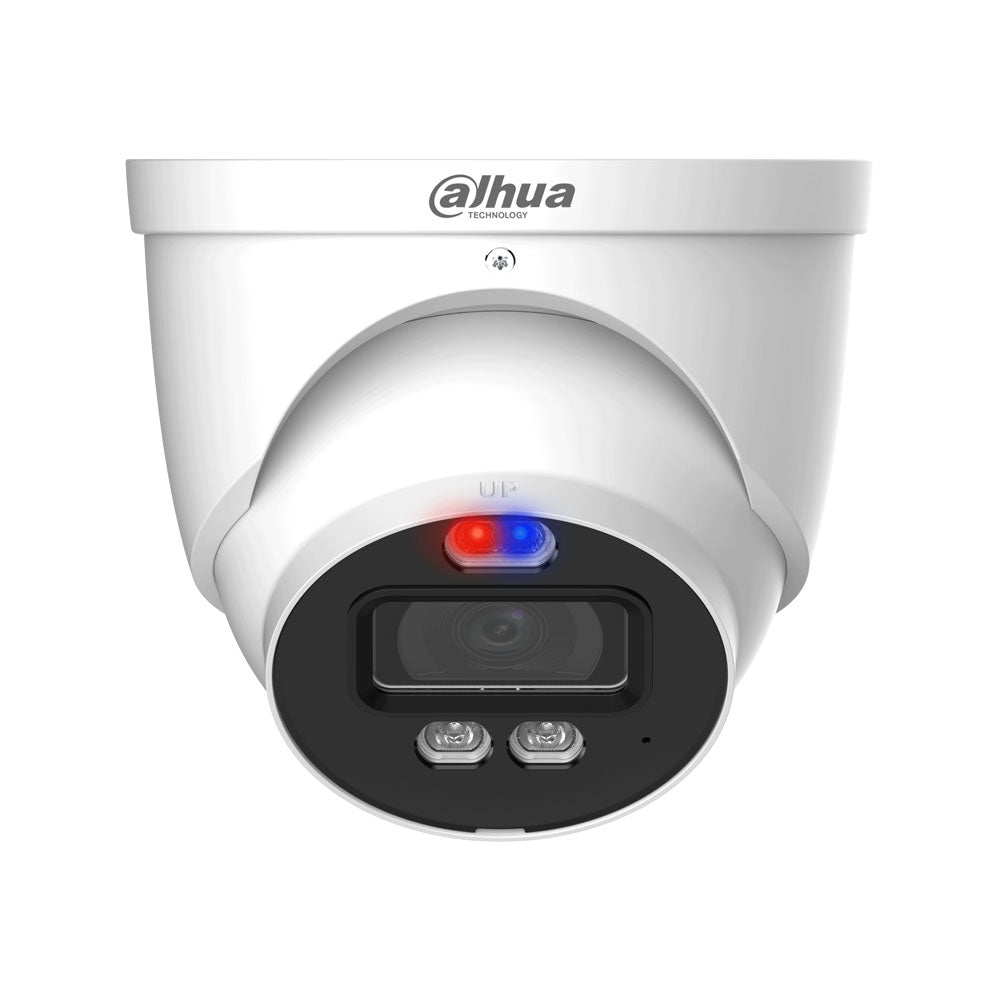

- Dahua Active Deterrence 4-in-1 Dome DAHUA-5219 (DH-HAC-ME1509HP-A-PV-0360B-S2)
Certifications and Standards
- CE: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014 and EN62368-1:2014+A11:2017
- FCC: CFR 47 FCC Part 15 subpart B and ANSI C63.4-2014
- UL: UL62368-1 and CAN/CSA C22.2 No.62368-1-14
