Description
Light Source Technical Specifications
- LED light source
- 20 integrated LEDs
- Range from 15m to 50m
- Viewing angle of 20°
- Wavelength 850 nm
- Continuously adjustable brightness from 10% to 100%
- Activation threshold of 30 lux
- One-piece lens for balanced illumination
Features
- Scenario-based on/off control
- All-in-one integrated structure with die-cast aluminum housing
- Multi-angle adjustment
- Design suitable for illumination in video surveillance, vehicle and pedestrian detection and capture
- Usage in parking lots, toll booths, entrances and exits, and security checkpoints
Communication Interface
- 1 RS-485 port
- Remote control via RS-485 for use with remote control cameras
Power Supply
- 12 VDC power supply
- Rated power of 13 W
Environment
- Operating temperature -30°C to +70°C (-30°C to +70°C)
- Operating humidity 0% to 90% RH non-condensing
- Storage temperature -30°C to +70°C (-22°F to 158°F)
- Storage humidity 10% to 90% RH non-condensing
- IP66 protection
- IK10 vandal protection
- Surge protection of ±6kV common mode and ±4kV differential mode
Physical Characteristics
- Aluminum alloy housing
- White color
- Wall, pole or flat surface mounting
- Dimensions: 186.4 mm × 160 mm × 31.5 mm
- Net weight 0.76 kg
- Gross weight 1.0 kg
Contents

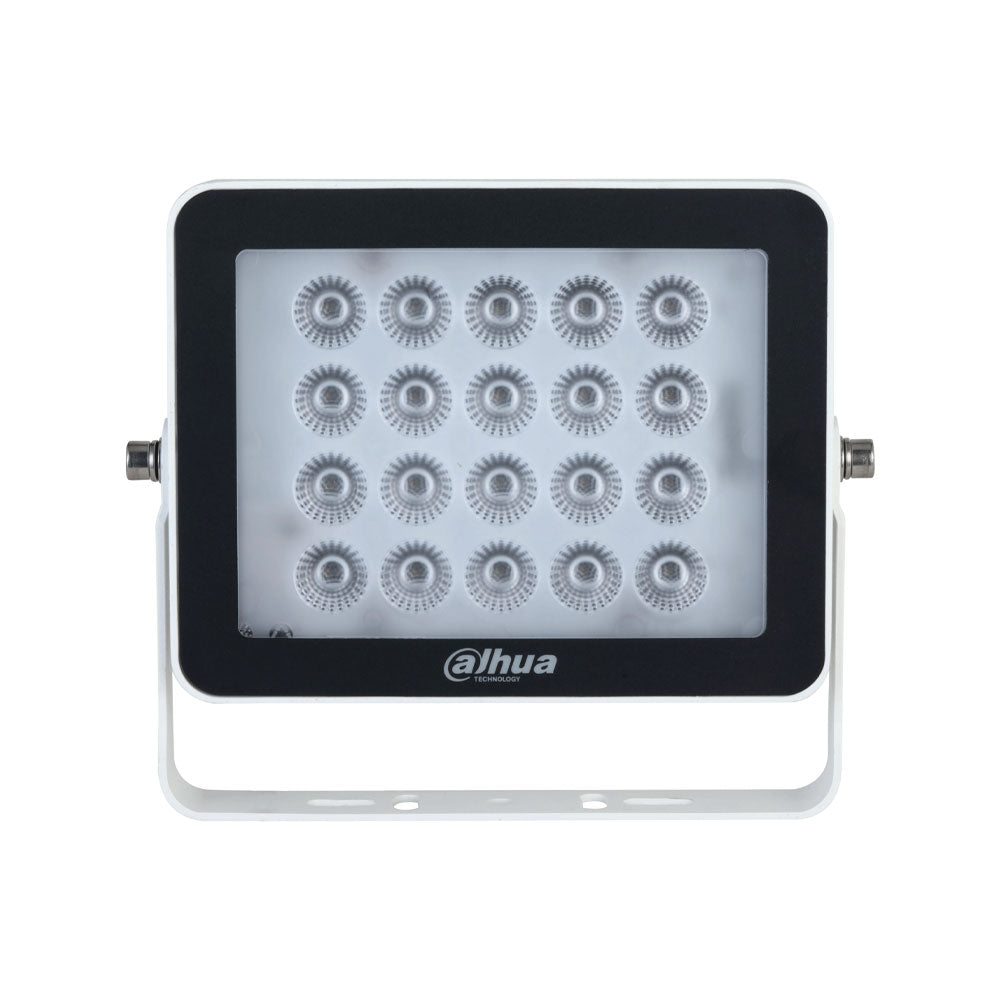

- Dahua IR Illuminator DAHUA-5212 (DH-PFM522P-D1-IR)
- Installation instructions
Certifications and Standards
- CE LVD according to EN 62368-1
- CE EMC according to EN55032, EN55024, EN55035, EN61000-3-2 and EN61000-3-3
- FCC Part 15B
