Description
Technical Features
- Dahua Lite 16-channel IP NVR, 2 SATA bays
- Industrial-grade processor
- Embedded Linux operating system
- Web and local GUI operating interface
- Supports IP cameras up to 12 MP
- AI disabled bandwidth of 144 Mbps input, 144 Mbps recording, and 72 Mbps output
- AI enabled bandwidth of 72 Mbps input, 72 Mbps recording, and 36 Mbps output
- Access to 16 IP channels
- Simultaneous playback of up to 16 channels
Video
- Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression
- Supported resolutions 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080P, 720P, 960P, D1, CIF and QCIF
- AI disabled decoding of 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channels 6 MP@30 fps, 2 channels 5 MP@30 fps, 3 channels 4 MP@30 fps and 6 channels 1080P@30 fps
- AI enabled decoding of 1 channel 8 MP@30 fps, 1 channel 6 MP@30 fps, 1 channel 5 MP@30 fps, 2 channels 4 MP@30 fps and 4 channels 1080P@30 fps
- 1 HDMI output and 1 VGA output
- HDMI with resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720
- VGA with resolutions 1920 × 1080, 1280 × 1024 and 1280 × 720
- Multi-screen display 1/4/8/9/16
- General, motion detection, intelligent and alarm recording modes
- Instant, general, event, tag, and smart playback
- Backup via USB device and network
Features
- One-click arming and disarming
- Compatible with third-party cameras via ONVIF
Smart Functions
- AI by recorder with SMD
- AI by camera with perimeter protection and SMD
- Perimeter protection by camera on all channels with 4 targets per second
- SMD Plus by recorder on 4 channels with secondary filtering for humans and motor vehicles
- SMD Plus by camera on all channels with 8 targets per second
Audio
- 1 RCA audio input
- 1 RCA audio output
- G.711a, G.711u, PCM and G.726 audio compression
Storage
- 2 SATA ports
- Each HDD supports up to 20 TB
Alarms
- General alarm for motion detection, external camera alarm and PIR alarm
- Anomaly alarm for no disk, disk error, insufficient space, low quota, network disconnection, IP conflict, MAC conflict, video loss, video tampering and camera offline.
- Smart alarm by perimeter protection and SMD Plus
- Actions related to recording, snapshot, audible alarm, log, presets, email sending and patrols
Communication Interface
- 2 USB 2.0 ports, 1 front and 1 rear
Network
- 1 RJ45 10/100/1000 Mbps network port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP filter, DDNS, IP search, P2P and auto-registration
- ONVIF 23.12 Profile T, Profile S and Profile G, CGI and SDK supported
- Mobile access from iOS and Android
- Supported browsers Chrome, IE, Safari, Edge and Firefox
Power Supply
- 12 V DC, 4 A power supply
- Power consumption less than 10 W without HDD
Environment
- Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
- Storage temperature -20 °C to +60 °C (-4 °F to +60 °C)
- Operating humidity from 10% to 93% non-condensing
Physical Characteristics
- 1U format
- 375.0 × 282.9 × 53.0 mm (375.0 × 282.9 × 53.0 mm) dimensions
- Net weight 1.49 kg
- Gross weight 2.78 kg
Content

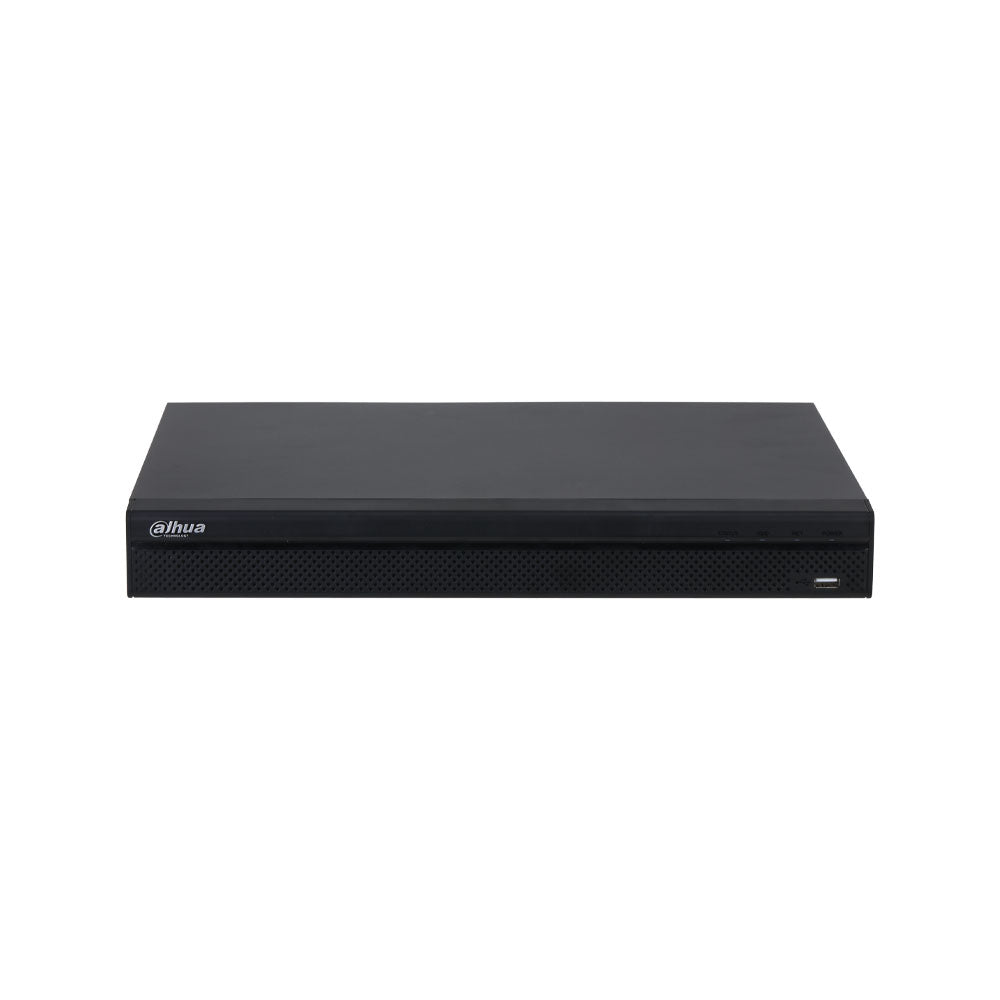

- DAHUA-5211 (DHI-NVR2216-4KS3) IP NVR recorder
Certifications and Standards
- CE-LVD IEC 62368-1:2014
- CE-EMC EN IEC 61000-3-2:2019
- CE-EMC EN 61000-3-3:2013+A1:2019
- EN CE-EMC EN 55032:2015+A11:2020
- EC-EMC EN 55035:2017+A11:2020
- EC-EMC EN 55024:2010+A1:2015
- ECEMC EN 50130-4:2011+A1:2014
