Technical specifications

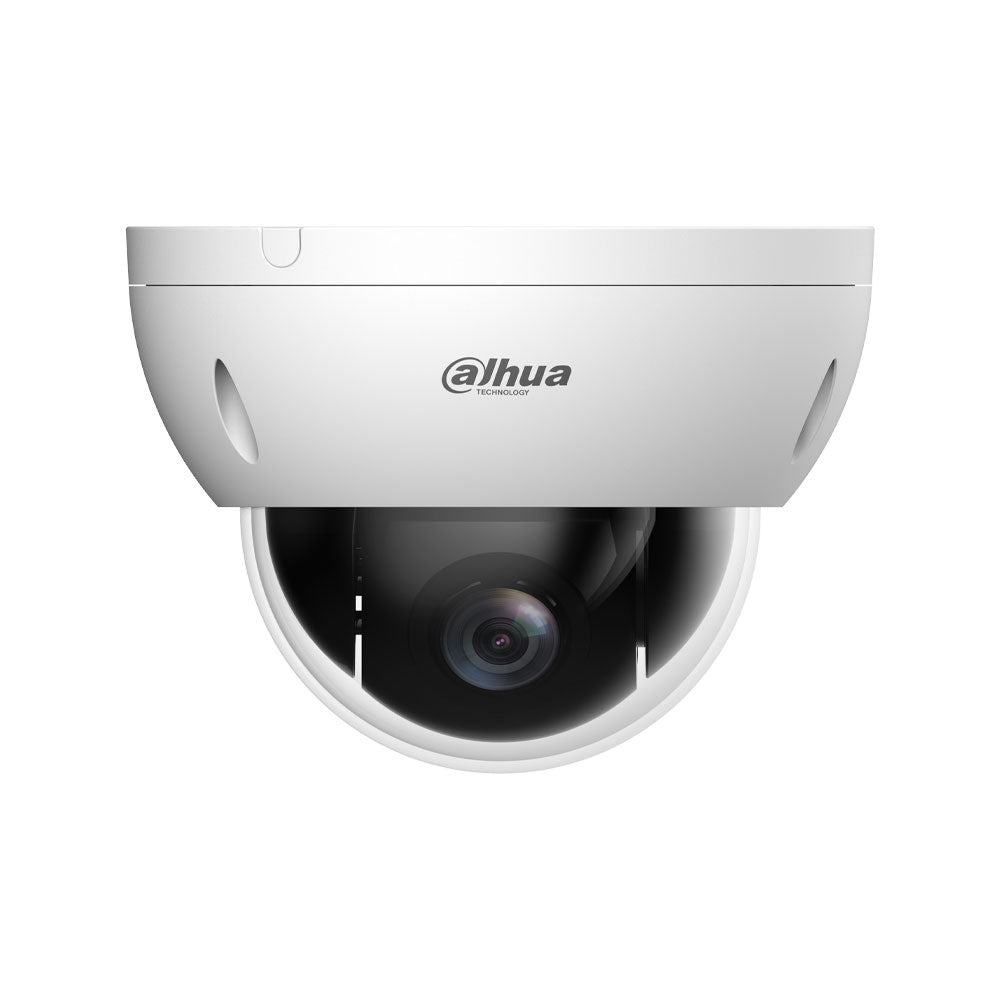

- Dahua WizSense PTZ IP Dome
- 1/2.8 CMOS sensor
- 4 MP resolution
- Maximum resolution of 2560 × 1440
- Auto day/night with ICR, color and black and white
- Minimum illumination in color of 0.005 lux@F1.6
- Minimum black and white illumination of 0.0005 lux@F1.6
- Motorized optic from 2.8 mm to 12 mm
- Maximum aperture F1.6-F3.0
- Horizontal viewing angle of 90.3° to 29.4°.
- Vertical viewing angle of 48.5° to 16.6°
- Diagonal viewing angle of 105.7° to 33.6°
- 4x optical zoom
- Auto, semi-auto or manual focus
- Minimum focus distance of 1.5 m
- Fixed iris
Video
- Video compression H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG in substream and Smart H.264
- 3-stream capability
- Resolutions: 4M (2560 × 1440), 3M (2304 × 1296), 1080P (1920 × 1080), 1.3M (1280 × 960), 720P (1280 × 720), D1 (704 × 576), VGA (640 × 480) and CIF (352 × 288)
- Stream 1: 4MP/3MP/1080P/1.3MP/720P@1-25/30 fps
- Stream 2: D1/VGA/CIF@1-25/30 fps
- Stream 3: 720P@1-25/30 fps
- CBR/VBR bit rate control
- H.264 bit rate from 2816 Kbps to 13056 Kbps
- H.265 bit rate from 1024 Kbps to 7936 Kbps
Features
- BLC, HLC, digital WDR
- Auto white balance, indoor, outdoor, ATW, manual, sodium lamp, daylight and street light
- Automatic or manual gain control
- 2D NR and 3D NR noise reduction
- Motion detection
- Region of interest (RoI)
- Image stabilization
- Electronic defogging
- 16x digital zoom
- 180° image rotation
- Signal-to-noise ratio ≥55 dB
- Privacy masking up to 24 zones, with up to 8 zones in the same view and 8 colors available
- Starlight technology for video in low light environments
- PFA technology for better focus during zooms
Smart features
- IVS perimeter protection with line crossing, intrusion, fence crossing, loitering, abandoned or lost object, rapid movement, parking, crowd gathering and alarm classification by person or vehicle.
- Face detection with tracking, snapshot and face enhancement
- Face cropping for face and thumb photography
- Real-time capture strategies and quality prioritization
- SMD 3.0
Positioner
- Pan range from 0° to 355°
- Tilt from 0° to 90°
- 0.1°/s to 100°/s manual pan control speed
- 0.1°/s to 60°/s manual tilt control speed
- 100°/s pan adjustment speed
- 60°/s tilt preset speed
- 300 presets
- 8 tours with up to 32 presets per tour
- 5 patterns
- Idle motion by pattern, preset or tour
- Pelco-P/D PTZ SD protocol with auto-recognition
- PTZ lock
Storage
- FTP, MicroSD card up to 512 GB (card not included) and NAS storage
Alarms
- Alarm linkage by capture, preset, patrol, pattern, recording, digital alarm input and email sending
- Motion detection, tampering, network disconnection, IP address conflict, memory card status, memory space and power exception alarms
Network
- RJ45 10/100 Base-T network port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SAMBA and NFS
- ONVIF S/G/T profiles, P2P, CGI and SDK support
- Unicast and multicast streaming method
- 20 users with 64M total bandwidth
- DMSS and DSS Pro management software
- iOS and Android mobile client
- Supported browsers IE 9 and later, Chrome 41 and later, Firefox 50 and later, iOS 10 and later
Power supply
- 12 V DC, 1 A ±10% power supply
- 802.3af PoE
- Basic power consumption 2.3 W
- Maximum power consumption 6.1 W
Environment
- Operating temperature -30°C to +60°C (-30°F to +60°C)
- Operating humidity ≤95%.
- Storage temperature -30°C to +60°C (-30°F to +60°F)
- Storage humidity ≤95%.
- IP66 protection
- IK10 vandal resistance
- 6000 V lightning protection
Physical characteristics
- Dimensions: 89 mm × Ø122 mm
- Net weight 0.5 kg
- Gross weight 0.7 kg
Contents
- Dahua WizSense PTZ IP Dome DAHUA-5207 4MP (DH-SD22404DB-GNY)
Certifications and standards
- CE-LVD: IEC 62368-1
- CE-EMC: EN 55032, EN IEC 61000-3-2, EN 55024, EN 55035 and EN 50130-4
- FCC: 47 CFR FCC Part 15, Subpart B and ANSI C63.4:2014
