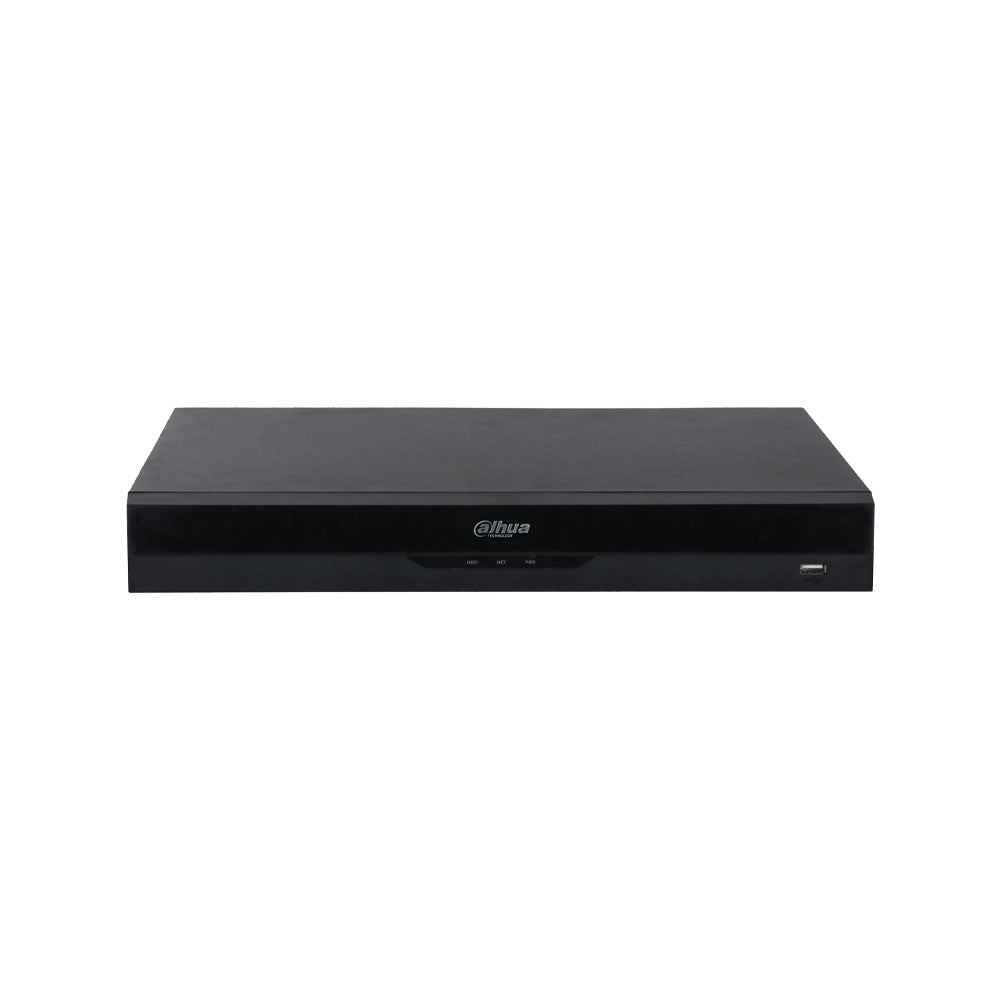

Name: Dahua WizSense IP NVR up to 16 MP, 32 channels
Brand: Dahua
SKU: DAHUA-5199
Price: 559.06 EUR
Availability: InStock

Roll over image to zoom in Click on image to zoom

Dahua WizSense 32-channel, 2-bay SATA IP NVR
Industrial-grade processor
Embedded Linux operating system
Web operating interface and local GUI
Supports IP cameras up to 16 MP
AI disabled bandwidth of 256 Mbps input, 256 Mbps recording, and 256 Mbps output
AI enabled bandwidth of 180 Mbps input, 180 Mbps recording, and 180 Mbps output
Access to 32 IP channels
Simultaneous playback of up to 16 channels
Supports disk groups

Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
Supported resolutions: 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080P, 720P, 960P, D1, and CIF
AI disabled decoding of 2 channels 16 MP@30 fps, 2 channels 12 MP@30 fps, 4 channels 8 MP@30 fps, 4 channels 6 MP@30 fps, 6 channels 5 MP@30 fps, 8 channels 4 MP@30 fps, 16 channels 1080P@30 fps, and 32 channels 720P@30 fps
AI decoding of 1 channel 16 MP@30 fps, 2 channels 12 MP@30 fps, 3 channels 8 MP@30 fps, 3 channels 6 MP@30 fps, 4 channels 5 MP@30 fps, 6 channels 4 MP@30 fps, 12 channels 1080P@30 fps, 16 channels 720P@30 fps, and 32 channels D1@30 fps
1 HDMI and 1 VGA output
HDMI with resolutions of 3840 × 2160, 1920 × 1080, 1280 × 1024, and 1280 × 720
VGA with resolutions of 1920 × 1080, 1280 × 1024, and 1280 × 720
Configurable simultaneous or heterogeneous output for VGA and HDMI
First screen with 1/4/8/9/16/25/36 display
Second screen with 1/4/8/9/16 display
General, motion detection, intelligent, and alarm recording modes
Instant playback, general playback, event playback, tag playback, and intelligent playback
Backup via USB device and network

Face detection with tracking, optimization, and best image capture
Face recognition by comparison with face databases
Supports EPTZ
One-click arming and disarming
Compatible with third-party cameras from Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, and Canon
QuickPick 2.0 for human and vehicle target search

AI by recorder with face detection, face recognition, perimeter protection, and SMD
AI by camera with face detection, face recognition, perimeter protection, SMD, ANPR, people counting, stereo analysis, and heat mapping
Perimeter protection by recorder on 2 channels with 10 IVS rules per channel
Perimeter protection by camera on all channels with 8 targets per second
Facial attributes (gender, age group, glasses, expressions, mask, and beard)
Face detection by recorder on 1 channel, up to 12 face images per second
Face detection by camera on all channels with 8 targets per second
Up to 10 face databases with 20,000 images and a total capacity of 2.5G
Face recognition with camera detection and recorder recognition on 8 channels at 12 face images per second
Face recognition with recorder detection and recognition on 1 channel at 12 face images per second
Face recognition by camera on all channels at 8 targets per second
SMD Plus by recorder on 4 channels with secondary filtering for humans and motor vehicles
SMD by camera on all channels at 16 targets per second
AI search by target attributes and event types
Heat map by camera
ANPR by camera with authorized and blocked lists per camera

4 alarm inputs
2 alarm outputs
General alarm for motion detection, privacy masking, video loss, scene change, PIR alarm, and external IPC alarm
Anomaly alarm for no disk, disk error, low space, low quota, abnormal disk status, network disconnection, IP conflict, MAC conflict, video loss, video tampering, camera offline, and audio detection.
Smart alarm by face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, and heat mapping.
Link actions by recording, snapshot, external IPC alarm output, audio, buzzer, log, preset, and email

1 RJ45 10/100/1000 Mbps network port
Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, and Auto Register
ONVIF 23.12 Profile T, Profile S, and Profile G, CGI, and SDK supported
Mobile access from iOS and Android
Supported browsers Chrome, IE9 and later, Firefox

Dahua WizSense IP NVR up to 16 MP, 32 channels
