Description
Technical Specifications

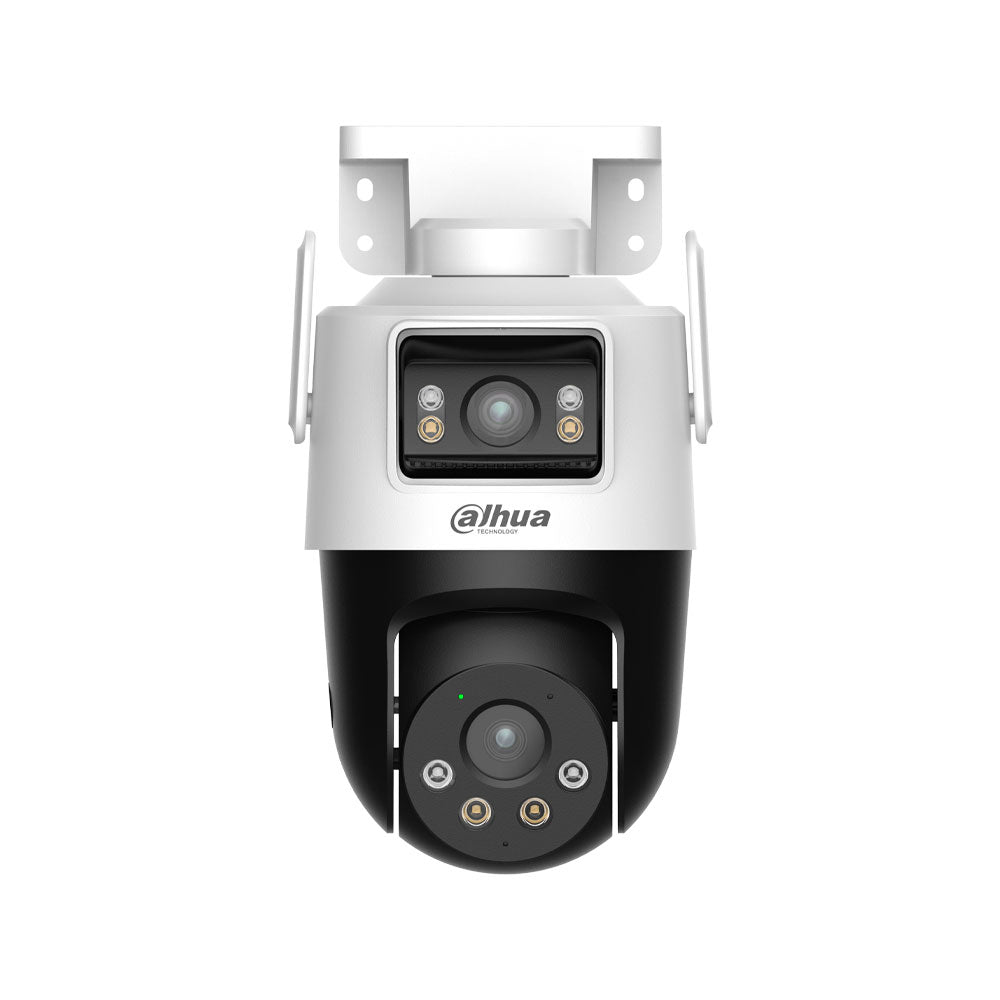

- Dahua Wireless Dual Optical WiFi PTZ IP Dome
- Dual 1/3” CMOS sensor
- Maximum resolution per module 5MP (2880×1620)
- Automatic day/night mode with ICR, color, and black and white
- Fixed module with IR illumination up to 30m (100ft)
- Fixed module with warm light up to 20m (65ft)
- PT module with IR illumination up to 50m (50ft)
- PT module with warm light up to 40m (130ft)
- 2 IR LEDs and 2 warm lights in the fixed module
- 2 IR LEDs and 2 warm lights in the PT module
- 2.8mm fixed lens in the fixed module
- 6mm fixed lens in the PT module
- Maximum aperture F1.6
- Fixed module viewing angle 95° horizontal, 53° vertical, and 110° diagonal
- PT module viewing angle 49° horizontal, 26° vertical, and 57° diagonal
Video
- H.265 compression
- Main Stream: 2880 × 1620 @ 15 fps
- Secondary Stream: 640 × 360 @ 15 fps
- H.265 bitrate from 768kbps to 4096kbps
Features
- Digital WDR
- Motion detection
- Image rotation 0° and 180°
- Preset patrol
- Sound and light alarm
- Smart Dual Light
- Multi-zone coverage with simultaneous display of two zones
Smart Functions
- Human detection
- Vehicle detection
- Auto tracking
Positioner
- Fixed module with adjustment from -10° to 15°.
- PT module with horizontal movement from 0° to 352°.
- PT module with vertical movement from 0° to 90°.
Audio
- Built-in microphone
- Built-in speaker
- Two-way audio
- G.711a audio compression
Storage
- microSD card slot up to 256GB (card not included)
Communication Interface
- Bluetooth pairing
Network
- RJ45 10/100 Base-T Ethernet port
- WiFi 2.4 GHz IEEE 802.11b/g/n/ax
- DMSS management software
- Mobile application for iOS and Android
Power Supply
- 12V DC power supply
- Basic consumption 2.6 W
- Maximum consumption 10.6 W with active stream, IR, sound, and light deterrence
Environment
- Operating temperature -30 °C to +50 °C
- Operating humidity up to 95% non-condensing
- IP66 protection
Physical Characteristics
- Plastic material
- Dimensions 159.4 mm × 119.1 mm × 210 mm
- Net weight of 585 g
Contents
- Dahua Wireless DAHUA-5197 Dual Optical WiFi IP Camera (DH-IPC-WPT1539DDP-SW-5E2-PV-0280B/0600B-EUR)
Certifications and Standards
- CE
