Description
Technical specifications

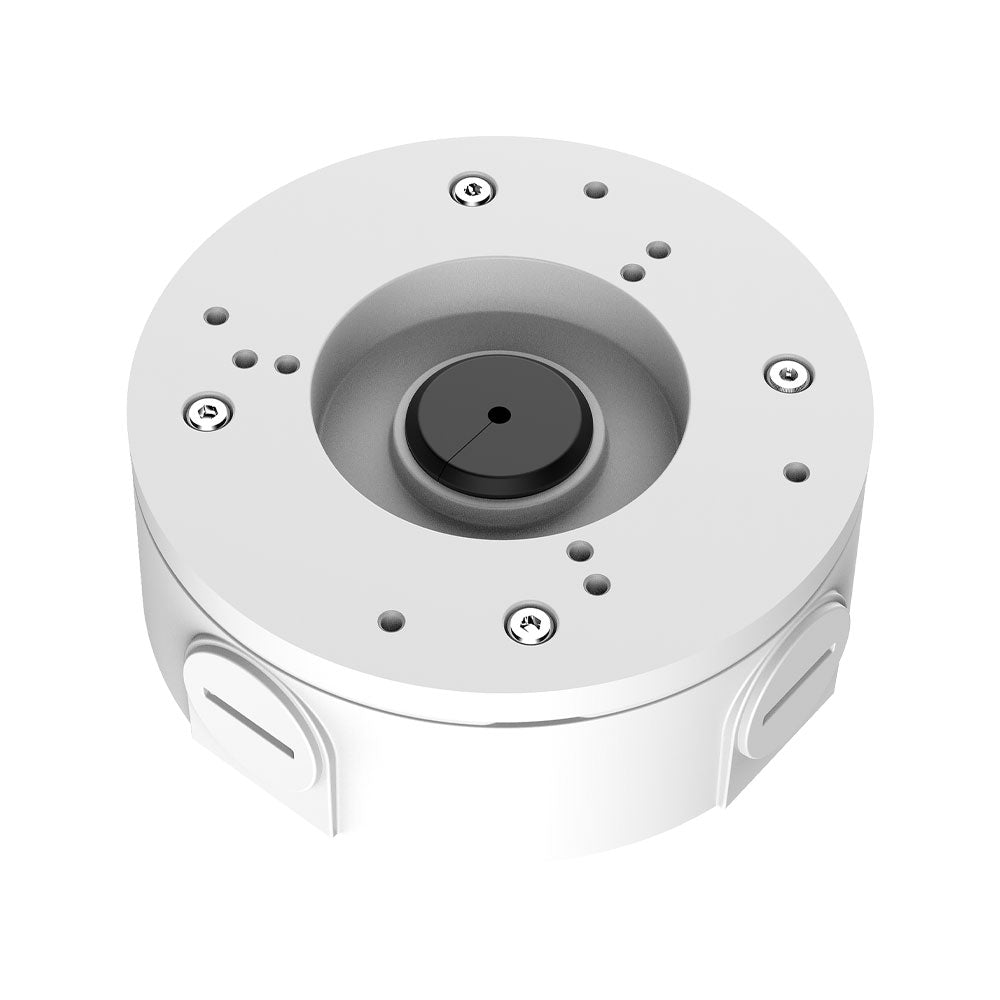

- Waterproof junction box for Dahua cameras
- Maximum load 3.0 kg (6.61 lb)
- G 3/4" thread
- IP66 protection
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Operating humidity <90% RH
- Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage humidity 10%-90% RH
Physical characteristics
- Aluminum alloy construction
- White finish
- Installation as a junction box
- Dimensions: Φ123.4 mm × 44.9 mm
- Packaging dimensions: 187.0 mm × 164.0 mm × 72.0 mm (L × W × H)
- Shipping package dimensions: 578.0 mm × 383.0 mm × 349.0 mm (L × W × H)
- Weight: net 0.39 kg (0.86 lb), gross 0.51 kg (1.12 lb)
- Packaging: 30 pieces per carton
Contents
- Dahua waterproof junction box DAHUA-5188 (DH-PFA5300R)
- 4 M4 × 10 screws
- 3 ST4 × 25 screws
- 3 plastic expansion plugs
- 1 S3.0 wrench
- 1 sealing gasket
- 1 mounting template
