Description
Technical specifications

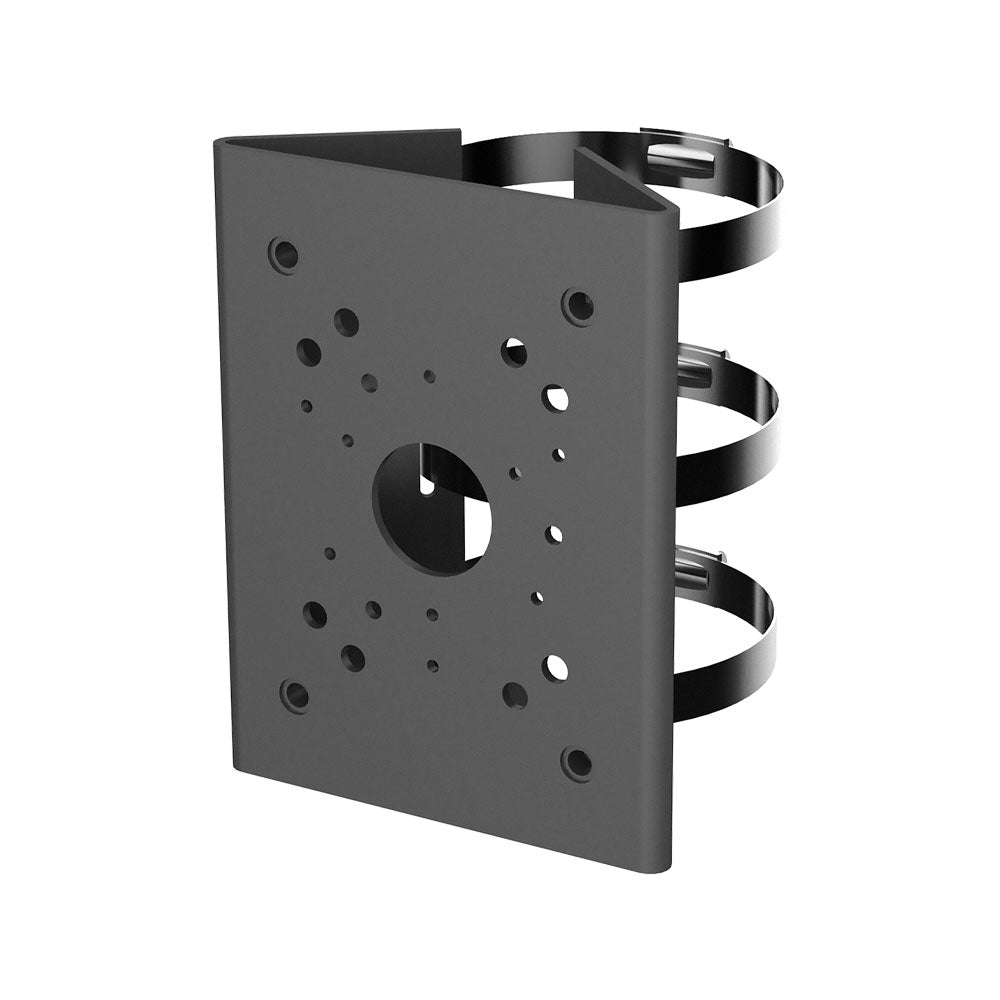

- Dahua pole mount bracket for mounting cameras
- Bracket material: SECC
- Clamps material: SUS304
- Maximum load capacity: 7 kg (15.43 lb)
- Designed for poles from Ø80 mm to Ø150 mm (Ø3.15 in to Ø5.91 in)
- Compatible with junction boxes, wall brackets, power boxes, universal brackets, and other accessories.
Environment
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
- Operating humidity: < 90% RH
- Storage temperature: -40°C to +60°C (-40°F to +140°F)
- Storage humidity: 10% to 90% RH
- Basic anti-corrosion protection
Physical characteristics
- Color: Black
- Mounting: Pole
- Dimensions: 130.4 mm × 45.0 mm × 170.0 mm (5.13 in × 1.77 in × 6.69 in)
- Packaging dimensions: 177.0 mm × 177.0 mm × 52.0 mm (6.97 in × 6.97 in × 2.05 in)
- Net weight: 1.09 kg (2.40 lb)
- Gross weight: 1.28 kg (2.82 lb)
Contents
- Dahua pole bracket DAHUA-5187 (DH-PFA150-B-V3)
- 3 M6×14 screws
- 4 M8×25 screws
- 1 S5.0 wrench
- 1 S6.0 wrench
- 3 80-150 mm metal clamps
