Description
Technical specifications

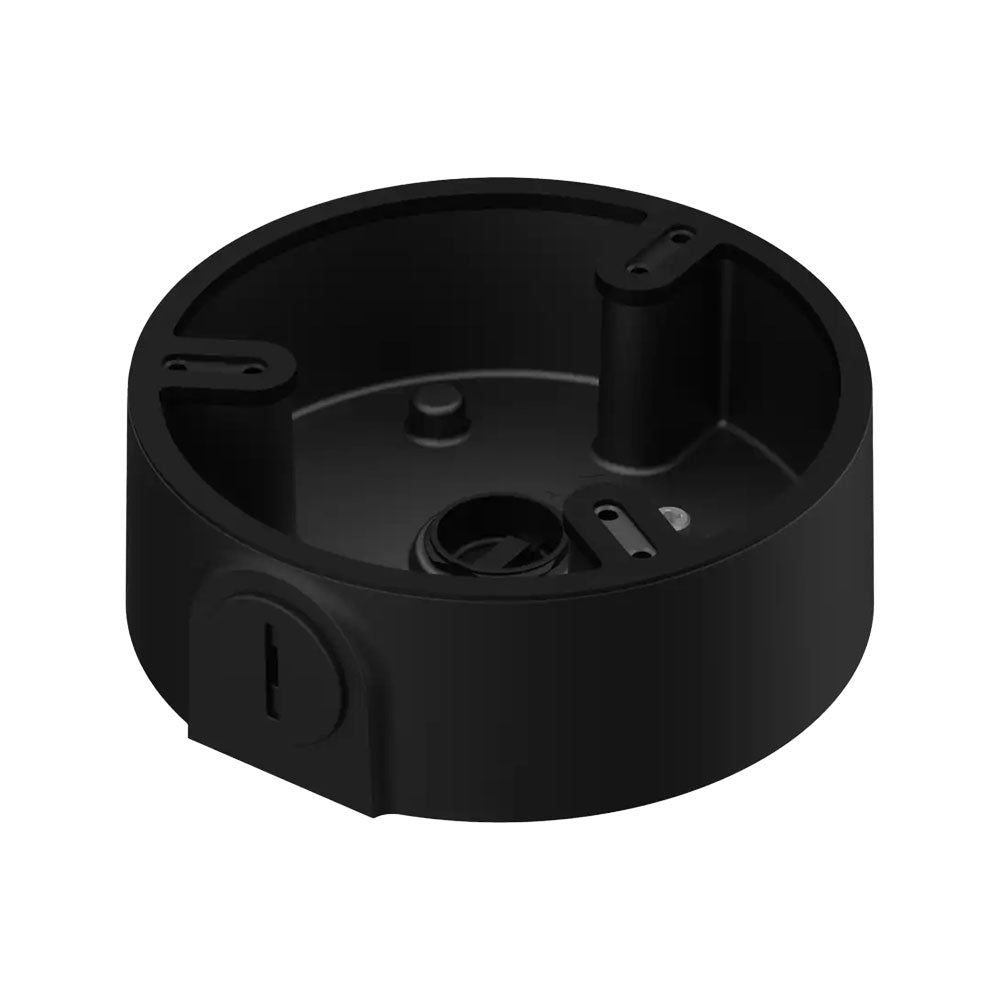

- Dahua camera connection box
- Maximum load capacity of 3.0 kg
- G 3/4 thread
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Operating humidity <90% RH
- Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage humidity 10%-90% RH
Physical characteristics
- Aluminum alloy construction
- Black finish
- Junction box installation
- Dimensions: Φ129.1 mm × 45.0 mm
- Product dimensions: 185.0 mm × 163.0 mm × 71.0 mm (L × W × H)
- Packaging dimensions: 578.0 mm × 383.0 mm × 349.0 mm (L × W × H)
- Weight: net 0.4 kg (0.88 lb), gross 0.58 kg (1.27 lb)
- Packaging: 30 units per carton
Contents
- Dahua Junction Box DAHUA-5183 (DH-PFA197R-B)
- 3 M4×10 screws
- 3 ST4×25 screws
- 3 plastic expansion plugs
- 1 S3.0 wrench
- 1 waterproof gasket
- 1 mounting template
