Description
Technical specifications
- 2MP CMOS sensor
- Maximum resolution 1080P (1920×1080)
- Minimum illumination 0.01 lux at F2.0 in B/W, 30 IRE, 0 lux with illuminator on
- Smart IR up to 10 m at 940 nm without visible IR exposure
- Automatic and manual illumination control
- 2 IR illuminators
- 2.8mm fixed lens
- M12 mount
- Maximum aperture F2.0
- Viewing angle 105° horizontal, 58° vertical and 118° diagonal
- Minimum focusing distance 0.5 m
Video
- CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- TVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- CVBS: 960H in PAL and NTSC
- Resolution 1080P (1920×1080)
- CVI, TVI, AHD and CVBS video output switchable via BNC port
- Day/night color and B/W mode
Features
- BLC, HLC, Digital WDR
- Automatic and area white balance
- Automatic and manual gain control
- 2D NR noise reduction
- Smart IR illumination mode
- Mirror
- Privacy mask on/off with 8 rectangular zones
- Super Adapt
- Multilingual OSD with 11 languages
Communication interface
- 1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
- 12V DC ±30% power supply
- Maximum power consumption 3.3 W with IR on
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Operating humidity less than 95% non-condensing
- Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage humidity less than 95% non-condensing
Physical characteristics
- Plastic material
- Wall mounting
- 3-AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 90° and rotation from 0° to 360°.
- Dimensions 61.7 mm × 58.1 mm × 119.7 mm
- Net weight 0.12 kg
- Gross weight 0.19 kg
Content

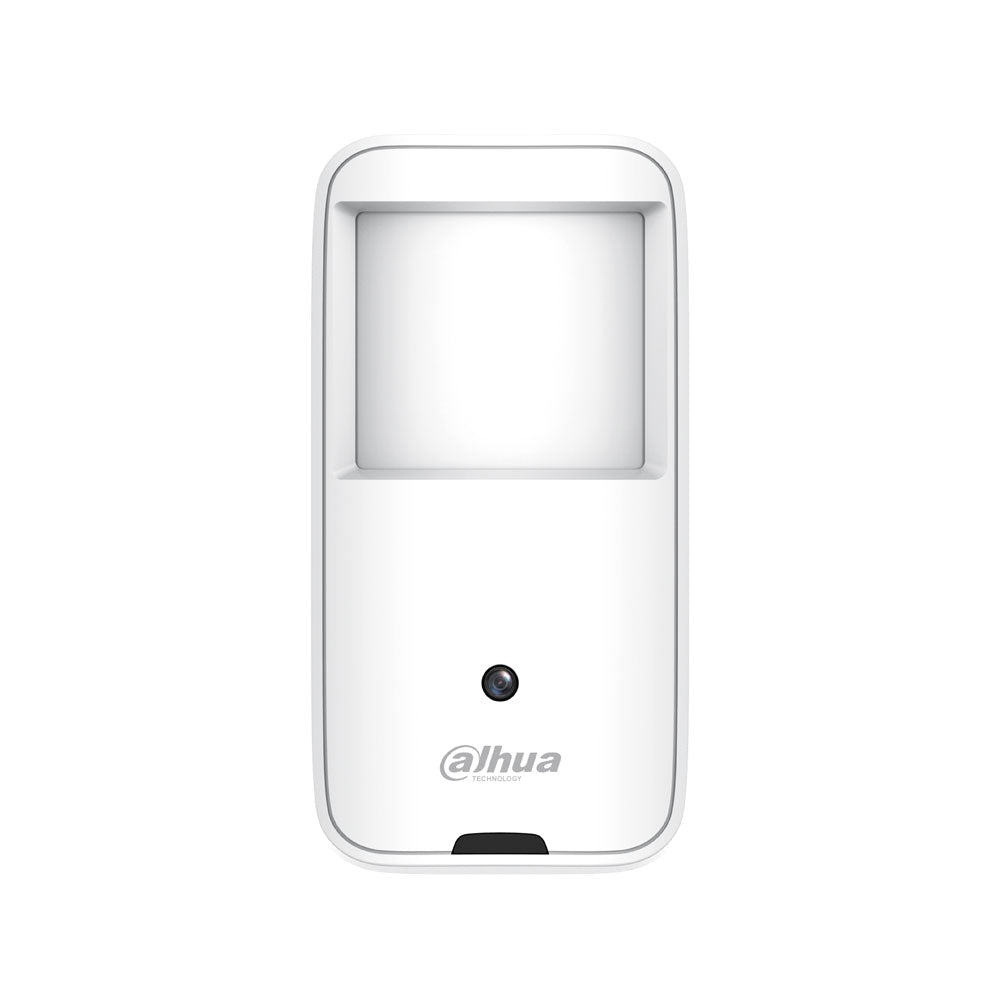

- DAHUA-5176 (DH-HAC-HUM3200AP-0280P-S5) 4-in-1 Hidden Camera Dummy PIR Detector
Certifications and standards
- CE-LVD: EN 62368-1
- CE-EMC: EN 55032 and EN 55035
- FCC: 47 CFR FCC Part 15, Subpart B
