Description
Technical specifications

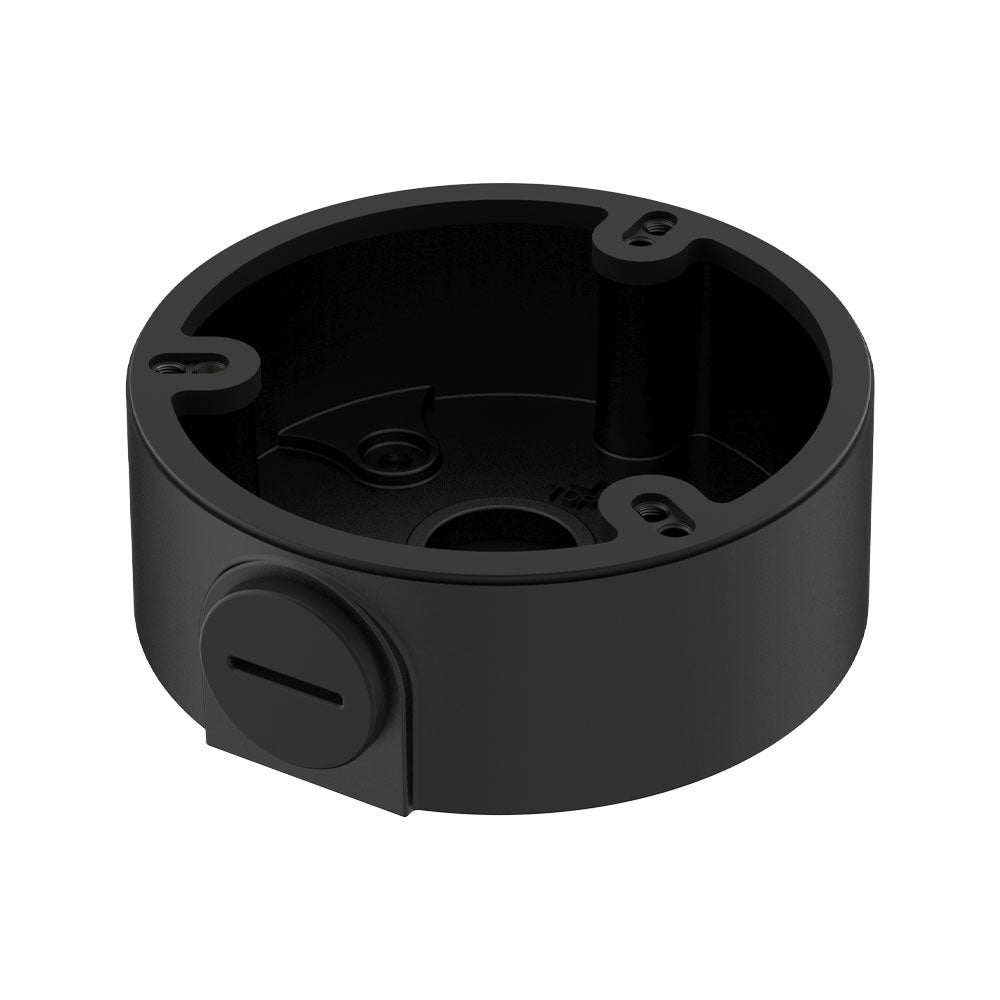

- Dahua junction box for camera mounting
- Made of aluminum alloy
- Maximum load of 1 kg (2.20 lb)
- G1/2 thread
- Allows cable management at the bottom and side outlets of the box
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Operating humidity less than 90% RH
- Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage humidity 10% to 90% RH
- Basic anti-corrosion protection
Physical characteristics
- Black color
- Junction mounting installation
- Dimensions Ø94.3 mm × 34.1 mm
- Packaging dimensions 115 mm × 45 mm × 115 mm (L × W × H)
- Net weight 0.15 kg (0.33 lb)
- Gross weight 0.21 kg (0.46 lb)
Contents
- Dahua junction box DAHUA-5174 (DH-PFA135-B-V2)
- 3 M4x10 screws
- 1 S3.0 wrench
- 3 ST4x25 screws
- 3 plastic expansion plugs
- 1 sealing gasket
