Technical Specifications

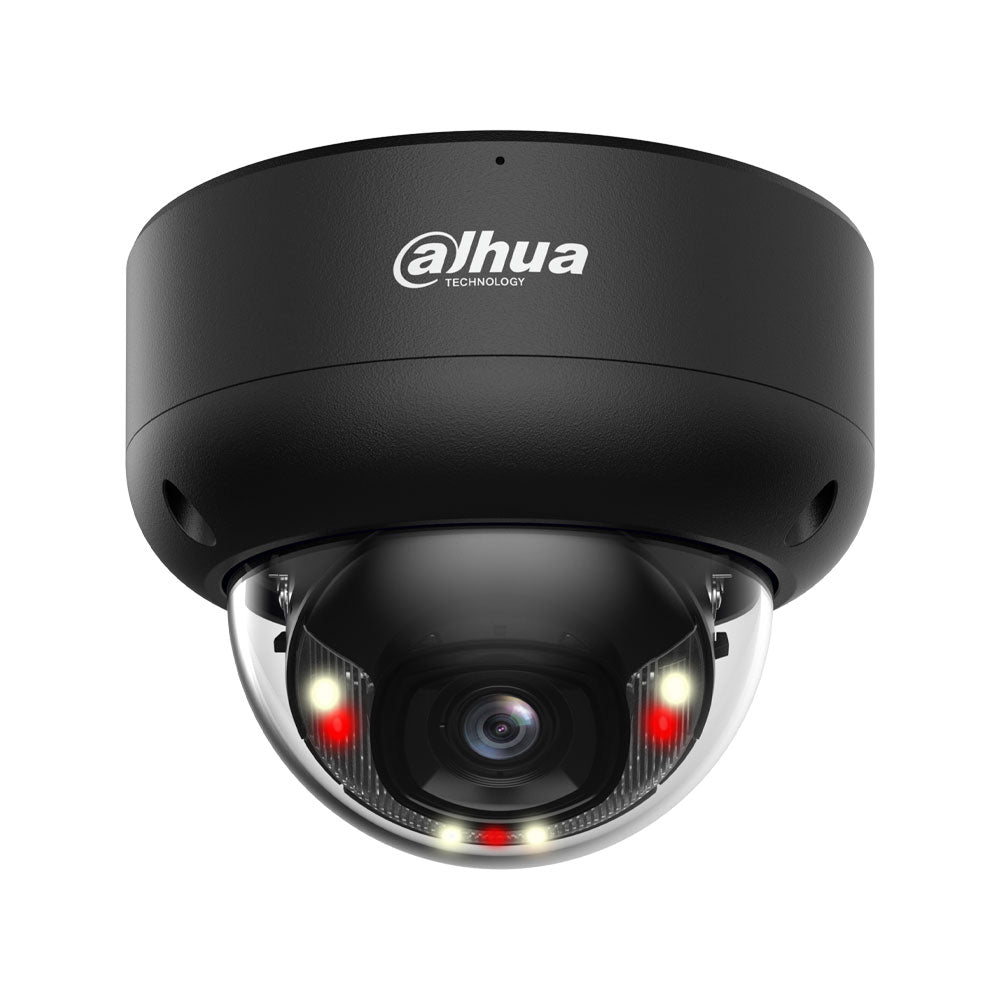

- Dahua WizSense 3 IP Dome
- 1/2.9" CMOS sensor
- Maximum resolution of 4M (2688×1520)
- Automatic day/night mode with ICR, color, and B/W
- Minimum illumination 0.005 lux at F1.4 color, 30 IRE
- Minimum illumination of 0.0005 lux at F1.4 in B/W, 30 IRE
- 0 lux with illuminator on
- IR illumination up to 40m
- Warm light illumination up to 40m
- Automatic and manual illumination control
- 3 IR LEDs and 4 warm lights
- 2.8mm fixed optics
- M12 mount
- Maximum aperture F1.4
- Viewing angle 100° horizontal, 56° vertical, and 117° diagonal
- Minimum focus distance of 1.0m
Video
- H.265, H.264, H.264H, H.264B, and MJPEG compression on the secondary stream
- AI H.265 and AI H.264
- Smart H.264+ and Smart H.265+
- Stream 1: 2688 × 1520 at 1~25/30 fps
- Stream 2: 1920 × 1080 at 1~25/30 fps
- Stream 3: 1920 × 1080 at 1~25/30 fps
- Resolutions 4M, 3M, 1080P, 720P, D1, VGA, and CIF
- VBR, CBR, and ABR bitrate control
- H.264 and H.265 bitrate from 3 kbps to 16384 kbps
Features
- BLC, HLC, WDR 120 dB
- Scene self-adaptation (SSA)
- Automatic, natural, street lamp, outdoor, manual, and custom regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Motion detection OFF/ON with 4 rectangular zones
- ROI with 4 zones
- Smart illumination
- Smart Dual Light
- Defog
- Image rotation 0°, 90°, 180°, and 270°
- Mirror
- Privacy with 8 zones
- LDC
- Digital watermark
Smart Functions
- Perimeter intrusion and tripwire protection with accurate vehicle and person classification
- Stillness detection
- Loitering detection
- SMD 4.0
- AcuPick for quick search of people and vehicles with backend devices
- AI SSA
- Face detection across the entire image
- Smart Search with Smart NVR for refined smart search, event extraction, and merging
Audio
- Built-in microphone
- PCM, G.711a, G.711Mu, G.726, and G.723 audio compression
- 1 audio input via RCA port
- 1 audio output via RCA port
Storage
- Micro SD up to 512GB (card not included)
- FTP
- SFTP
- NAS
Alarms
- 1 alarm input with wet contact, 5mA 3~5 VDC
- 1 alarm output with wet contact, 300mA 12 VDC
Network
- RJ-45 10/100 Base-T
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
- SDK and API
- ONVIF Profile S, Profile G, Profile T, and Profile M
- CGI
- 20 users with 64M total bandwidth
- IE11, Chrome, and Firefox browsers
- Smart PSS Lite, DSS, DMSS, and DoLynk Care Software
- iOS and Android mobile client
- Security Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation and import, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade, session security, and security warning
Power Supply
- 12 VDC and PoE 802.3af power supply
- Dual power backup
- Basic consumption of 3.2W at 12 VDC and 4.1W via PoE
- Maximum power consumption of 6W at 12 VDC and 7.1W via PoE with H.265, WDR, warm light, and intelligence enabled
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity up to 95% non-condensing
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity up to 95% non-condensing
- IP67 protection
- IK10 protection class
- Basic corrosion protection level
Physical Characteristics
- Metal material
- Ceiling, junction box, ceiling mount, wall, or vertical pole installation
- 3AXIS with horizontal adjustment from 0° to 355°, vertical adjustment from 0° to 75°, and rotation from 0° to 355°.
- Dimensions 89.1 mm × Φ111.7 mm
- Net weight 528g
- Gross weight 690g
Contents
- Dahua WizSense 3 IP Dome DAHUA-5170 (DH-IPC-HDBW3449EP-AS-IL-0280B-Black)
Certifications and Standards
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
