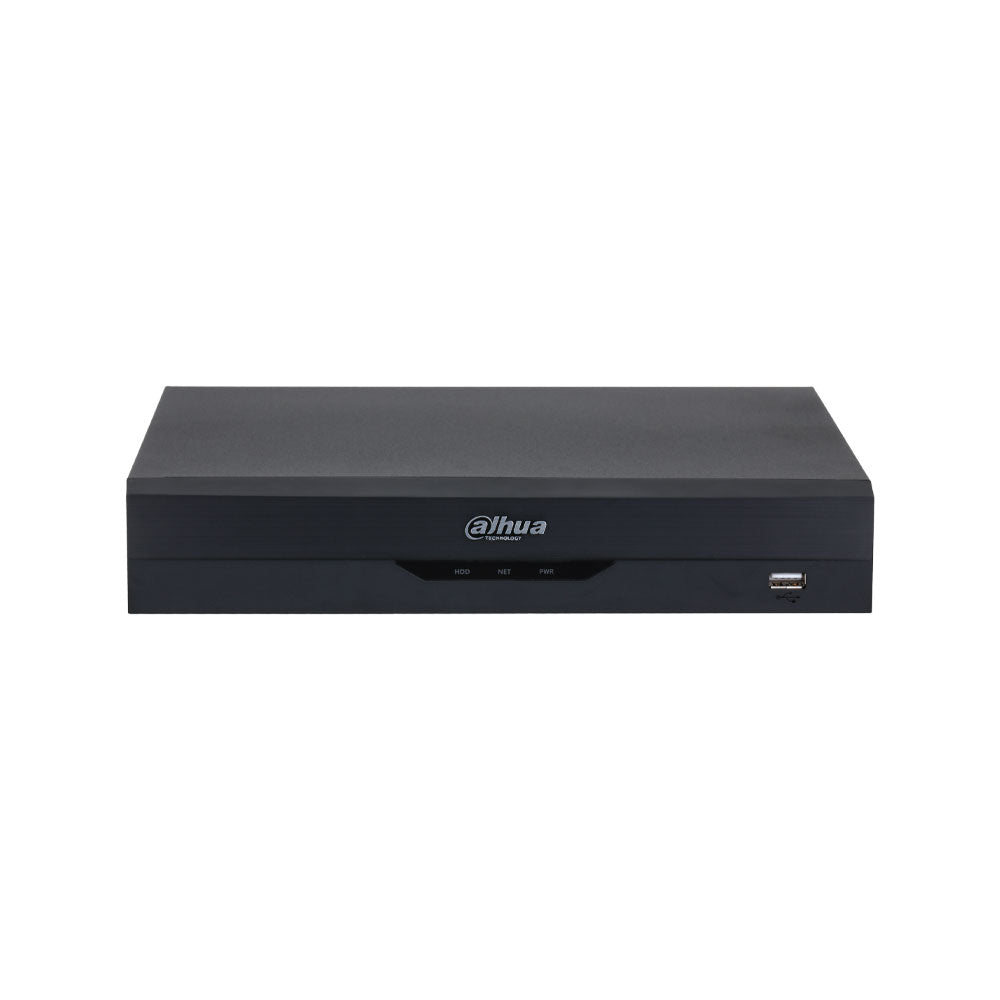

Name: Dahua WizSense XVR 5-in-1 4-Channel 5MP/1080P
Brand: Dahua
SKU: DAHUA-5169
Price: 187.96 EUR
Availability: InStock

Roll over image to zoom in Click on image to zoom

Dahua WizSense 5-in-1 4-channel XVR with HDCVI, TVI, AHD, CVBS and IP support
4 BNC inputs with automatic HDCVI/AHD/TVI/CVBS detection
Up to 6 IP channels with 2 native IP channels and 4 channels convertible from analog
Supports IP cameras up to 6 MP
32 Mbps incoming bandwidth, 32 Mbps recording bandwidth and 32 Mbps outgoing bandwidth
Industrial grade processor
Embedded Linux operating system
HDMI and VGA video outputs

4-channel BNC inputs and up to 6 IP inputs
CVI input resolutions: 5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080P@25/30 fps, 720P@50/60 fps and 720P@25/30 fps
TVI input resolutions: 5 MP (2560 × 1944)@20 fps, 5 MP (2960 × 1665)@20/25 fps, 4 MP@25/30 fps, 1080P@25/30 fps and 720P@25/30 fps
AHD input resolutions: 5 MP@20 fps, 4 MP@25/30 fps, 1080P@25/30 fps and 720P@25/30 fps
Encoding capacity with Encode Enhancement disabled: channels 1 and 2 up to 5M-N@25 fps and the rest up to 5M-N@12 fps
Encoding capacity with Encode Enhancement enabled: 4 channels 5M-N@25 fps, transformable to 5 MP@6 fps
D1/CIF@1-15 fps sub-stream
HDMI output: 1920 × 1080, 1280 × 1024 and 1280 × 720
VGA output: 1920 × 1080, 1280 × 1024 and 1280 × 720
1/4 multi-screen display in normal mode and 1/4/6 in extended IP mode
1/4 synchronized playback
AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 video codecs
Dual stream
Video bitrate from 32 kbps to 6144 kbps
Access to third-party cameras Panasonic, Sony, Hanwha, Axis, Arecont and ONVIF

2 channels with AcuPick from the recorder for analog channels
4 channels with perimeter protection from the recorder with 10 IVS rules per channel
2 channels with face detection from the recorder, with up to 8 face images per second on each channel
2 channels with face recognition from the recorder
6 facial attributes
Face database capacity of up to 10 databases with 10,000 images
4 channels with SMD Plus from the recorder with secondary filtering of people and vehicles
6 channels with SMD from the camera
4 channels with AI video quality analysis from the recorder
1 channel with scene change detection from the recorder

1 RCA audio input
4 audio channels via coaxial via BNC
1 RCA audio output
Two-way audio via coaxial on 4 BNC channels
Local and network two-way audio sharing the same audio input with the first channel
G.711a, G.711u and PCM audio compression
8 kHz, 16-bit audio sampling
64 kbps audio bitrate

General alarms for motion detection, alarm box, HDCVI alarm, external camera alarm, network alarm and PIR alarm
Alarms for missing disk anomaly, disk error, insufficient space, insufficient quota, network disconnection, IP conflict, MAC conflict, video loss, video tampering and offline camera.
Smart alarms by face detection, face recognition, perimeter protection and SMD Plus
Action linking with recording, panoramic snapshot, IPC external alarm output, audio, buzzer, log, presets and email.

1 RJ45 Ethernet 10/100 Mbps interface
Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, FTP, DDNS, SNMP, alarm server, P2P, automatic recording and IP search
Mobile access from iOS and Android
ONVIF 24.12 Profile T, Profile S and Profile G, CGI and SDK interoperability
Supported browsers Chrome, IE, Safari, Edge and Firefox

CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015 and EN 50130-4:2011+A1:2014

Dahua WizSense XVR 5-in-1 4-Channel 5MP/1080P
