Description
Technical characteristics
- 1/2.8 inch CMOS sensor
- Maximum resolution 1080P (1920×1080)
- Minimum illumination 0.002 lux at F1.5, 30 IRE, 0 lux with IR on
- Smart IR up to 60m
- Automatic lighting control
- 2 IR illuminators
- 2.7mm to 12mm motorized optic with autofocus
- φ14 mount
- Maximum aperture F1.5
- Diagonal viewing angle 38° to 123°
- Horizontal viewing angle from 33° to 102°
- Vertical viewing angle from 19° to 53°
- Minimum focus distance 0.5m
Video
- CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- TVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- CVBS: 960H
- Resolutions 1080P (1920×1080) and 960H (960×576/960×480)
- Switchable CVI, TVI, AHD and CVBS video output via BNC port
- Automatic day/night switching via ICR
Features
- BLC, HLC, true WDR 130 dB
- Automatic and area white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Smart illumination
- Super Adapt
- Mirror
- Privacy mask off/on with 8 rectangular zones
Audio
- 1-channel built-in microphone
- Coaxial audio
Communication interface
- 1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
- 12V DC ±30% power supply
- Maximum power consumption 6.4 W with IR on
Environment
- Operating temperature -30°C to +60°C (-30°C to +60°C)
- Storage temperature -30°C to +60°C (-30°F to +60°F)
- Operating humidity less than 95% non-condensing
- Storage humidity less than 95% non-condensing
- Protection degree IP67
Physical characteristics
- All-metal housing
- 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°
- Dimensions φ122 mm × 104.8 mm
- Net weight 0.58 kg
- Gross weight 0.74 kg
Contents

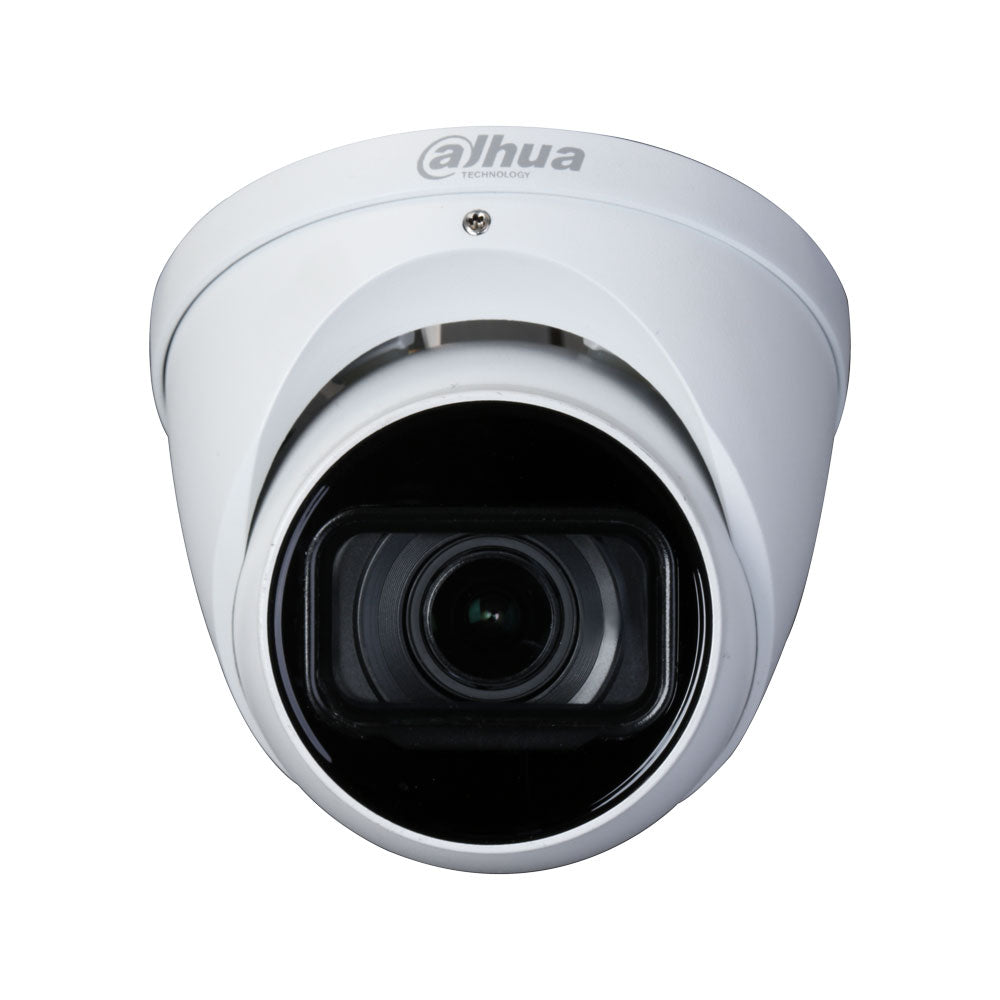

- Dahua Lite 4-in-1 dome DAHUA-5168 (DH-HAC-HDW1231TP-Z-A-2712)
Certifications and standards
- CE: EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
- FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
- UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
