Technical Specifications

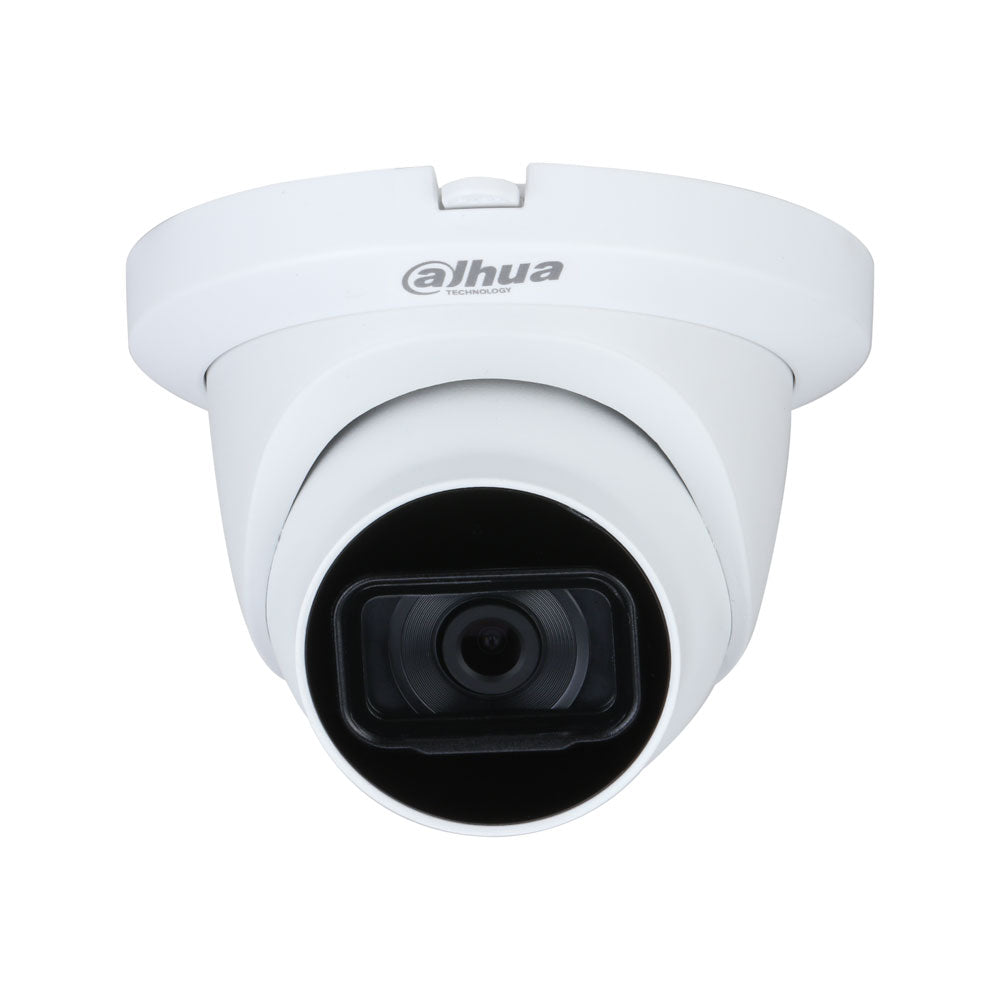

- Dahua Lite 4-in-1 quick installation dome
- 1/2.8" CMOS sensor
- Maximum resolution 1080P (1920×1080)
- Minimum illumination 0.002 lux at F1.6, 30 IRE
- 0 lux with IR on
- IR illumination up to 30 m
- Automatic and manual illumination control
- 1 IR illuminator
- 2.8 mm fixed lens
- M12 mount
- Maximum aperture F1.6
- 107° horizontal, 56° vertical, and 127° diagonal viewing angle
- Minimum focus distance 0.7 m
Video
- CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- TVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- CVBS: 960H
- Resolutions 1080P (1920×1080) and 960H (960×576/960×480)
- CVI, TVI, AHD, and CVBS switchable video output via BNC port
- Automatic day/night switching via ICR
Features
- BLC, WDR, and HLC
- 130 dB true WDR
- Automatic and regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Smart IR
- Super Adapt
- Mirror off/on
- Privacy mask Off/On with 8 rectangular zones
- Quick installation system to reduce installation time
Communication Interface
- 1 BNC port for CVI, TVI, AHD, and CVBS video output
Power Supply
- 12V DC ±30% power supply
- Maximum power consumption 3.1 W with IR on
Environment
- Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Operating humidity less than 95% non-condensing
- Storage humidity less than 95% non-condensing
- IP67 protection rating
Physical Characteristics
- Housing with metal dome, metal cover, and plastic decorative ring
- 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78°, and rotation from 0° to 360°
- Dimensions Φ109.9 mm × 88.1 mm
- Net weight 0.28 kg
- Gross weight 0.45 kg
Contents
- DAHUA-5166 4-in-1 quick installation dome (DH-HAC-HDW1231TLMQP-0280B)
Certifications and Standards
- CE: EN55032, EN55024, EN50130-4
- FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
- UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
