Description
Technical Specifications

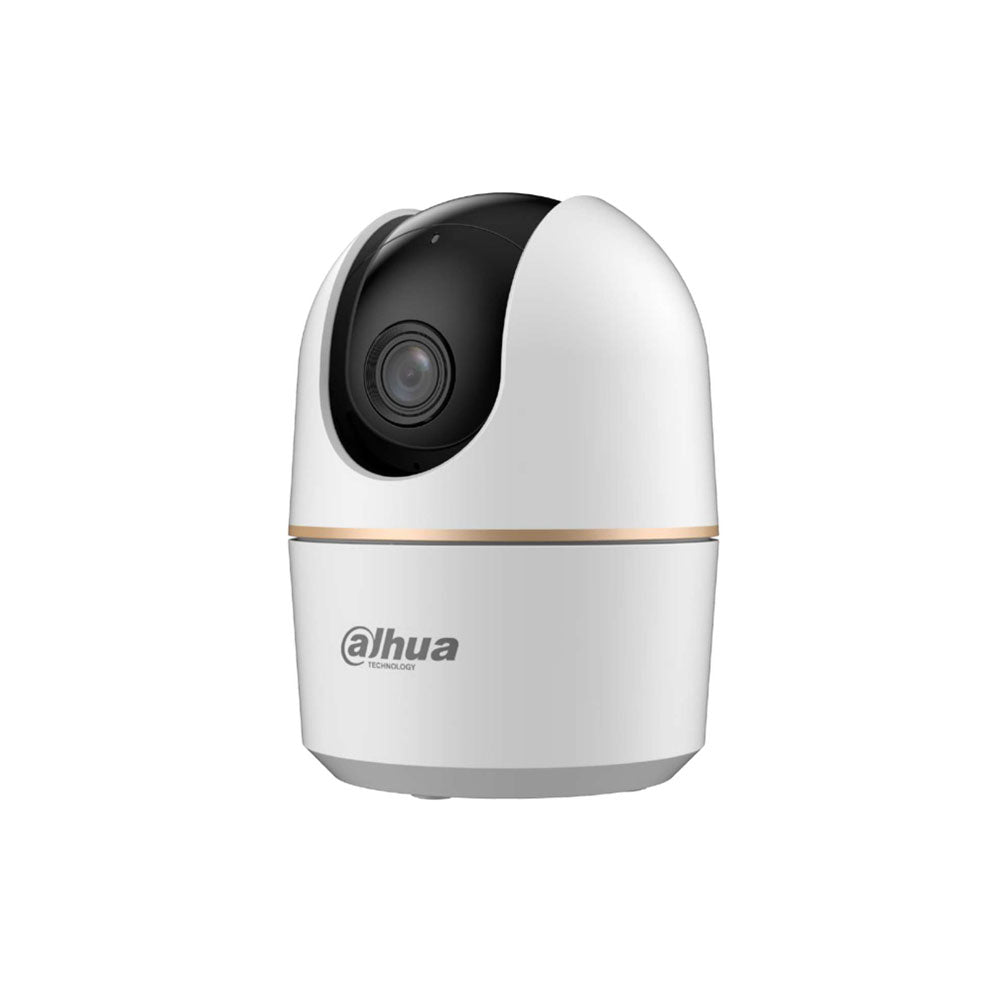

- Dahua Wireless Pan & Tilt WiFi IP Dome
- 1/3.2" CMOS sensor
- Maximum resolution of 3MP (2304×1296)
- IR illumination up to 10m
- Automatic lighting on/off control
- 2.8 mm fixed optics
- Maximum aperture F2.0
- 99° horizontal, 55° vertical and 117° diagonal viewing angle
Video
- H.265 compression
- Main stream: 2304 × 1296 at 1~15/25/30 fps
- Sub stream: 640 × 360 at 1~25/30 fps
- Resolution 3MP (2304 × 1296) and HD (640 × 360)
- H.265 video bitrate from 80 kbps to 4096 kbps
- Automatic Day/Night mode with ICR, color and B/W
Features
- Digital WDR
- Motion detection
- Image rotation of 0° and 180°
- One-click privacy mode
- Preset patrol
- Audible alarm in case of anomaly
Smart Features
- People detection
- Pet detection
- Auto tracking
Positioning
- Horizontal movement from 0° to 355°
- Vertical movement from -5° to 80°
- 360° visual coverage without blind spots
Audio
- Built-in microphone
- Built-in speaker
- G.711a audio compression
Storage
- MicroSD card slot up to 256GB (card not included)
Network
- RJ45 10/100 Base-T network port
- WiFi 6 IEEE 802.11b/g/n/ax 2.412~2.472 GHz and 2.4G/5.2G/5.3G/5.6G/5.8G MHz
- DMSS management software
- Mobile application for iOS and Android
- Bluetooth pairing
Power Supply
- 5V DC power supply
- USB-C port
- Basic power consumption of 1.6 W
- Maximum consumption 3.6 W live and 3.6 W with PT rotation
Environment
- Operating temperature -10°C to +45°C (14°F to 113°F)
- Operating humidity up to 95% non-condensing
Physical Characteristics
- Plastic material
- Tabletop installation
- Dimensions of Φ77.8 mm × 108.1 mm
- Net weight 195 g
Contents
- Pan & Tilt WiFi IP Dome DAHUA-5165 (DH-IPC-HPT1330DAP-STW-0280B-EUR)
- Installation bracket
- Hardware pack
- Power cable
- Quick Start Guide
- Legal and regulatory information
- QR code
- Power adapter
Certifications and Regulations
- CE
