Description
Technical Specifications

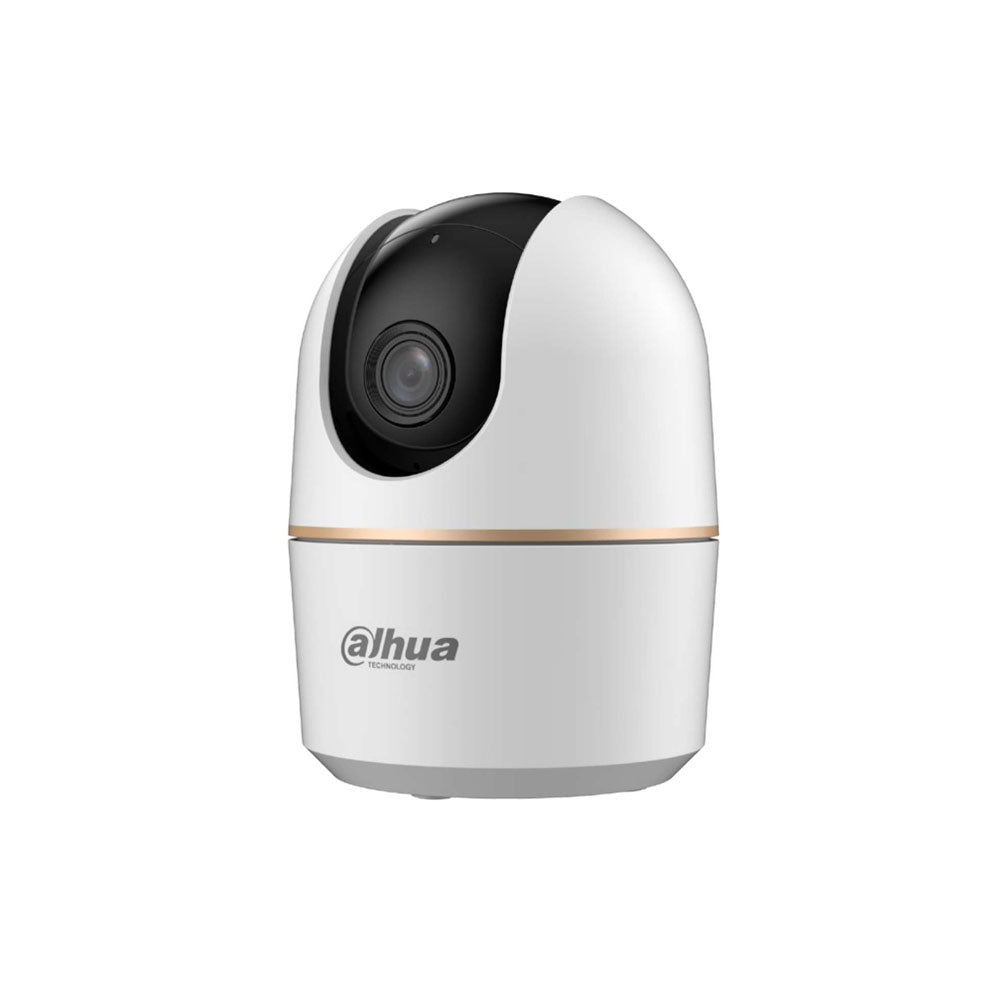

- Dahua Wireless Pan & Tilt WiFi IP Dome Camera
- 1/3" CMOS Sensor
- Max. Resolution 5MP (2880×1620)
- IR Illumination up to 10m
- Automatic lighting on/off control
- 2.8mm Fixed Lens
- Max. Aperture F2.0
- 99° Horizontal, 55° Vertical, and 115° Diagonal Angle of View
Video
- H.265 Compression
- Main Stream: 2880 × 1620 @ 1~15/25/30 fps
- Sub Stream: 640 × 360 @ 1~25/30 fps
- Resolution 5MP (2880 × 1620) and HD (640 × 360)
- H.265 Video Bit Rate from 80 kbps to 4096 kbps
- Automatic Day/Night Mode with ICR, Color and B/W
Features
- Digital WDR
- Motion Detection
- Image Rotation 0° and 180°
- One-click Privacy Mode
- Preset Patrol
- Audible alarm in case of anomaly
Smart Functions
- People Detection
- Pet Detection
- Auto Tracking
Positioning
- Horizontal Movement from 0° to 355°
- Vertical Movement from -5° to 80°
- 360° Visual Coverage with No Blind Spots
Audio
- Built-in Microphone
- Built-in Speaker
- G.711a Audio Compression
Storage
- MicroSD card slot up to 256GB (card not included)
Network
- RJ45 10/100 Base-T Network Port
- WiFi 6 IEEE 802.11b/g/n/ax 2.412~2.472 GHz and 2.4G/5.2G/5.3G/5.6G/5.8G MHz
- DMSS Management Software
- Mobile App for iOS and Android
- Bluetooth Pairing
Power Supply
- 5V DC Power Supply
- USB-C Port
- 1.9W Basic Power Consumption
- 4W Max. Power Consumption in live view and 4W with PT rotation
Environment
- Operating Temperature -10 °C to +45 °C (14 °F to 113 °F)
- Operating Humidity up to 95% non-condensing
Physical Characteristics
- Plastic Material
- Tabletop Installation
- Dimensions of Φ77.8 mm × 108.1 mm
- Net Weight 195 g
Contents
- DAHUA-5164 Pan & Tilt WiFi IP Dome Camera (DH-IPC-HPT1530DAP-STW-0280B-EUR)
- Mounting Bracket
- Hardware Pack
- Power Cable
- Quick Start Guide
- Legal and Regulatory Information
- Power Adapter
Certifications and Standards
- CE
