Technical Specifications

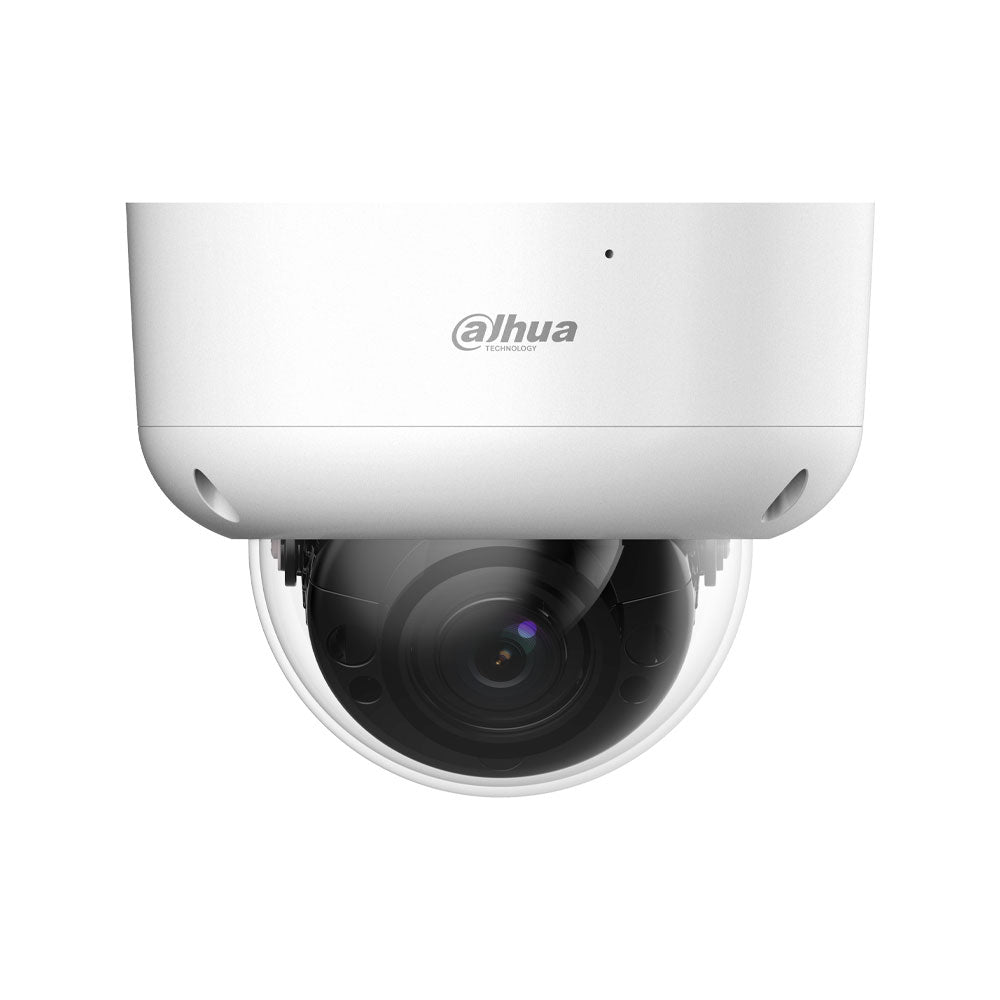

- Dahua Lite 4-in-1 Dome
- 1/2.8" CMOS sensor
- Max resolution 1080P (1920×1080)
- Progressive scan
- Electronic shutter PAL from 1/25s to 1/100,000s
- Electronic shutter NTSC 1/30s to 1/100,000s
- Minimum illumination 0.002 lux at F1.5, 30 IRE
- 0 lux with IR on
- Signal/noise ratio > 65 dB
- IR illumination up to 60m
- Automatic illuminator control
- 3 IR LEDs
- Motorized varifocal optics from 2.7 mm to 12 mm
- Autofocus
- φ14 mount
- Maximum aperture F1.5
- Diagonal viewing angle 38° to 123°
- Horizontal viewing angle 33° to 102°
- Vertical viewing angle 19° to 53°.
- Minimum focus distance 0.5m
- DORI at 2.7 mm: detection 47.6 m, observation 19.0 m, recognition 9.5 m and identification 4.76 m
- DORI at 12 mm: detection 132.1 m, observation 52.9 m, recognition 26.4 m and identification 13.2 m
Video
- CVI, TVI, AHD and CVBS output switchable via BNC port
- CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- TVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
- CVBS: 960H
- Resolutions 1080P (1920×1080) and 960H
- Automatic day/night mode with ICR
Features
- BLC, WDR and HLC
- 130 dB true WDR
- Automatic and zone white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Smart Illumination
- Super Adapt
- Mirror
- Privacy mask On/Off with 8 rectangular zones
Audio
- Built-in 1-channel microphone
- Coaxial audio transmission
Communication Interface
- 1 BNC port for switchable CVI, TVI, AHD and CVBS video output
Power Supply
- 12V DC ±30% power supply
- Maximum power consumption 8 W with IR on
Environment
- Operating temperature -30°C to +60°C (-30°F to +60°F)
- Operating humidity less than 95% non-condensing
- Storage temperature -30°C to +60°C (-22°F to 140°F)
- Storage humidity less than 95% non-condensing
- IP67 protection
- IK10 vandal protection
Physical Characteristics
- Metal casing
- 3AXIS with horizontal adjustment from 0° to 355°, vertical adjustment from 0° to 80° and rotation from 0° to 355°.
- Dimensions of φ126 mm × 100 mm
- Net weight 0.63 kg
- Gross weight 0.81 kg
Content
- DAHUA-5163 HDCVI Motorized Varifocal Mini-Dome Camera (DH-HAC-HDBW1231RAP-Z-A-2712)
Certifications and Standards
- CE: EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
- FCC: CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
- UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
