Description
Technical Features

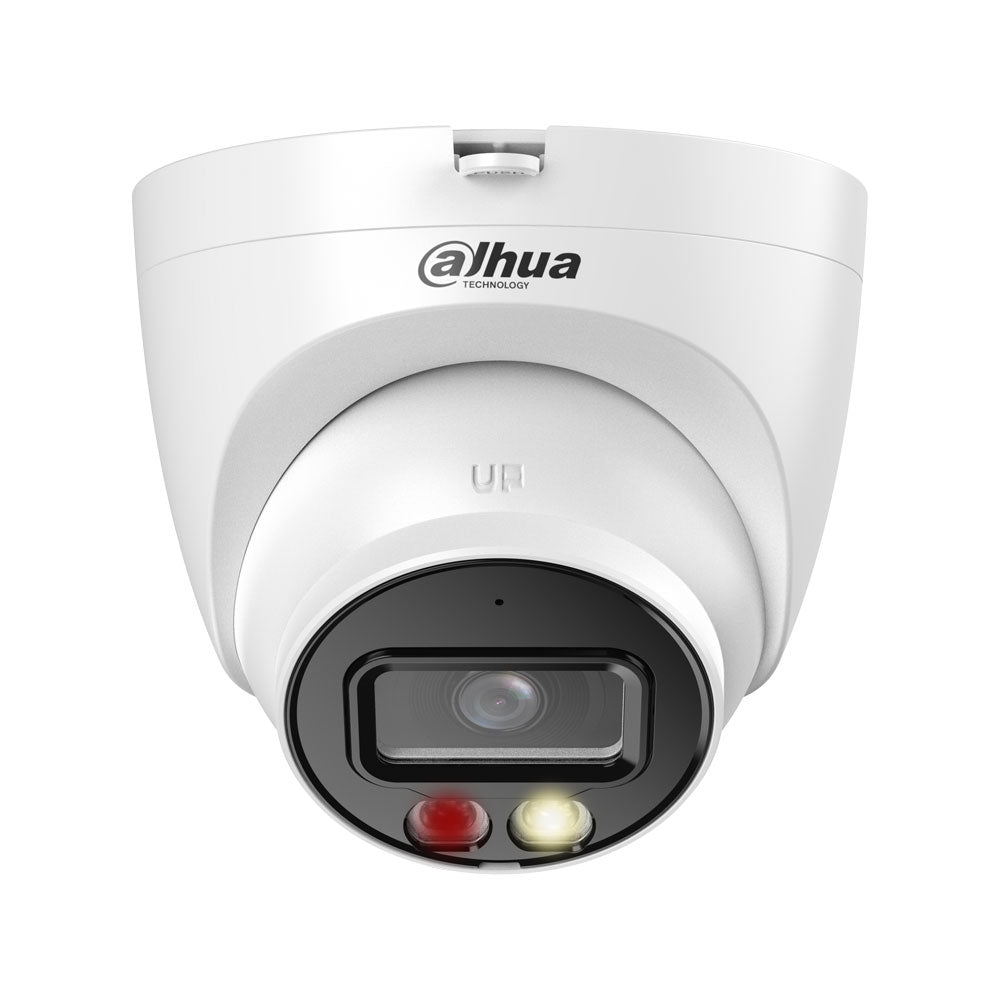

- Dahua WizSense IP Dome Camera
- 1/2.9" CMOS Sensor
- Maximum resolution of 4MP (2688×1520)
- Minimum illumination of 0.006 lux in color at F1.6 and 0.0006 lux in B/W at F1.6
- 0 lux with illuminator on
- IR illumination up to 30 m
- Warm light up to 30 m
- 1 IR LED and 1 warm light LED
- 2.8 mm fixed optics
- M12 Mount
- Maximum aperture F1.6
- Viewing angle 95° horizontally, 52° vertically and 114° diagonally
- Minimum focus distance of 0.9 m
Video
- H.264H, H.265, H.264, H.264B and MJPEG compression on sub-stream
- Smart H.265+ and Smart H.264+
- Stream 1: 4MP (2688×1520) at 1~20 fps / 3.6MP (2560×1440) at 1~25/30 fps
- Stream 2: D1 (704×576) at 1~25 fps / VGA/D1 NTSC (704×480) at 1~30 fps
- Supported resolutions: 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, VGA and CIF
- CBR and VBR bitrate control
- H.264 video bitrate from 32 kbps to 6144 kbps
- H.265 video bitrate from 12 kbps to 6144 kbps
- Automatic Day/Night mode with ICR, color and B/W
Features
- ROI with 4 zones
- WDR, BLC, HLC 120 dB
- 3D NR noise reduction
- Automatic, natural, street light, outdoor, manual, manual, and regional custom white balance
- Automatic and manual gain control
- Motion detection configurable in 4 rectangular zones
- Image rotation of 0°, 90°, 180° and 270°
- Mirror
- Privacy mask with 4 zones
- Digital watermark
- Smart Dual Light with automatic switching between infrared and warm light
Smart Functions
- IVS with intrusion and tripwire
- Accurate human and vehicle classification and detection in IVS
- SMD Plus
- Smart Search in combination with Smart NVR for intelligent search and event extraction
Audio
- Built-in microphone
- G.711a, G.711Mu, PCM and G.726 audio compression
Storage
- MicroSD card slot up to 256 GB (card not included)
- FTP storage
- SFTP storage
Alarms
- SD card absent, SD card full and SD card error
- Network disconnection and IP conflicts
- Illegal access and security exceptions
- Motion detection and video tampering events
- Tripwire, intrusion and SMD detection events
- Voltage detection event
Network
- RJ45 10/100 Base-T network interface
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP and P2P protocols
- ONVIF Profile S, Profile G and Profile T
- CGI
- SDK and API
- Up to 6 users
- 36M total bandwidth
- IE, Chrome and Firefox browsers
- DSS and DMSS management software
- Mobile application for iOS and Android
Power Supply
- 12V DC power supply
- 802.3af PoE
- Base consumption 2.1 W at 12V DC
- Base consumption of 2.5 W by PoE
- Maximum consumption of 4.4 W at 12V DC with H.265, intelligence, WDR and warm light
- Maximum consumption of 5.2 W by PoE with H.265, intelligence, WDR and warm light
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity up to 95%.
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- IP67 protection rating
Physical Characteristics
- Metal inner core and plastic cover
- Dimensions 100.9 mm × Φ109.9 mm
- Net weight 0.37 kg
- Gross weight 0.51 kg
- 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°.
Contents
- Smart Dual Light IP Dome DAHUA-5159 (DH-IPC-HDW2449TP-S-IL-0280B)
Certifications and Standards
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
