Technical Specifications
- Dahua WizSense 3 IP Camera
- 1/1.8" CMOS sensor
- Maximum resolution of 8MP (3840 × 2160)
- Automatic day/night mode (ICR), color, and black and white
- Minimum illumination of 0.0006 lux in color and 0.0003 lux in black and white at F1.2
- 0 lux with illuminator on
- Multi-core illumination with 4 IR illuminators and warm light
- Illumination range up to 60m in IR and up to 60m in warm light
- Illuminator control in automatic, manual, and Zoomprio mode
- Motorized varifocal optics from 2.7 mm to 12 mm
- φ16 lens mount
- Maximum aperture F1.2
- Horizontal field of view 112° to 48°, vertical 58° to 27°, and diagonal 137° to 55°
- Fixed iris control
- Minimum focus distance of 1.75m at wide-angle and 5.21m at telephoto
Video
- Substream compression H.265, H.264, H.264H, H.264B, and MJPEG
- AI H.265 and AI H.264 with Smart H.265+ and Smart H.264 encoding
- 3 video streams
- Resolutions 8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728), 4M (2688 × 1520 / 2560 × 1440), 3M (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), and CIF (352 × 288 / 352 × 240)
- Stream 1: 3840 × 2160 @ 1-25/30 fps
- Stream 2: 1920 × 1080 @ 1-25/30 fps
- Stream 3: 1920 × 1080 @ 1-25/30 fps
- VBR, CBR, and ABR bitrate control
- H.264 bitrate 3 kbps @ 16384 kbps
- H.265 bitrate 3 kbps to 16384 kbps
Features
- BLC, HLC, WDR 120 dB
- SSA with automatic scene adaptation
- Automatic white balance, natural, street light, outdoor, manual, manual, and custom by region
- Automatic and manual gain control
- 3D NR noise reduction
- Motion detection in 4 rectangular zones
- ROI in 4 zones
- EIS electronic image stabilization
- Smart illumination
- Smart Dual Light
- Defog
- Image rotation 0°, 90°, 180°, and 270°
- Mirror function
- Privacy masks in 8 zones
- Digital watermark
- One-touch arming and disarming
- Acoustic and light alarm with red and blue lights
- Custom voice import
- WizColor technology
- Xinghan large-scale AI models vision
Smart Features
- Perimeter protection for intrusion, line crossing, loitering, and wandering
- Accurate classification and detection of person and vehicle intrusions and line crossings
- SMD 4.0
- Face detection across the entire image with capture, optimization, face enhancement, angle filtering, and snapshot strategies
- Smart Search with Smart NVR for refined smart search, event extraction and merging
- AcuPick for accurate person and vehicle search with compatible backend devices
- AI SSA for adjusting image parameters based on scene conditions
Audio
- Built-in dual microphone
- 1-channel built-in speaker
- Maximum speaker power of 2W
- Maximum sound level at 10cm of 110 dB
- 1 audio input via RCA port
- 1 audio output via RCA port
- Two-way audio
- Audio compression PCM, G.711a, G.711Mu, G.726, and G.723
Storage
- MicroSD card slot up to 512GB (card not included)
- FTP, SFTP, and NAS storage
Alarms
- 1 wet alarm input 5mA @ 3-5VDC
- 1 dry contact alarm output 1000mA @ 30VDC / 500mA @ 50VAC
- Alarms for SD card missing, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, line crossing, intrusion, loitering, wandering, face detection, scene change, audio detection, voltage detection, blur, SMD, and security exception
Network
- RJ-45 (10/100/1000 Base-T) network interface
- SDK and API
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, and Auto Registration
- ONVIF Profile S, Profile G, Profile T, and Profile M, and CGI support
- Up to 20 users with total bandwidth of 64M
- IE11, Chrome, and Firefox browsers
- Smart PSS Lite, DSS, DMSS, DMSS, and DoLynk management software
- iOS and Android mobile client
- Security Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation and import, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, and Trusted upgrade
Power Supply
- 12VDC and PoE+ (802.3at) power supply
- Dual power backup
- Basic power consumption 4.1W @ 12VDC and 6.5W in PoE
- Maximum consumption of 14.5W @ 12VDC and 18.3W in PoE with H.265, WDR, warm light, siren, active light deterrence, and intelligence
Environment
- Operating temperature -30°C to +60°C (-22°F to 140°F)
- Operating humidity up to 95% non-condensing
- Storage temperature -40°C to +60°C (-40°C to +60°C)
- Storage humidity up to 95% non-condensing
- IP67 protection
Physical Characteristics
- Metal and plastic housing
- Dimensions: 288.4mm × 94.4mm × 84.7mm
- Net weight: 1.00 kg
- Gross weight: 1.30 kg
- Ceiling, wall, or vertical pole installation with accessories
- Mechanical adjustment with pan 0° to 360°, tilt 0° to 90°, and rotation 0° to 360°
Contents

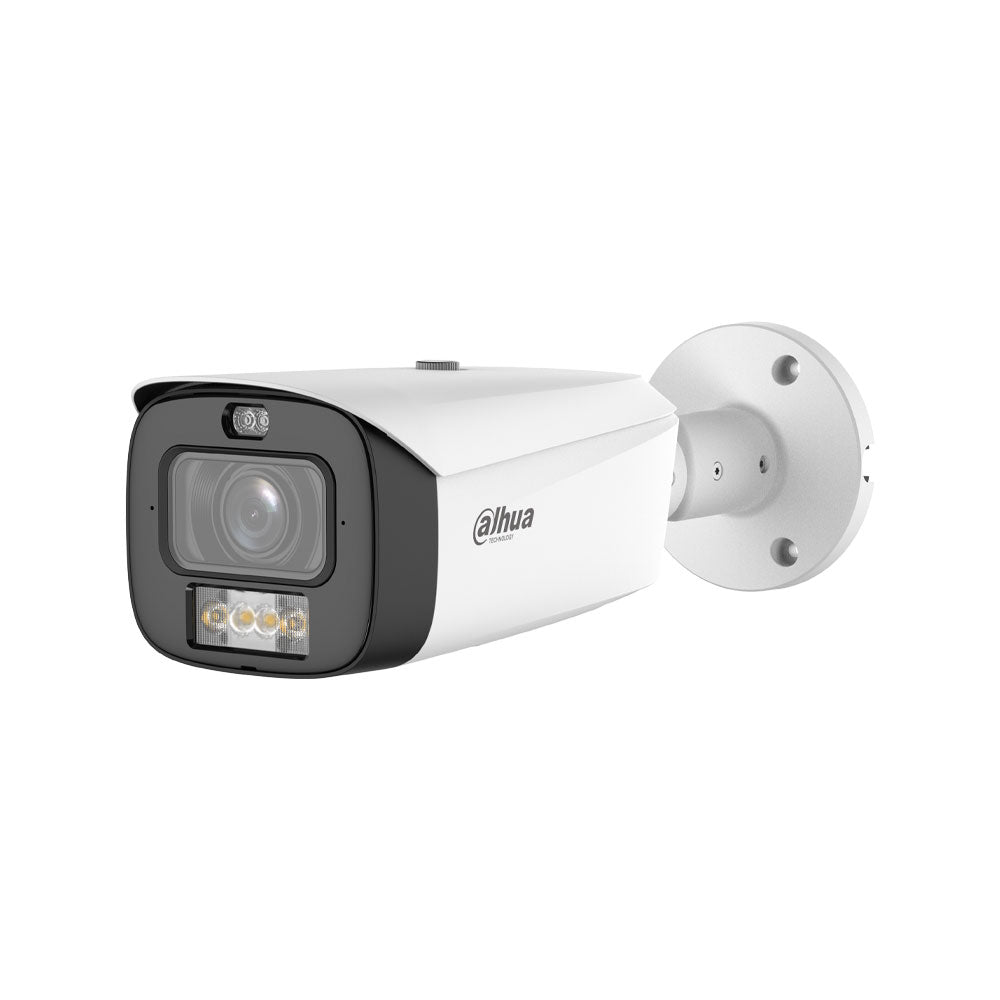

- Dahua DAHUA-5155 TiOC PRO IP Bullet Camera (DH-IPC-HFW3849T1P-ZAS-PV-2712-PRO)
Certifications and Standards
- CE-LVD: EN 62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
