Description
Technical Specifications

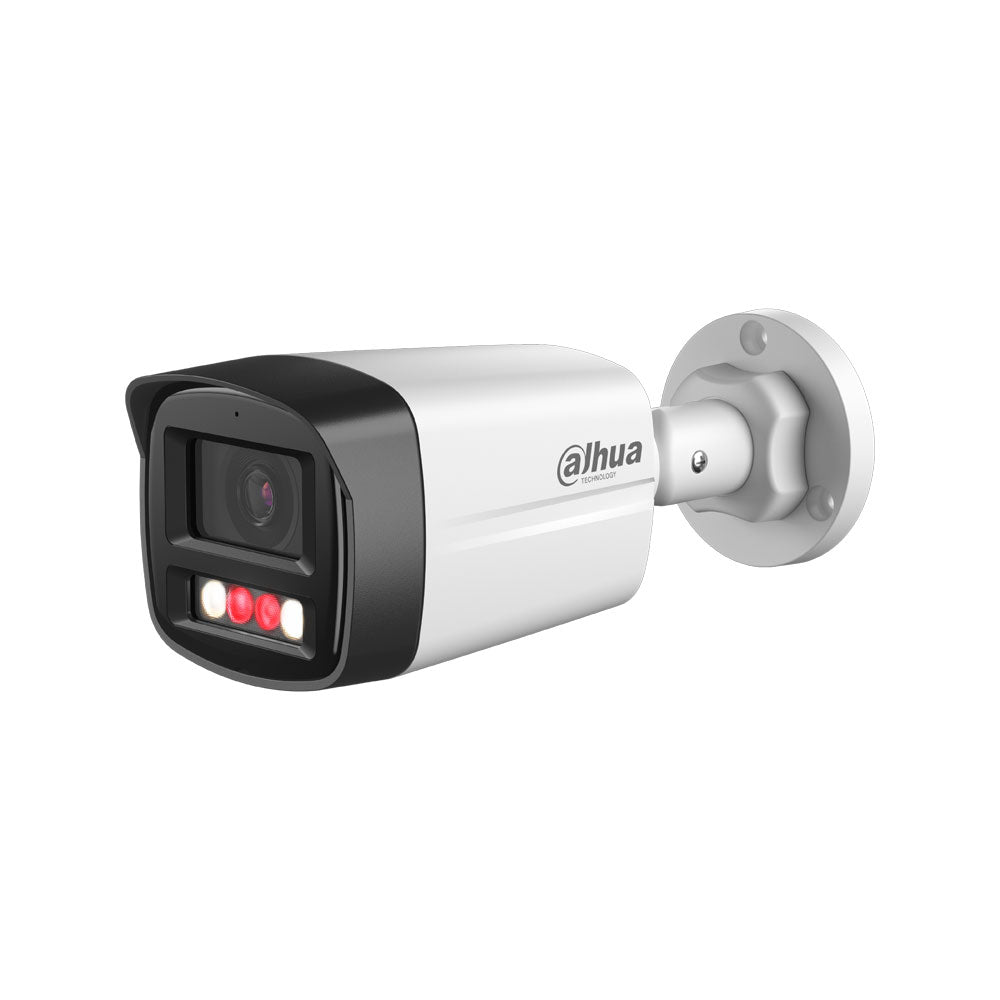

- Dahua Entry Series Smart Dual Light IP Camera
- 1/2.9" 4 MP CMOS sensor with a maximum resolution of 2560 x 1440
- Minimum illumination of 0.006 lux in color at F1.6, 0.0006 lux in B/W at F1.6, and 0 lux with illuminator on
- Built-in IR illumination up to 50 m range
- Warm illumination up to 50 m range
- 2 IR LEDs and 2 warm light LEDs
- 2.8 mm fixed optics
- M12 mount
- F1.6 aperture
- Horizontal viewing angle of 94°, vertical of 52°, and diagonal of 111°
- Fixed iris control
- Minimum focusing distance of 1.1 m
Video
- H.265, H.264, H.264H, H.264B, and MJPEG compression on the secondary stream
- Smart Codec Smart H.265+ and Smart H.264+
- 2 simultaneous streams
- Stream 1: 4MP (2560 x 1440) at 25/30 fps
- Stream 2: D1 (704 x 576) at 25 fps / D1 (704 x 480) at 30 fps
- Resolutions 4MP (2560 x 1440), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1, VGA, and CIF
- CBR and VBR bitrate control
- H.264 bitrate from 32 kbps to 4096 kbps
- H.265 bitrate from 12 kbps to 4096 kbps
- Auto day/night (ICR), color, and B/W mode
Functions
- BLC, HLC, and 120 dB WDR
- Automatic, natural, street light, outdoor, manual, and custom regional white balance
- Automatic and manual gain control
- 3D NR noise reduction
- Motion detection configurable in 4 rectangular zones
- ROI in 4 zones
- Smart illumination
- Image rotation from 0° to 180°
- Mirror
- Privacy mask in 4 zones
- Digital watermark
Smart Features
- SMD Plus
- Smart Search with smart NVR for refined search, event extraction, and merging
Audio
- Built-in microphone
- G.711a, G.711Mu, PCM, and G.726 audio compression
Storage
- FTP storage
Alarms
- Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, human SMD, and security exception alarms.
Network
- RJ45 10/100 Base-T interface
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, and P2P
- Supports ONVIF S, ONVIF T, and CGI profiles
- SDK and API
- Up to 6 users
- IE, Chrome, and Firefox browsers
- Smart PSS Lite, DSS, and DMSS management software
- Mobile application for iOS and Android
- Security features Digest, security logs, HTTPS, Trusted upgrade, WSSE, Trusted boot, account lockout, X.509 certificate generation and import, video encryption
Power Supply
- 12 V DC and PoE (802.3af)
- Base power consumption 2 W at 12 V DC and 2.9 W via PoE
- Maximum consumption of 6.4 W at 12 V DC and 7.7 W via PoE
- Input voltage tolerance of ±30%
Environment
- Operating temperature -40°C to +60°C (-40°F to +60°F)
- Operating humidity up to 95% operating humidity
- Storage temperature -40°C to +60°C (-40°C to +60°C)
- Storage humidity up to 95%.
- IP67 protection
Physical Characteristics
- Metal and plastic casing
- 3AXIS: 0°~360° (PAN), 0°~90° (TILT), 0°~360° (Rotation)
- Dimensions: 197.9 x 80.2 x 76.2 mm
- Net weight: 0.31 kg
- Gross weight: 0.45 kg
Contents
- Dahua Entry Series Smart Dual Light IP Camera DAHUA-5144 (DH-IPC-HFW1439TL1P-A-IL-0280B-S6-QH)
Certifications and Standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
