Description
Technical Specifications

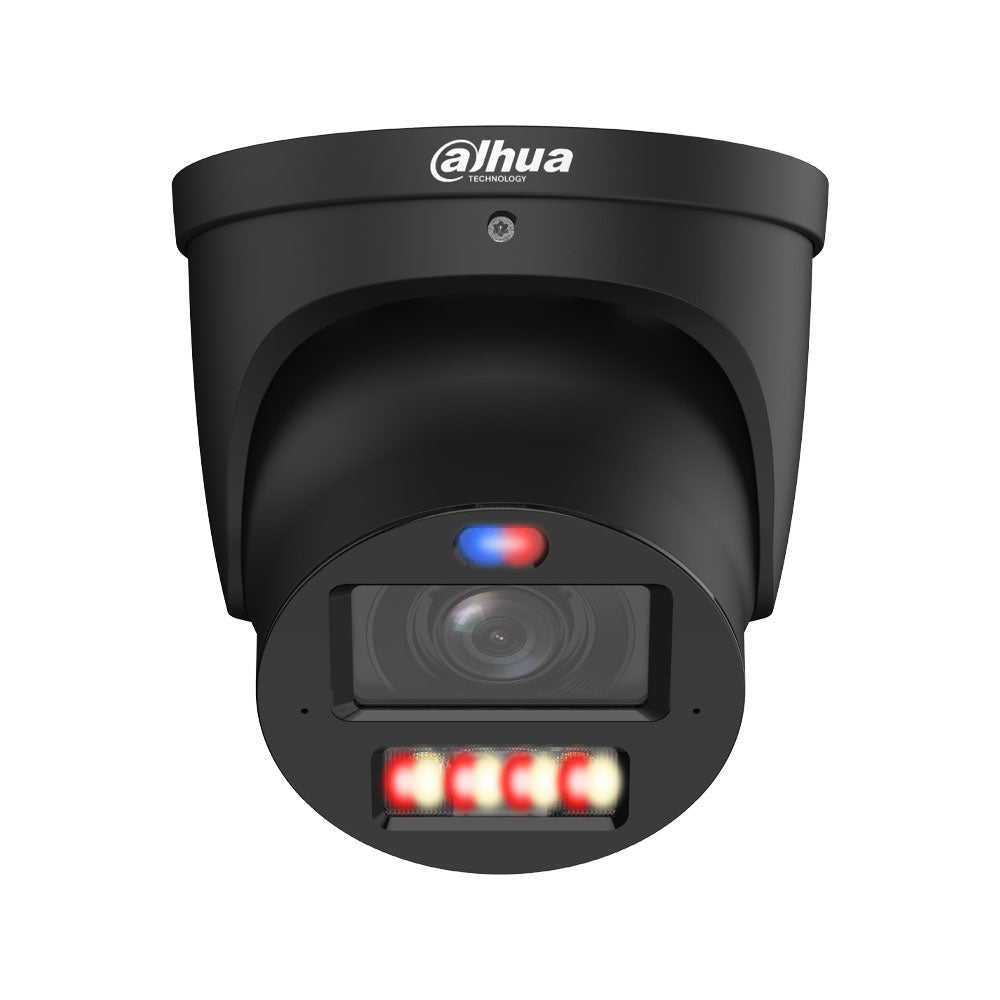

- Dahua WizSense TiOC PRO WizColor IP Dome DAHUA-5133 (DH-IPC-HDW3849HP-ZAS-PV-2712-PRO-Black)
- 1/1.8 CMOS sensor
- Maximum resolution of 8MP (3840x2160)
- Minimum illumination 0.0006 lux in color, 0.0003 lux in B/W, and 0 lux when illuminator is activated
- Motorized varifocal optics 2.7~12 mm
- φ16 mount
- Maximum aperture F1.2
- Viewing angle 112°~48° horizontal, 58°~27° vertical, 137°~55° diagonal
Video
- Video compression H.265, H.264, H.264H, and H.264B, and MJPEG on substream
- Smart H.265+ and Smart H.264+ compression
- AI H.265 and AI H.264
- 3 video streams
- Stream 1: 8M (3840x2160)@25/30 fps
- Stream 2: 1080P (1920x1080)@25/30 fps
- Stream 3: 1080P (1920x1080)@25/30 fps
- Resolutions 8M, 6M, 5M, 4M, 3M, 1080P, 720P, D1, VGA, and CIF
- CBR, VBR, and ABR bitrate control
- Video bitrate from 3 kbps to 16384 kbps in H.264 and H.265
- Auto ICR day/night, color, and B/W mode
Features
- WizColor
- TiOC PRO with sound and light alarm with red and blue lights
- Smart Dual Light
- WDR 120 dB
- 3D NR
- HLC, BLC
- Digital Watermark
- Automatic white balance, natural, street light, outdoor, manual, and customized regional
- Automatic gain control
- Motion detection in 4 rectangular zones
- ROI in 4 zones
- EIS electronic image stabilization
- Smart illumination
- Defog
- Image rotation 0°, 90°, 180°, and 270°
- Mirror
- Privacy with 8 masks
- One-touch arming and disarming
Smart Functions
- Perimeter protection with intrusion and line crossing with human and vehicle classification
- Loitering detection
- Face detection across the entire image
- SMD 4.0
- AcuPick
- AI SSA
- Smart search in combination with Smart NVR for video event extraction and merging
Audio
- Built-in dual microphone
- Built-in speaker
- Two-way audio
- 1 audio input via RCA port
- 1 audio output via RCA port
- Audio compression PCM, G.711a, G.711Mu, G.726, and G.723
- Maximum speaker power: 2W
- Maximum sound level 110 dB at 10 cm
Storage
- MicroSD card slot up to 512GB (card not included)
- FTP, SFTP, and NAS storage
Alarms
- 1 alarm input with 5mA wet contact at 3~5V DC
- 1 alarm output with 1000mA dry contact at 30V DC or 500mA at 50V AC
- Events for missing SD card, full SD card, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, line crossing, intrusion, loitering, face detection, scene change, audio detection, voltage detection, blur, SMD, and security exception.
Network
- 1 RJ45 10/100/1000 Base-T network interface
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, and Auto Registration
- ONVIF Profile S, G, T, and M, and CGI interoperability
- SDK and API
- Up to 20 users with a total bandwidth of 64M
- IE11, Chrome, and Firefox browsers
- Smart PSS Lite, DSS, DMSS, and DoLynk Care software
- iOS and Android mobile client
- Security functions with Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation and import, Syslog, HTTPS, 802.1x, secure boot, secure execution, and secure upgrade.
Power Supply
- 12V DC power supply
- PoE+ 802.3at
- Dual redundant power supply
- Basic consumption of 4.1W at 12V DC and 5.3W via PoE
- Maximum power consumption of 11.3W at 12V DC and 13.8W via PoE with H.265, WDR, warm light, sound and light alarm, and intelligence activated
Environment
- Operating temperature -30°C to +60°C (-22°F to 140°F)
- Operating humidity up to 95%
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity up to 95% non-condensing
- IP67 protection
Physical Characteristics
- Metal material
- 3AXIS: pan 0°~360°, tilt 0°~78°, rotation 0°~360°
- Dimensions 127.6 mm x Φ122.0 mm
- Net weight 0.94 kg
- Gross weight 1.17 kg
Contents
- Dahua WizSense TiOC PRO WizColor IP Dome DAHUA-5133 (DH-IPC-HDW3849HP-ZAS-PV-2712-PRO-Black)
Certifications and Regulations
- CE-LVD EN 62368-1
- CE-EMC 2014/30/EU
