Description
Technical features

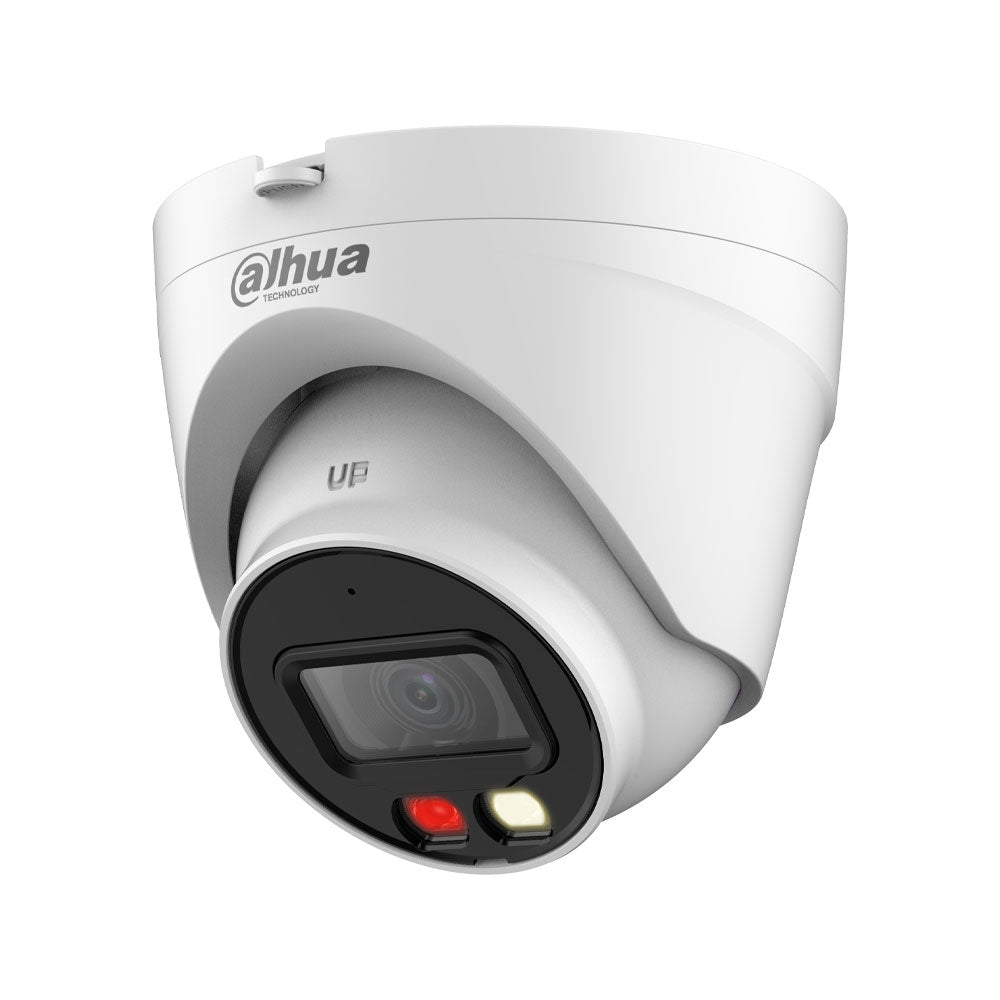

- Dahua Entry Series IP Dome with Smart Dual Light DAHUA-5130 (DH-IPC-HDW1439VP-A-IL-0280B-S6-QH)
- 1/2.9" CMOS sensor
- Maximum resolution of 4MP (2560x1440)
- Minimum illumination 0.006 lux in color, 0.0006 lux in B/W and 0 lux when the illuminator is on
- Signal to noise ratio greater than 56 dB
- 2.8mm fixed optics
- Maximum aperture F1.6
- Viewing angle 94°(H), 52°(V), 111°(D)
- Minimum focus distance of 1.1 m
Video
- H.265, H.264, H.264H, H.264B and MJPEG video compression on the secondary stream
- Smart H.265+ and Smart H.264+ intelligent compression
- 2 video streams
- Stream 1: 4M (2560x1440)@25/30 fps
- Stream 2: D1 (704x576)@25 fps / D1 (704x480)@30 fps
- Resolutions 4M (2560x1440), 3M (2304x1296), 1080P (1920x1080), 1.3M (1280x960), 720P (1280x720), D1, VGA and CIF
- CBR and VBR bitrate control
- Video bitrate from 32 kbps to 4096 kbps in H.264 and from 12 kbps to 4096 kbps in H.265
- Auto day/night ICR, color and B/W mode
Features
- Smart Dual Light
- WDR 120 dB
- 3D NR
- BLC, HLC
- Digital Watermark
- Auto, Natural, Street Light, Outdoor, Manual and Custom Region white balance
- Automatic and manual gain control
- Motion detection in 4 rectangular zones
- ROI in 4 zones
- Smart illumination
- Image rotation 0° and 180°
- Mirror
- Privacy via 4 masks
Smart features
- SMD Plus
- Smart search in combination with Smart NVR for video event extraction and merging
Audio
- Built-in microphone
- G.711a, G.711Mu, PCM and G.726 audio compression
Network
- 1 RJ45 10/100 Base-T network interface
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP and P2P protocols
- ONVIF Profile S and Profile T, and CGI interoperability
- SDK and API
- Up to 6 users with a total bandwidth of 24M
- IE, Chrome and Firefox browsers
- Smart PSS Lite, DSS and DMSS software
- iOS and Android mobile client
- Security functions with Digest, security logs, HTTPS, secure upgrade, WSSE, secure boot, account lock, X.509 certificate generation and import, and video encryption
Power supply
- 12 V DC power supply
- 802.3af PoE
- Input tolerance up to ±30%.
- Base power consumption of 2W at 12V DC and 2.9W via PoE
- Maximum consumption of 4.6W at 12V DC and 5.7W via PoE with H.265, intelligence, WDR and illuminator activated.
Environment
- Operating temperature -40°C to +60°C (-40°F to +40°F)
- Operating humidity up to 95%.
- Storage temperature -40°C to +60°C (-40°F to +60°F)
- Storage humidity up to 95%.
- IP67 protection
Physical characteristics
- Inner core made of metal and plastic
- Plastic casing
- 3AXIS: pan 0°~360°, tilt 0°~78°, rotation 0°~360°
- Dimensions Ø100.9 mm x 109.9 mm
- Net weight 0.33 kg
- Gross weight 0.45 kg
Contents
- Dahua Entry Series IP Dome with Smart Dual Light DAHUA-5130 (DH-IPC-HDW1439VP-A-IL-0280B-S6-QH)
Certifications and standards
- CE-LVD EN62368-1
- CE-EMC 2014/30/EU
